1000 Series - Weather Station Installation

1000 Series - Weather Station Installation

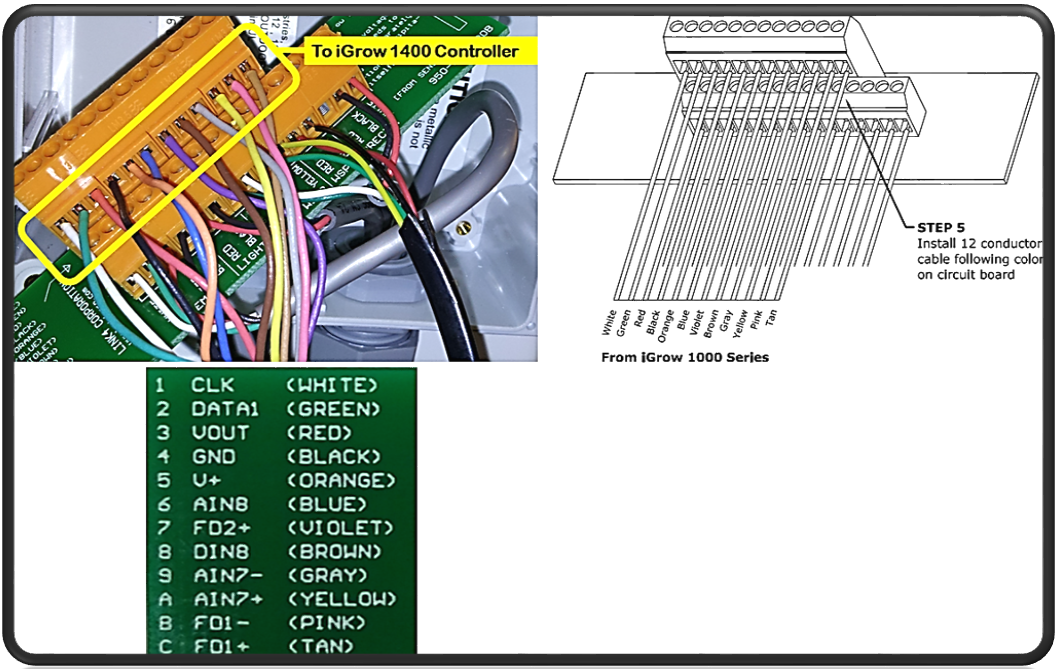

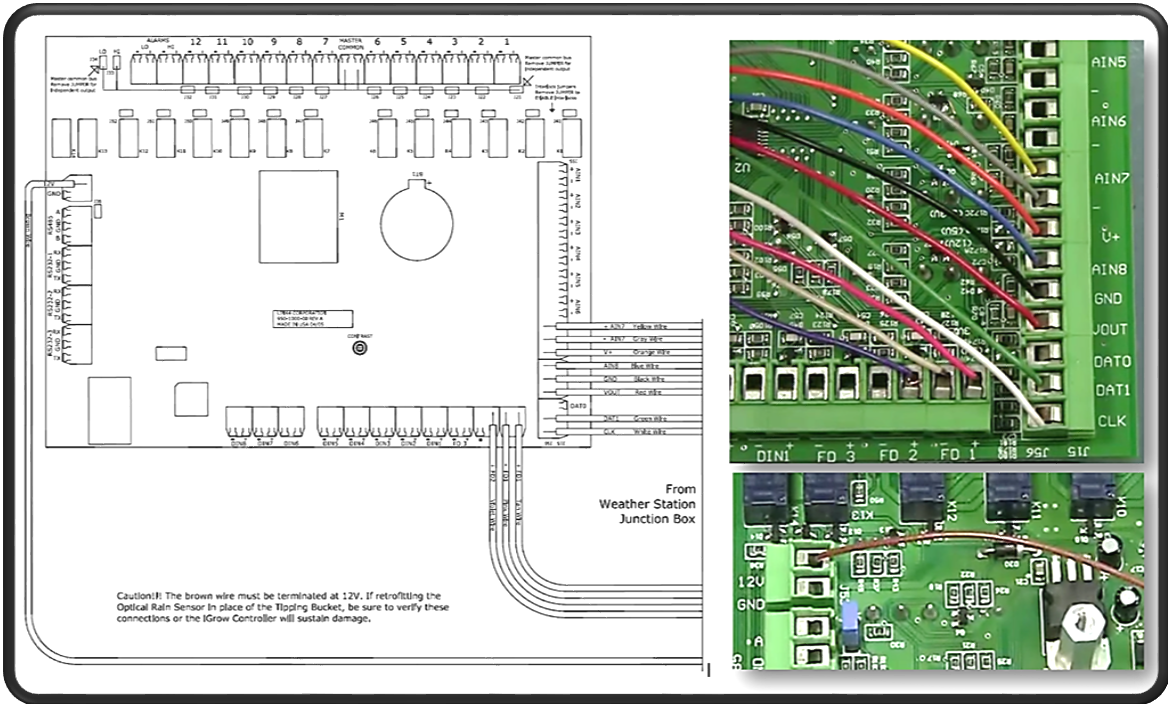

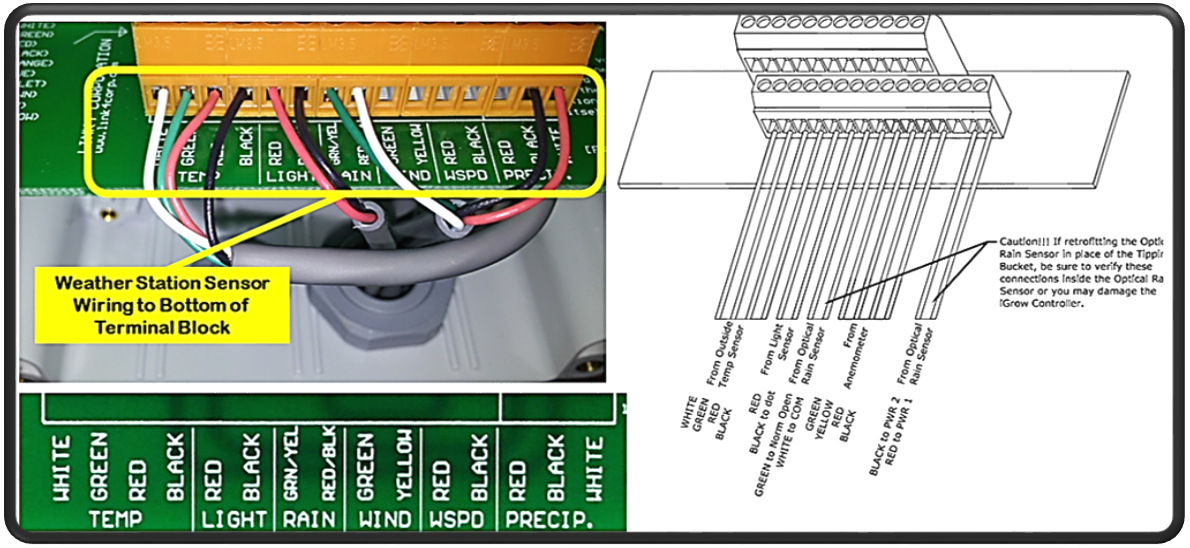

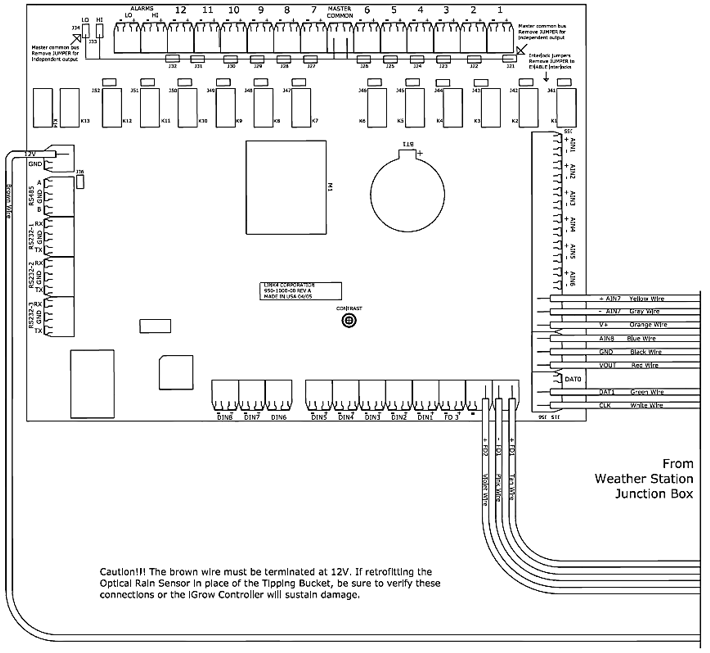

Here is information for wiring up your weather station to the iGrow1000 Series Site Master Controller

View the following link before installing your weather station. Attached is information as well.
