iGrow 800 - Weather Station Installation

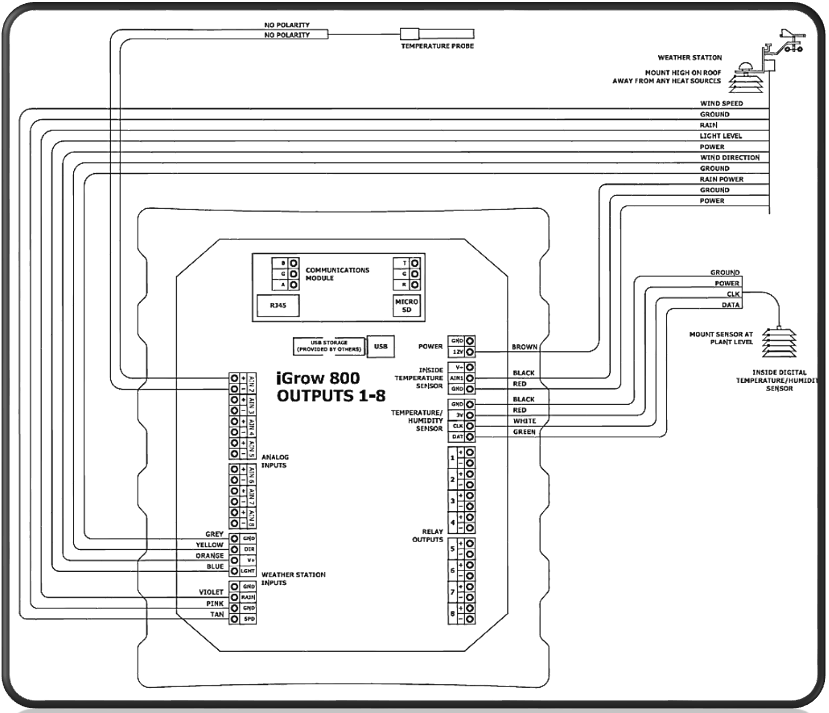

Here is information for wiring up your weather station to the iGrow100 Series Broadcast Controller
View the following link before installing your weather station, attached is information as well.

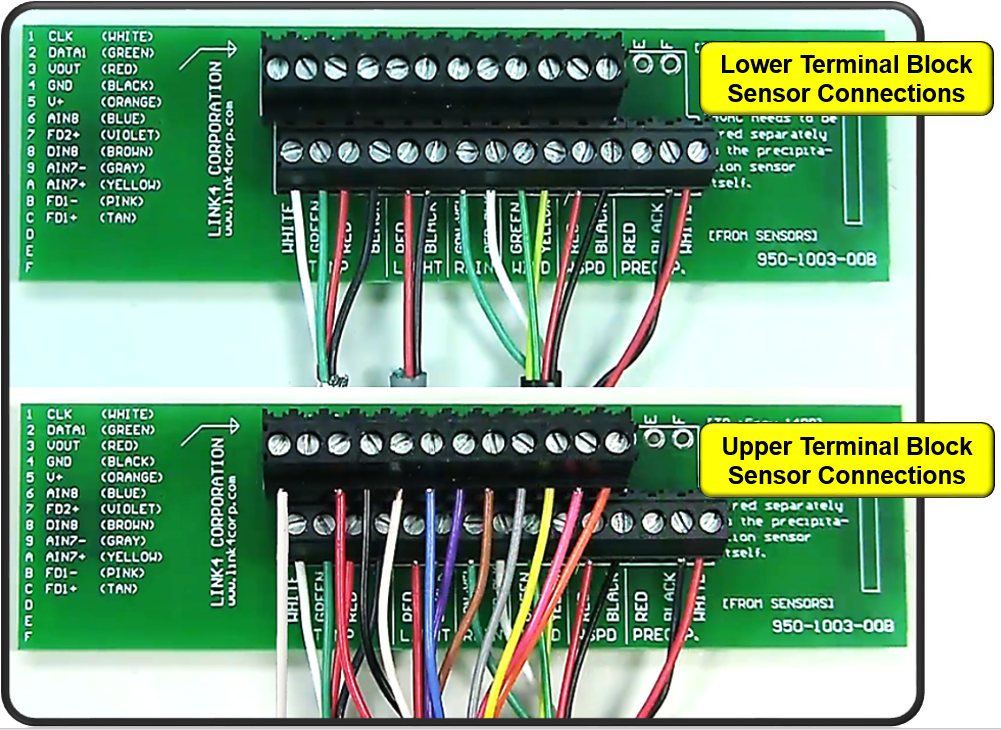

The upper Terminal Block is for your Wiring to the Controller (10 Conductor Wire)
The Lower Terminal Block is your 10 Conductor Wire to the Controller
