1000 Series Temperature Probe sensor Installation

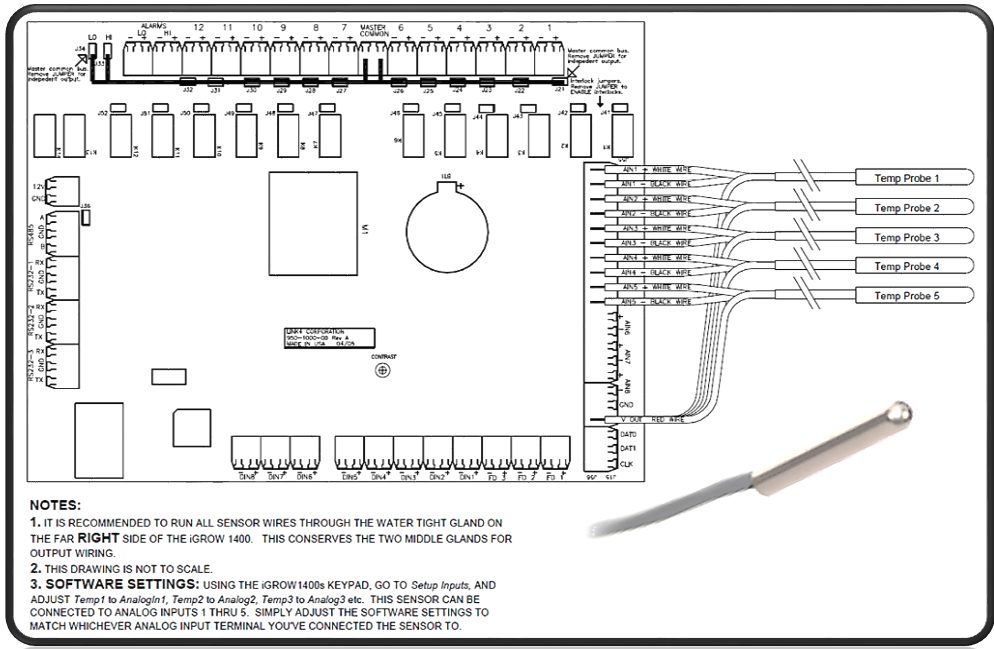

Your iGrow can support up to 5 temperature probes. The probes can be connected to any Analog Inputs between 1 to 5 (labeled as AIN1, AIN2, AIN3, on the circuit board), and can be used for In/Out Temperature, Back up Temperature, Soil Temperature, Bottom Heat, and Mix Valves
Please view the following video link in obtaining an understanding of how to install and program your Temp Probes
To install a Probe Radiation shield you would do the following:
