PEARL - I2C Temperature and Humidity Sensor Probe Installation

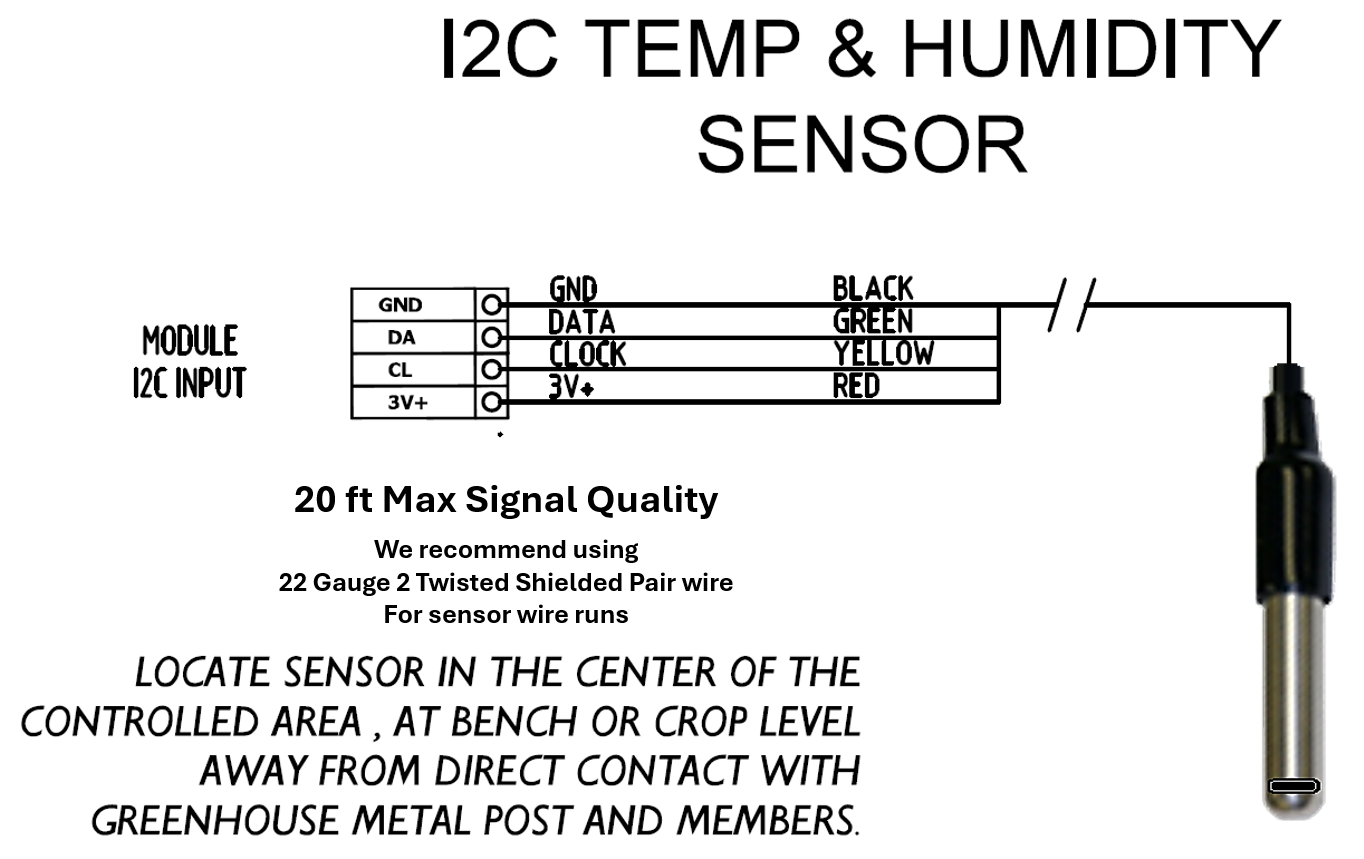

The Pearl I2C Digital Temperature and Humidity Sensor Installation Diagram

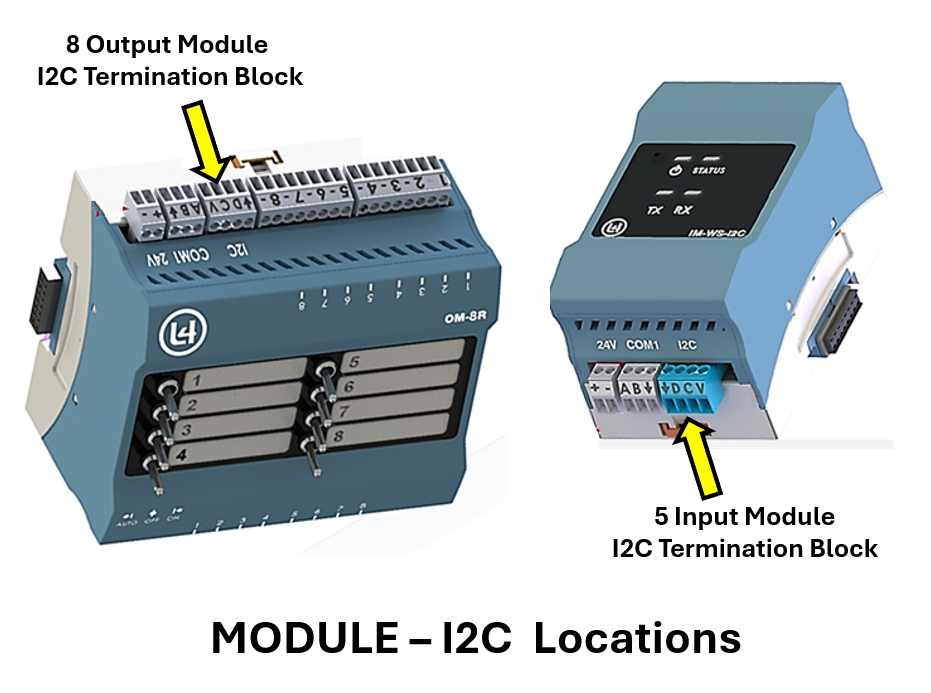

Here are Different I2C Terminal Block Locations on the Various Modules
Once wired you would have to map sensor to the Module Board its wired to
(for example let say the I2C Dig Temp & Hum Sensor is wired to this 8 Output Module ( Modbus Address 3) I2C Termination Block to be used to get an Outside Temperature & Humidity Reading.
you would map it in sensor mapping:

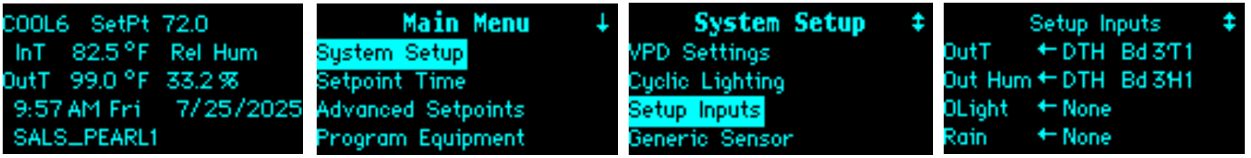

hit Enter button, go into System Setup, then Setup Inputs, and you would hit enter to highlight the editing field and scroll down to change Out T to be DTH Bd3 T1 and the Out Hum to be Bd3 H1.
