PEARL - Analog Temperature Probe Installation on 5 Input Module

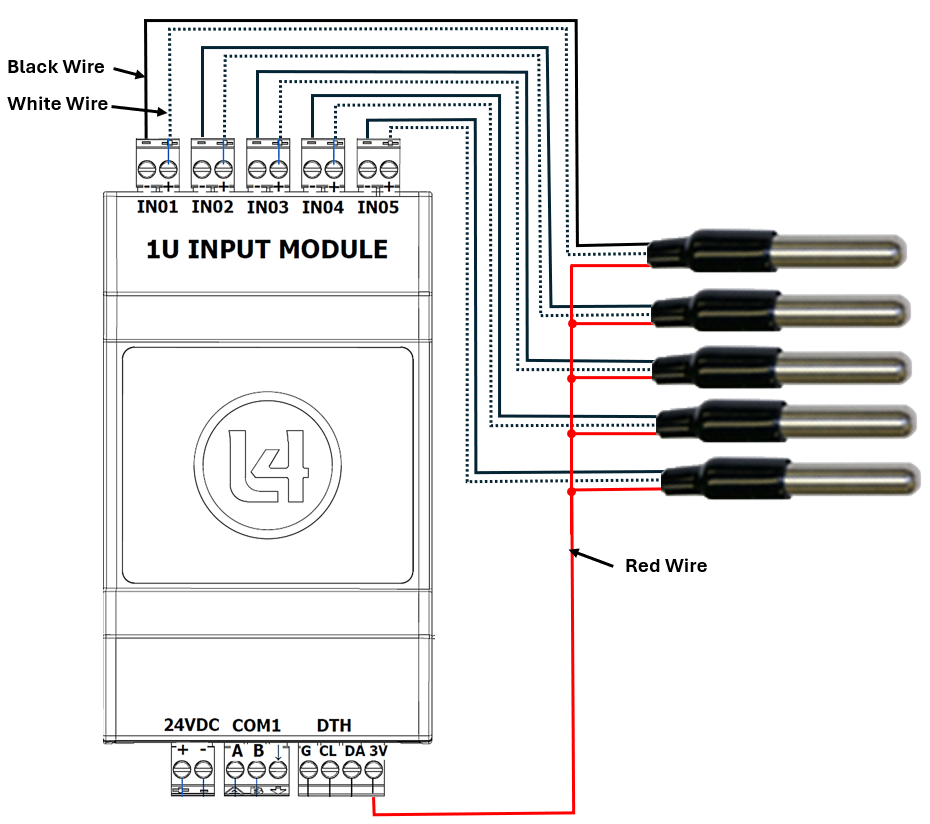

The Pearl Analog Temp Probe Sensor would be wired to your 5 Input Module in the following way:

The Red Wire of Temperature Probe would go to 3V on bottom of Module

the White Wire would go to the (+) of the Input you are going to use for the Temp Probe

the Black Wire would go to the (-) of the Input you are going to use for the Temp Probe

     note:  we recommend using 22 Gauge 2 Twisted Shielded Pair Wire when extending sensor wire runs.

once wired you would have to map sensor to this module board

(for example let say this Module is board 4, and you have 5 temp probes you want to have in separate sections of greenhouse for independent temp reporting of an area)

you would map it in sensor mapping:

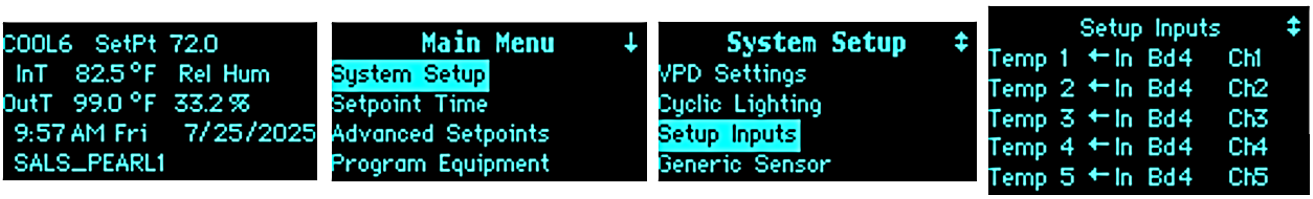

hit Enter button, go into System Setup, then Setup Inputs, and you would hit enter to highlight the editing field and scroll down to change Temp 1,2,3,4,5 to be In Bd4 Ch1,2,3,4,5
