iGrow 800 - Temperature Probe Installation

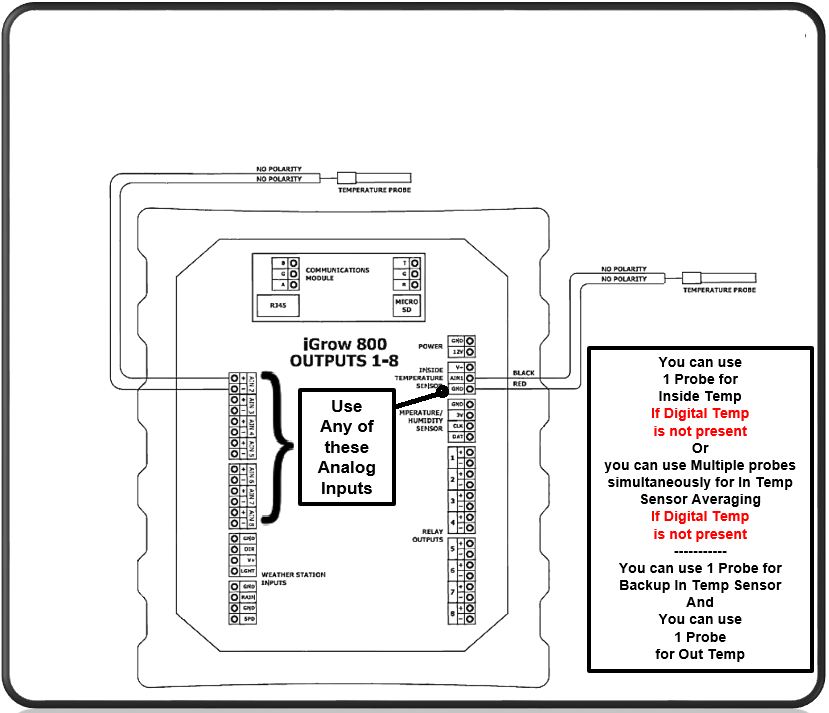

Please view the following in installing Analog Temperature Probes on the iGrow400/800 Controller.

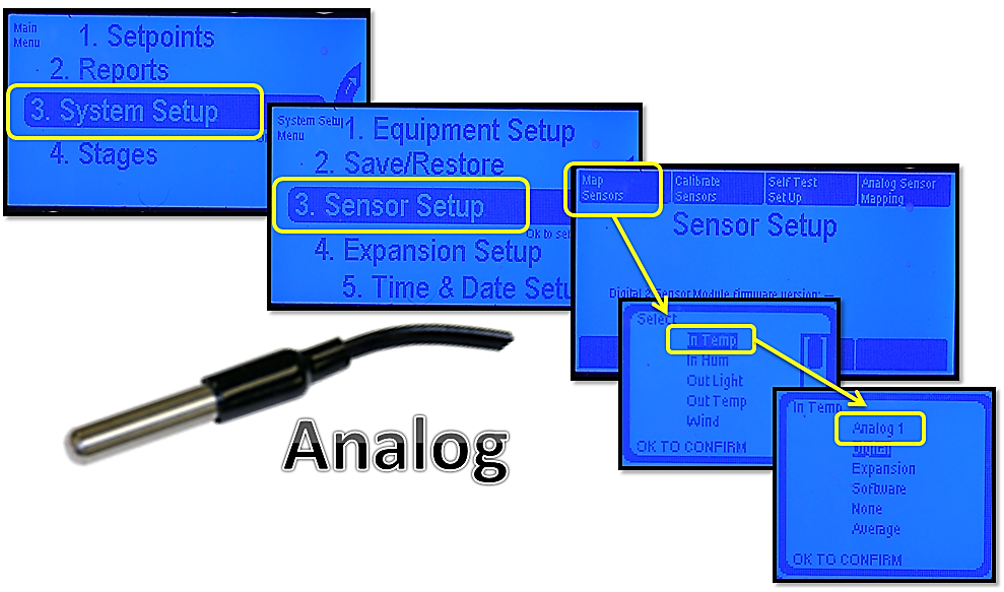

Once you have landed your Temp Probe you would have to go into the Controllers Programming to Map the Sensor to the controller
