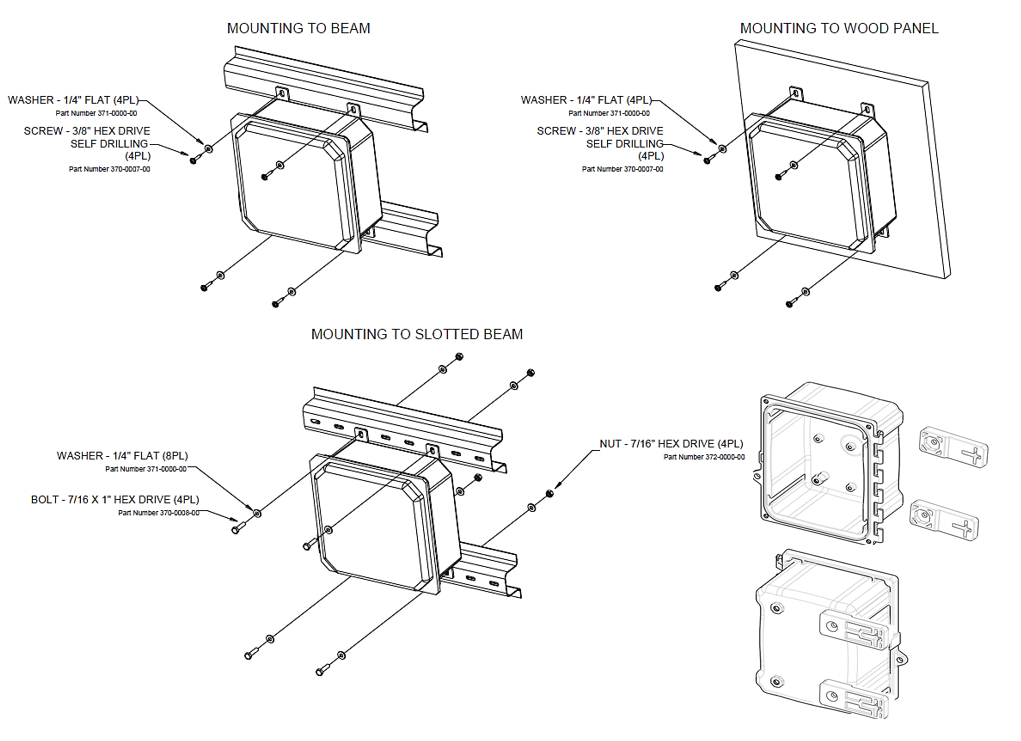

iDrive Enclosure Mounting Information
When Running Your High Voltage to your iDrive Enclosure, it is important you drill your holes thru the bottom
make sure you use water tight connectors to keep out any moisture or water that can damage the iDrive components.
we recommend not to Drill Holes thru top and sides since it effects the integrity of the seal and invalidates the warranty.
If you have any more questions or if you need assistance please give us a call at (714) 975-9474 or email us at support@link4Corp.com
