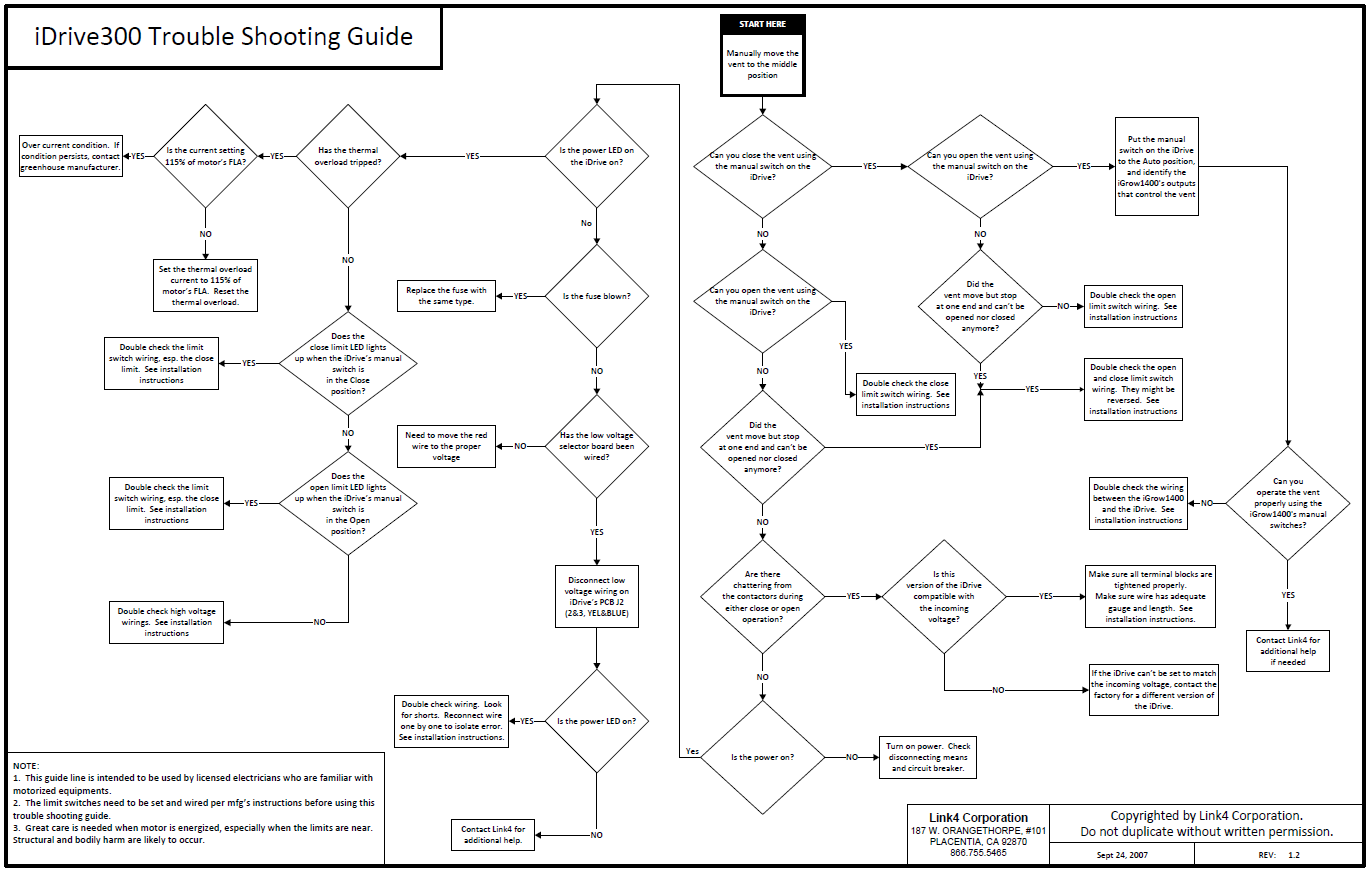

iDrive Troubleshooting guide
Please view the information provided and attached to assist you in resolving your iDrive Issues.
Please contact us with your findings at (714) 975-9474 or email us at support@link4Corp.com
