iDrive 150 Small PCB - Testing OPEN - CLOSE Manual Switch
If your iDrive 150 Manual switch may be giving your some issues and here is a process in testing the switches functionality.

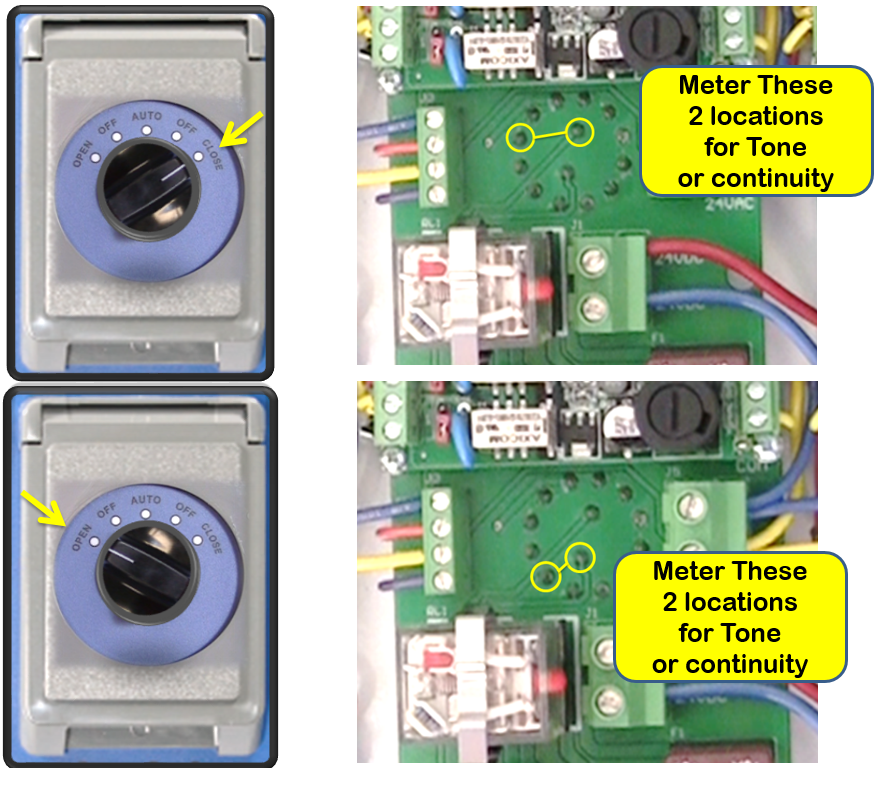

with your testing you will have to have your meter leads ant the 2 soldering point locations to determine continuity or DC Voltage.
When testing you would have to test for Voltage when the switch is:
ON (for 24v) as well as the OFF (for residual voltage)
OFF (for 24v) as well as the OFF (for residual voltage)
