1000 Series - Rain Sensor Troubleshooting

1000 Series - Rain Sensor Troubleshooting

Please view the following information to assist in troubleshooting your RAIN SENSOR.

1st try a soft Reset to see if your rain sensor will react to RAIN

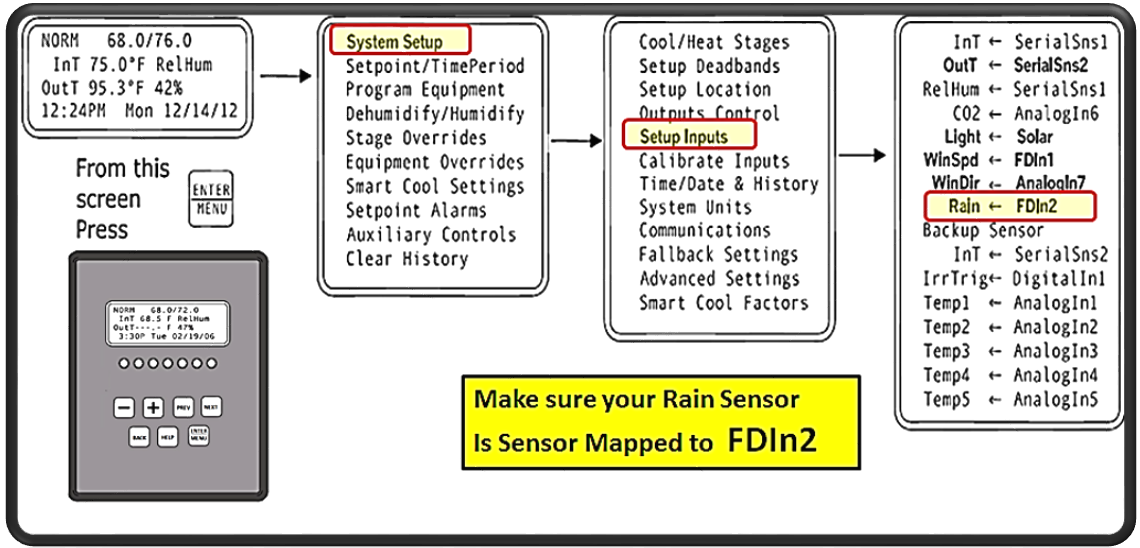

If the soft reset does not work Check the Sensor Mapping

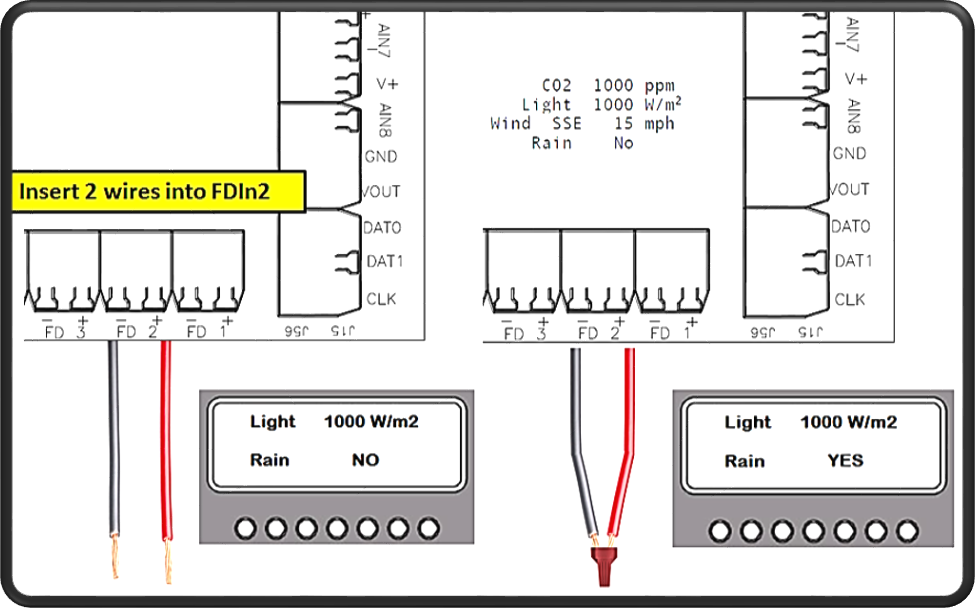

Test The FDIn2 Port on the Controller and see if it reacts to RAIN by Going from NO to YES

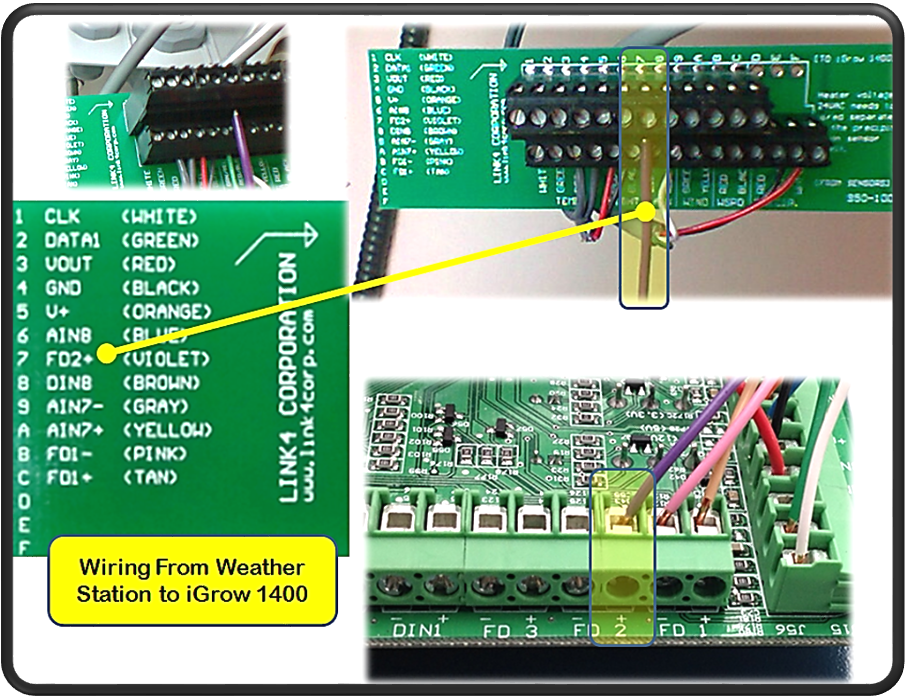

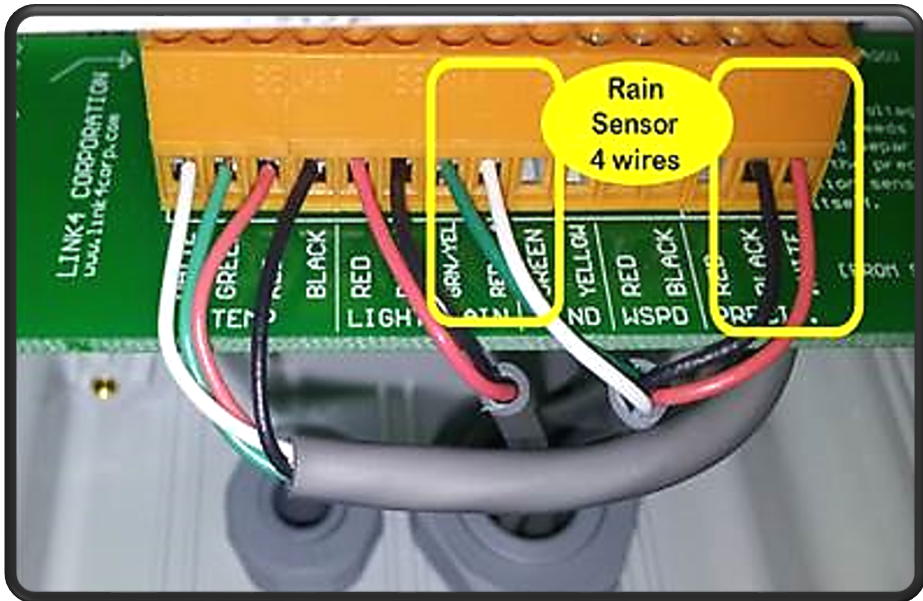

You also may want to check The Wiring to make sure that it has not been compromised.

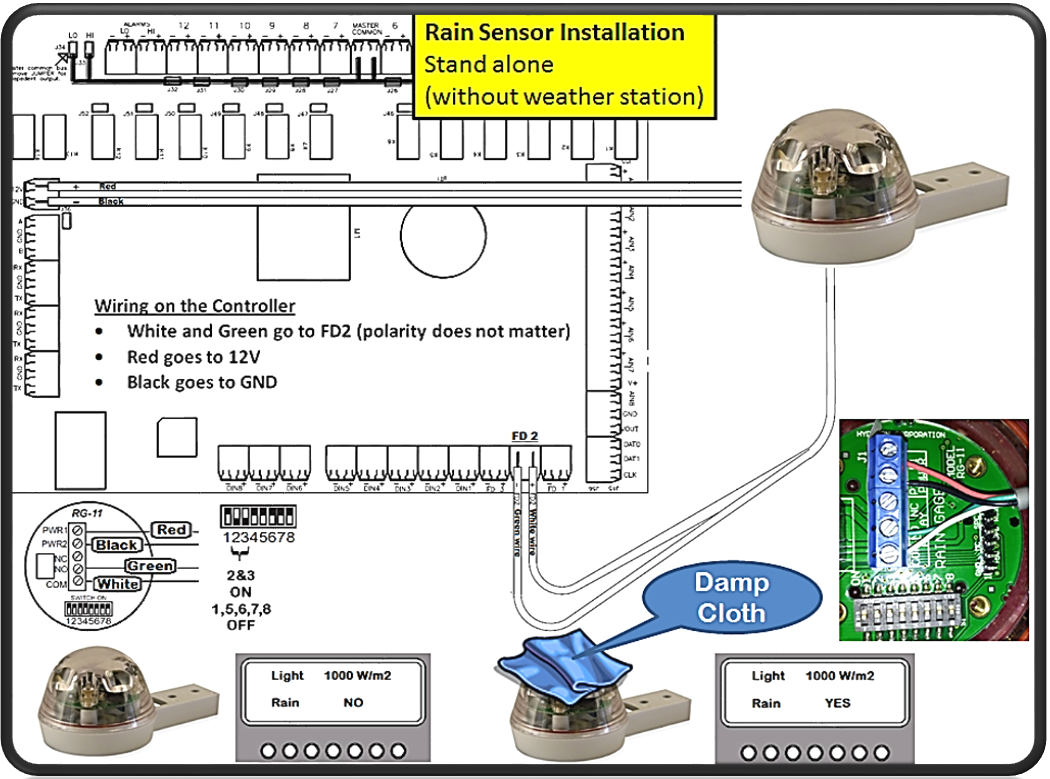

You can also Isolate the Sensor by just connecting it directly to the controller and do a test with a Damp Cloth


Please call Support With your Findings and let us know how to proceed.
