1000 Series Outdoor Digital Air Temp & Hum Sensor Installation
Instead of a weather station, you may simply be mounting an outdoor digital air temperature sensor.

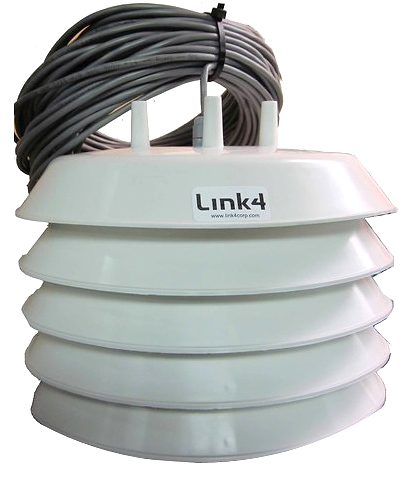

The Air Temperature/Humidity sensor is within a radiation shield to ensure accurate air temperature readings in direct sunlight. The sensor includes a 50-foot sensor cable. Normally you will want to hang the sensor in a optimal location to obtain an outside temperature reading. It is important to keep the sensor away from irrigation emitters, unit heaters, etc. that will effect the accuracy of the sensor
NOTE: 1600 & 1800 READ OUT HUMIDITY, 1200 & 1400 DO NOT READ OUT HUMIDITY
