iGrow1800 Installing Advance Digital Integrated Sensor Module ADISM

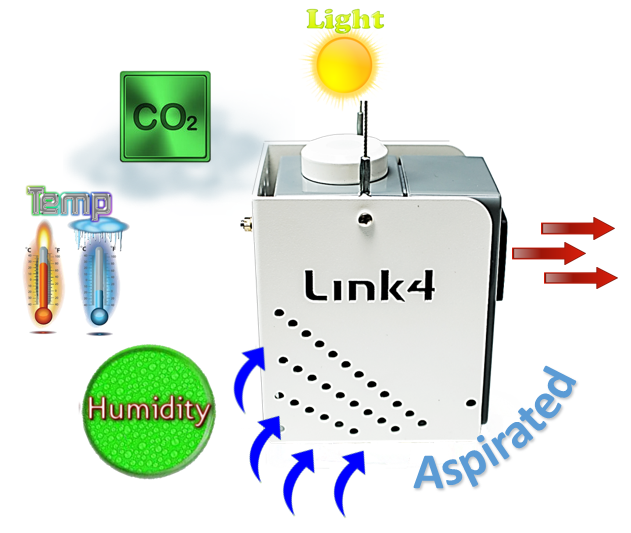

The iGrow 1800 Advance Digital Integrated Sensor Modules gives you the ability to read Indoor Air Temperature, Relative Humidity, C02, and Light, with its powered aspiration for indoor monitoring of humidity and temperature. Pulling air in through its sides and exhausting it out through its backside.
Here is a video - iGrow1800 Installing Advance Digital Integrated Sensor Module ADISM

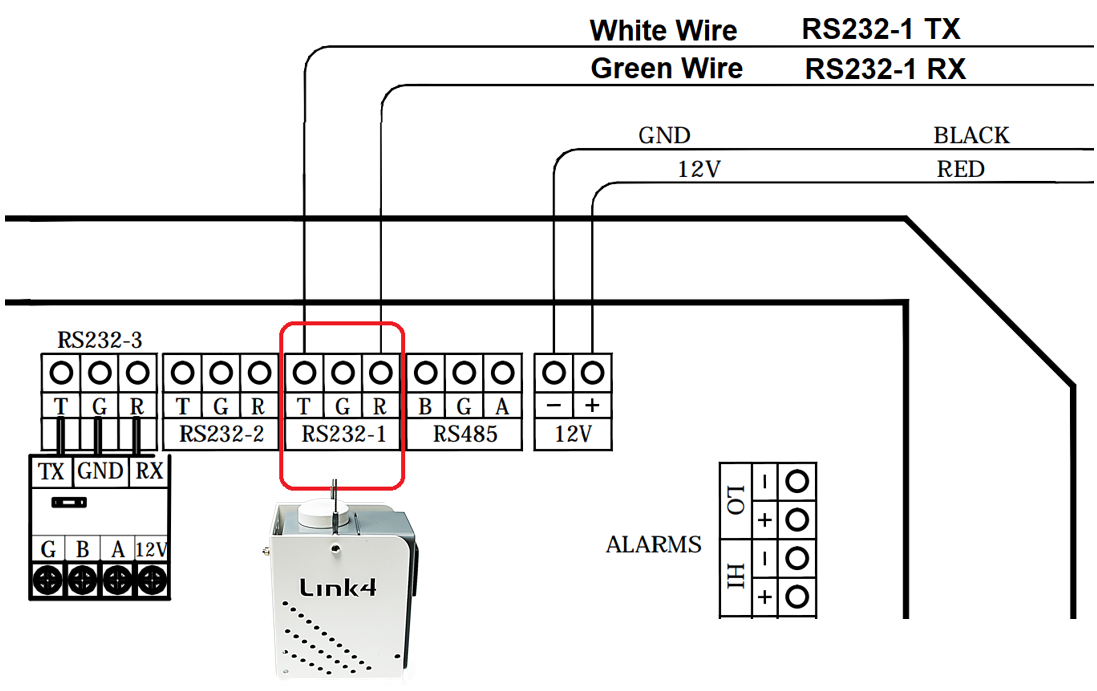

To Install your ADISM you will be landing your Wires on the RS232-1 as well as the 12V & Gnd Terminal Blocks.

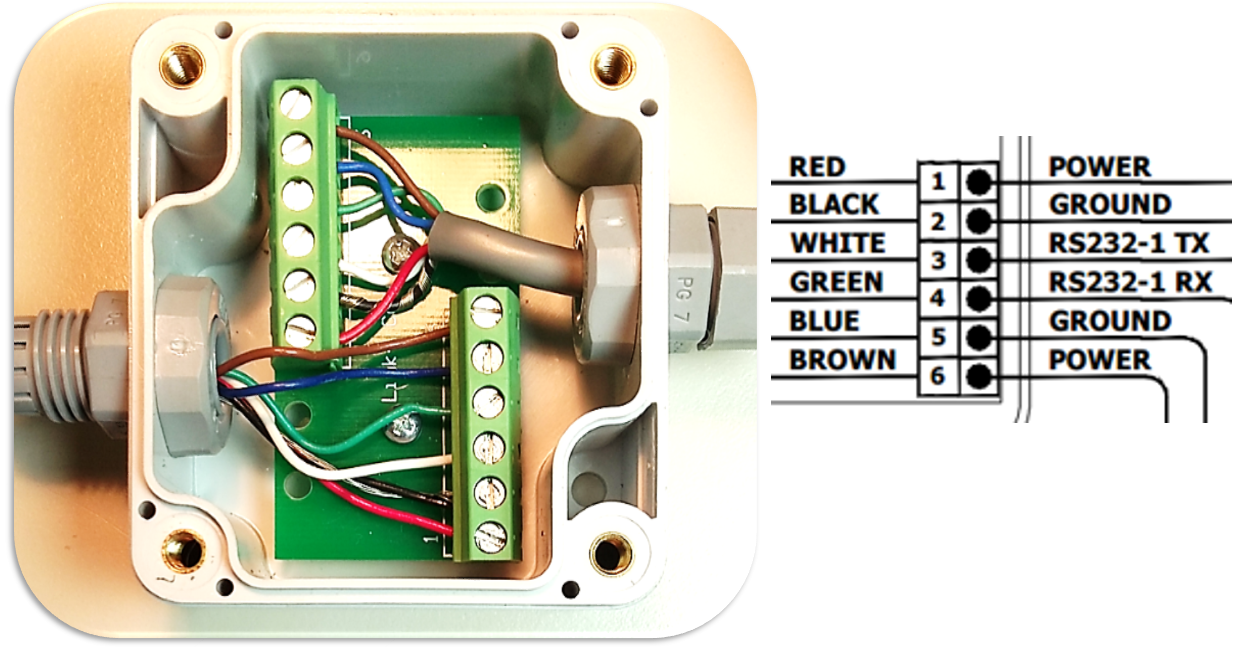

Here is how you would land your wiring when using a Junction box
once you have landed your wiring for your ADISM you would next have to go into the controllers programming and MAP your sensors.
