iGrow 800 - DISM Digital Integrated Sensor Module Installation
With the iGrow 800 you can install the Digital Integrated Sensor Module
iGrow 800 Installing the DISM Digital Integrated Sensor Module

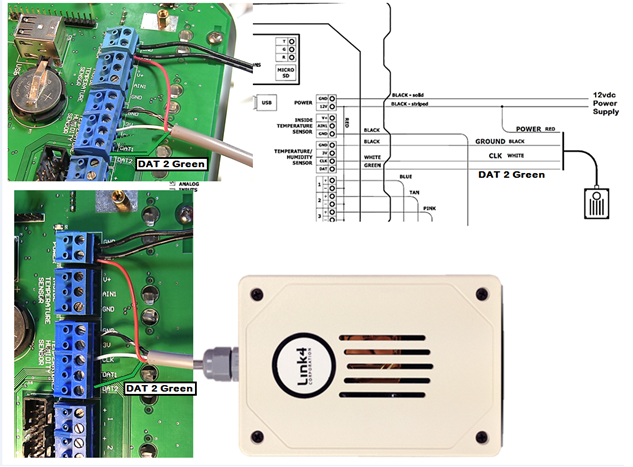

Here is Direct Connect Diagram to the Inside Temperature and Humidity Terminal Block

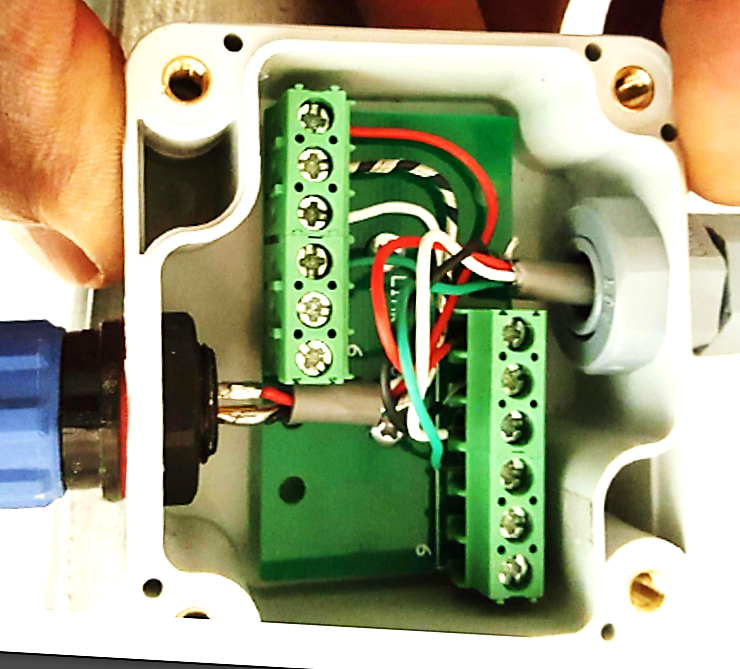

You can also use the Junction Box Method

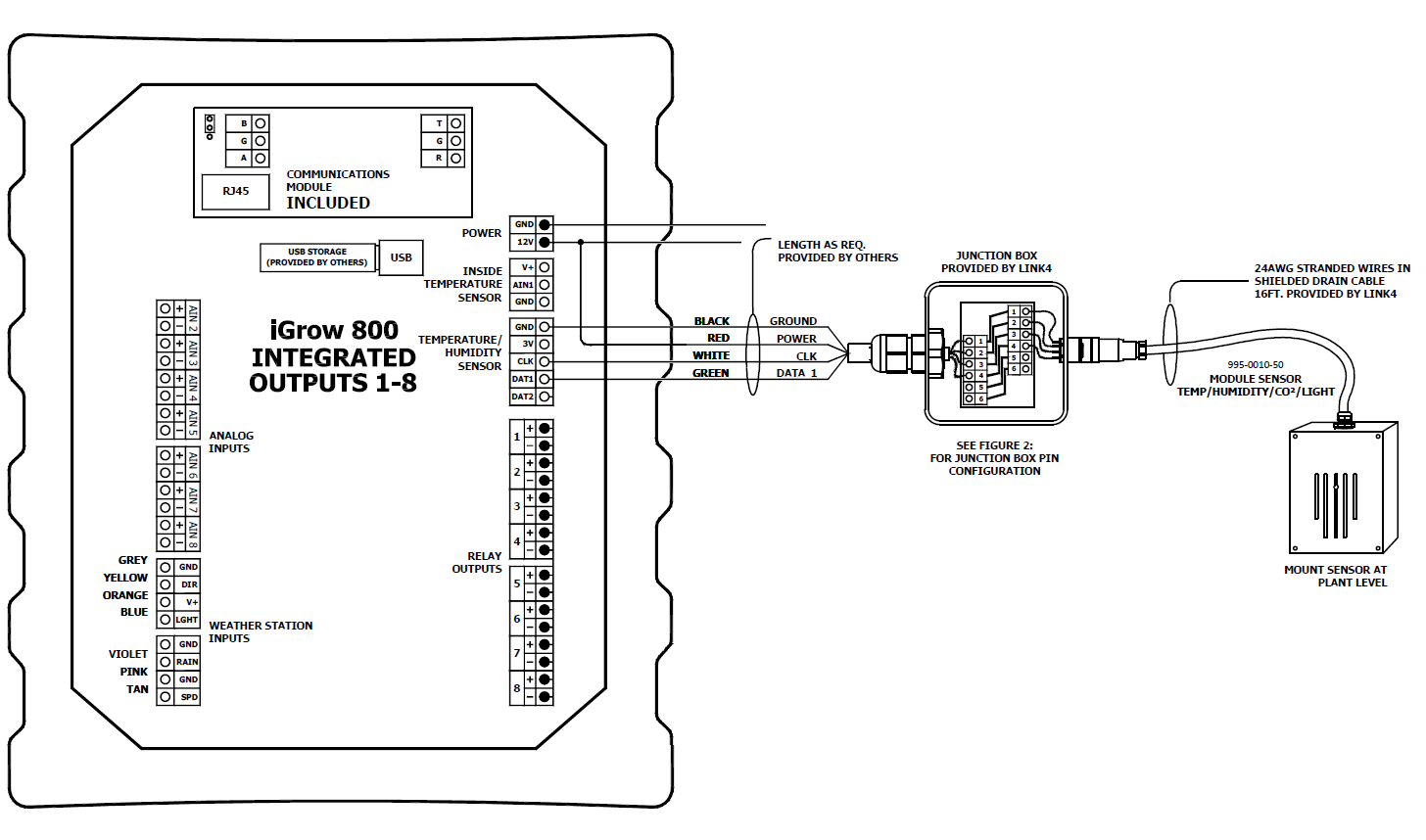

Here is a diagram using the Junction box Method.

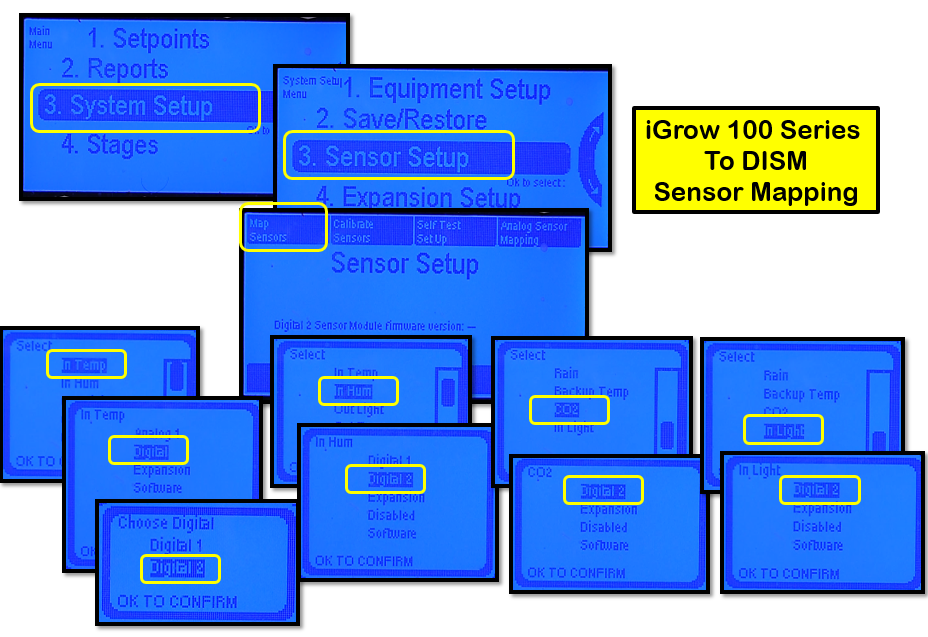

Once you have installed your sensor all you have to do is map the sensor on the controller.
