System Setup - Calibrate Inputs

System Setup - Calibrate Inputs

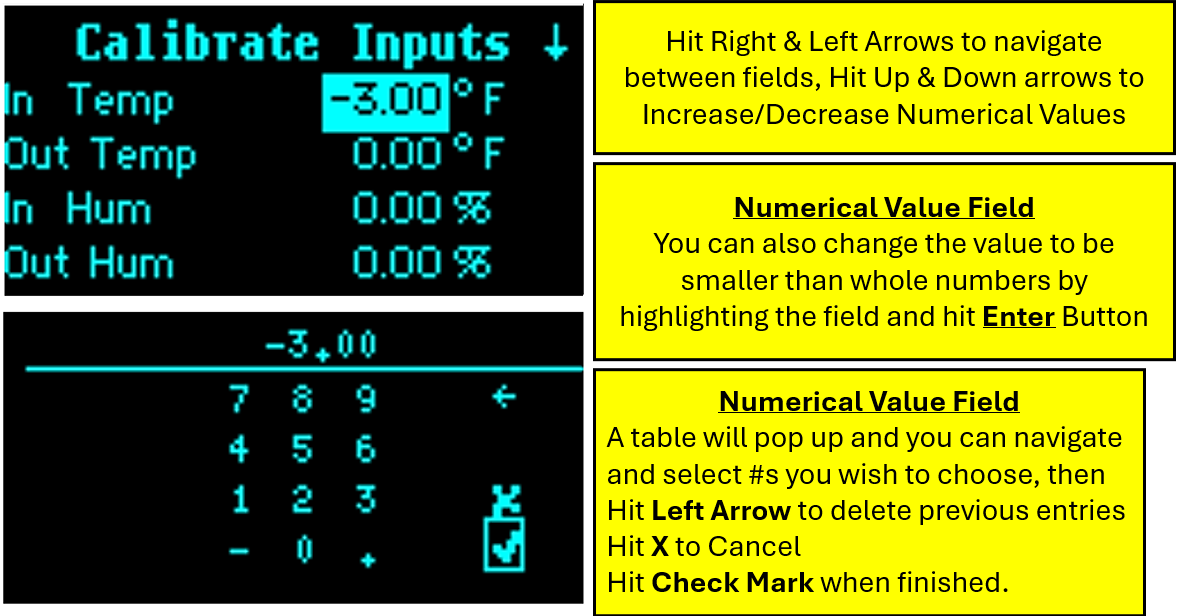

To calibrate an input you must first select the sensor you want to calibrate. Press the + or - keys to cycle through the various sensors. Once you have selected your sensor, you would use UP or DOWN keys to change the desired offset values.  You can also press ENTER to enter the desired values directly with a pop up keypad.

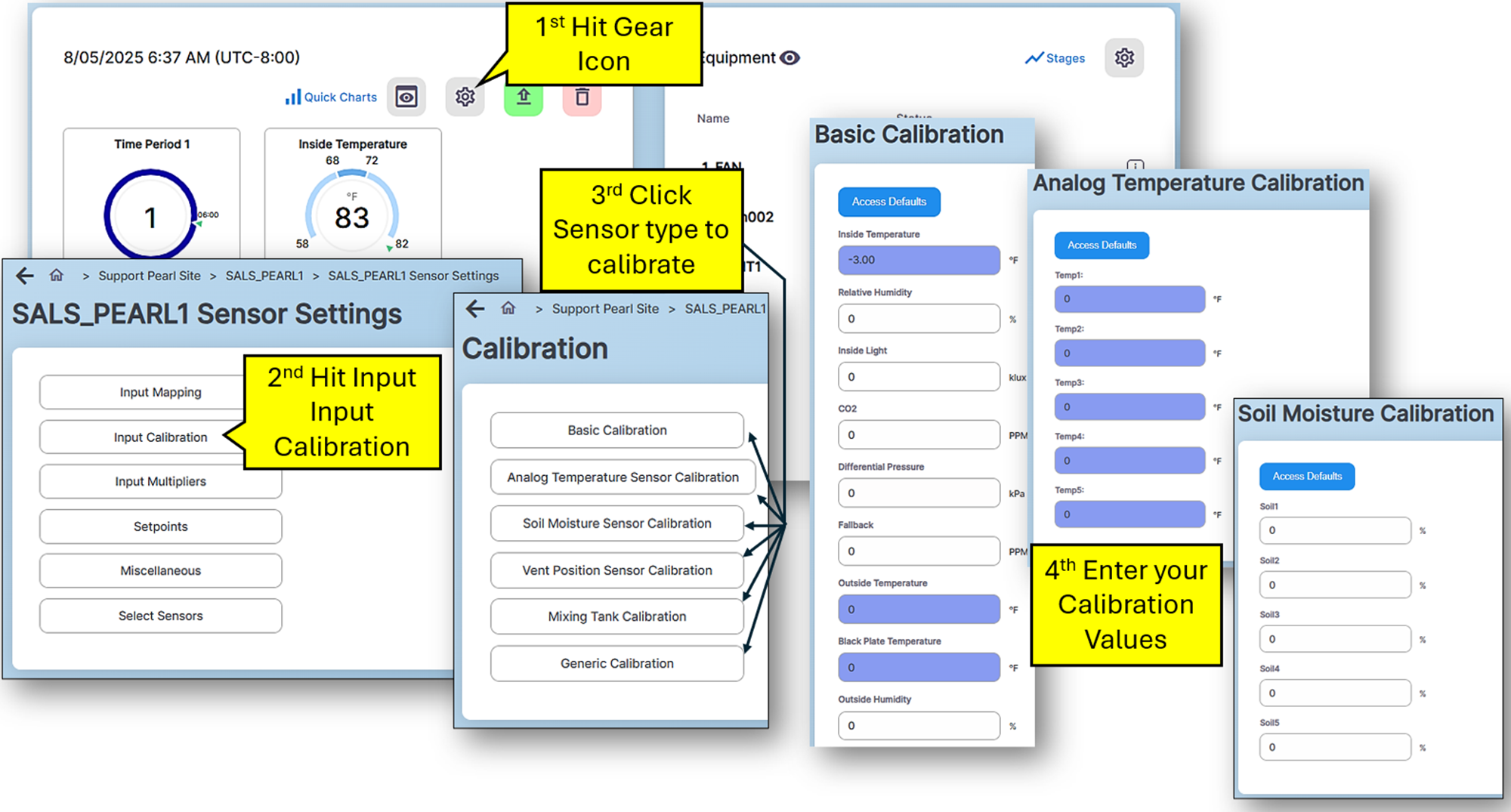

To Calibrate Inputs from Pearl Cloud Platform you would do the following:

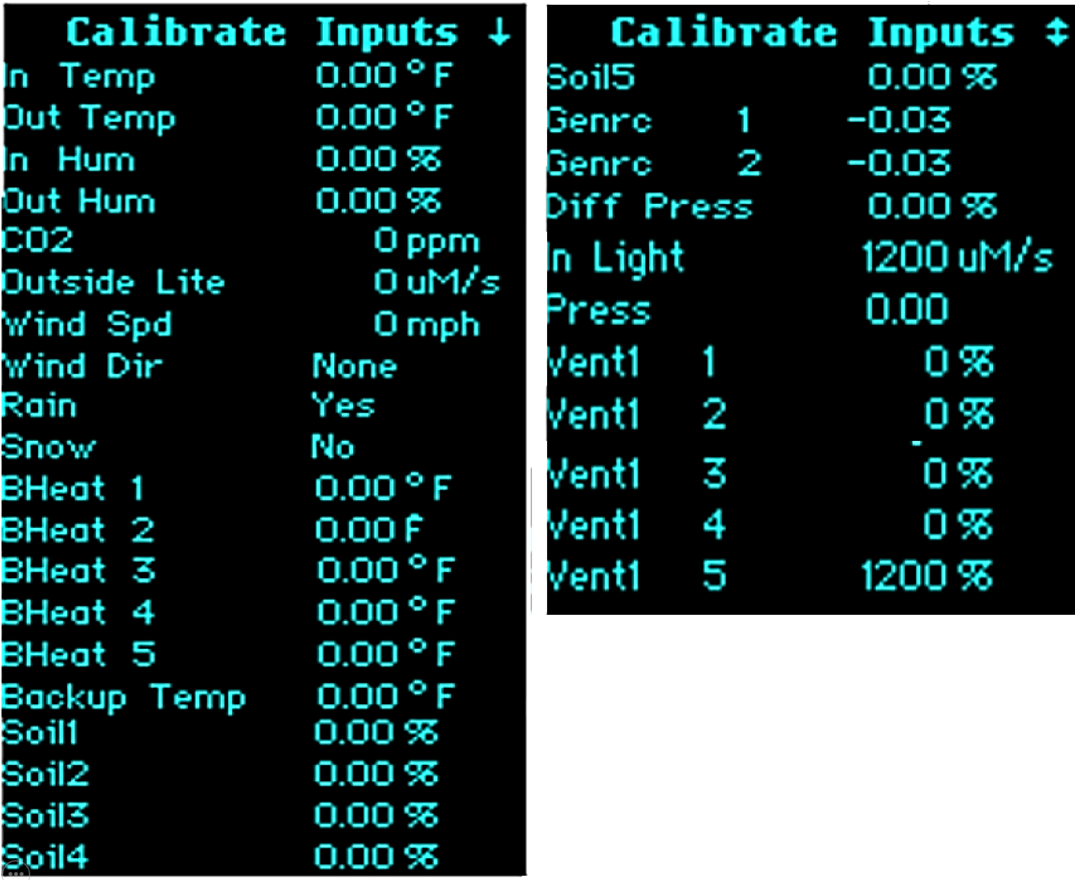

To Calibrate Inputs from Pearl Controller you would do the following:
