System Setup - Cyclic Lighting

System Setup - Cyclic Lighting

There are two modes available for cyclic lighting: Sequential and Concurrent . Sequential is when one light bank comes on at a time. Concurrent is when they all come on at the same time. The Start Delay is at the beginning of the cycle and the Finish delay occurs at the end.

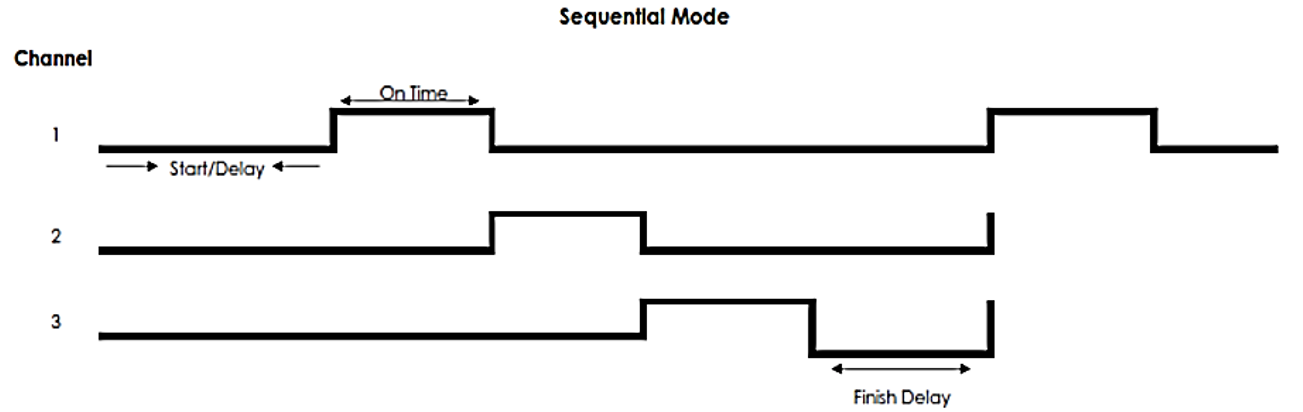

The Min On Time is the shortest time that the lights will be on. This is to eliminate “short cycling” of the lights. The figure below illustrates the case where you selected the sequential mode and you have two light banks. The start delay is at the beginning of the cycle. (Each light bank is programmed separately as to the time window for the light bank to be enabled and the on time for each light bank. The channel programming is shown in the section Programming Equipment and the subsection Cyclic Lighting .) The Start delay occurs at the beginning of the cycle and the Finish delay at the end.

In this Sequential mode the overall cycle time is equal to the Start Delay + Sum of all light channels On Times + Finish Delay . During the Start Delay and Finish Delay times, all the lights are off so this is in effect the Off Time.

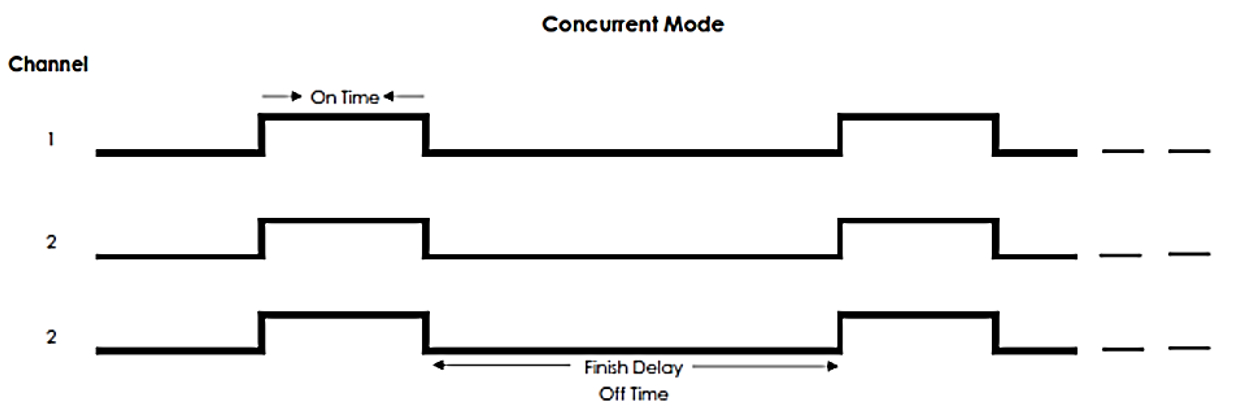

In the Concurrent mode, all the channels will come on at the same time. Typically, the Start Delay will be set to 0:00 and the Finish Delay will become the Off Time . See Diagram below:

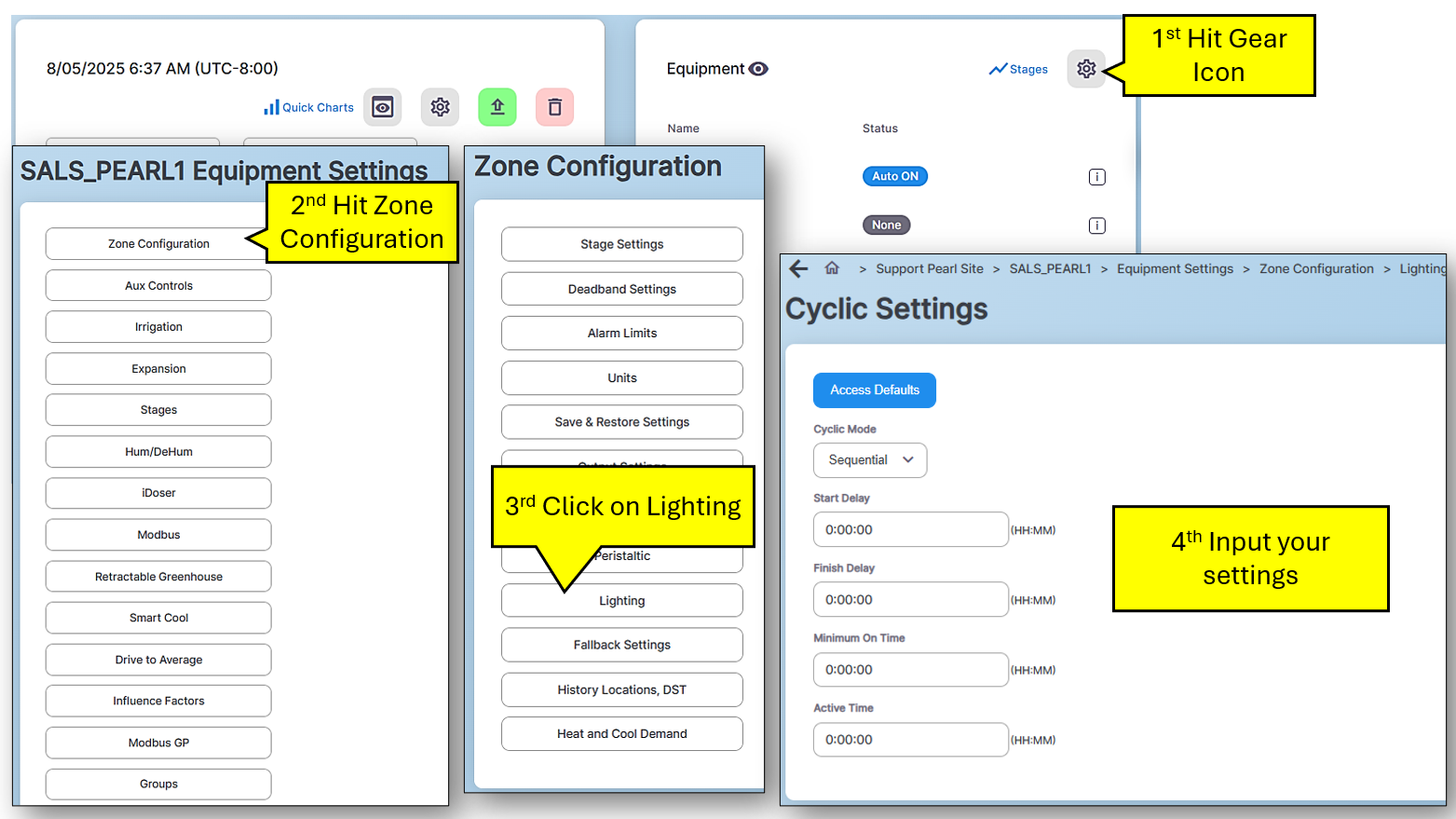

To get to Cyclic Lighting Settings on the Cloud you would do the following:

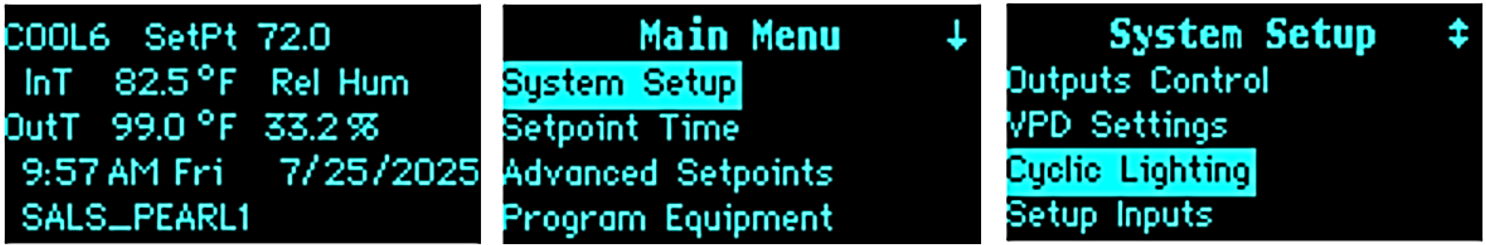

To get to Cyclic Lighting Settings on the Controller you would do the following:
