Ridder Single Phase 5 Wire 120/208/230VAC to iDrive - 970-0015-XXM

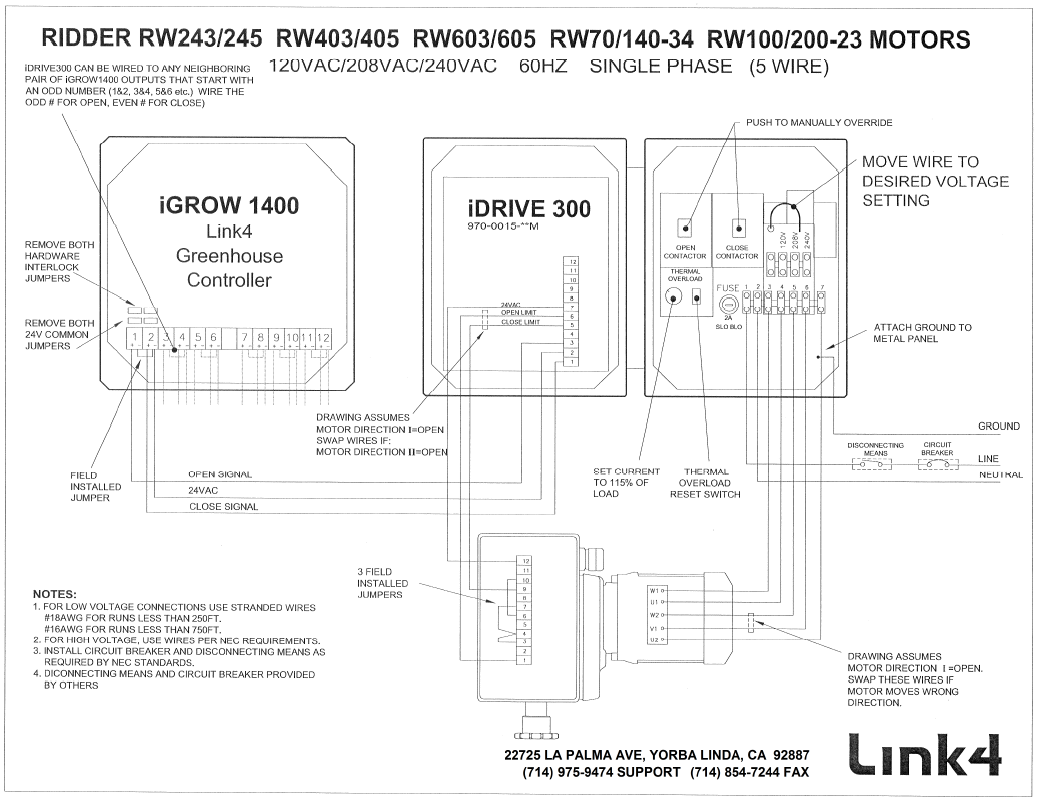

Here is the Diagram for wiring the Ridder Single Phase 5 Wire to iDrive - 970-0015-XXM
As well as Link4 YouTube Links to assist you establishing connectivity between the devices.
Ridder Motors I - Overview & Wiring a Ridder Motor
Ridder Motors II - Setting Mechanical Limits
Ridder Corp Training Video 1 Setting Mechanical Limit Switches
