Ridder Single Phase 3 Wire 120/208/230VAC to iDrive - 970-0013-XXM

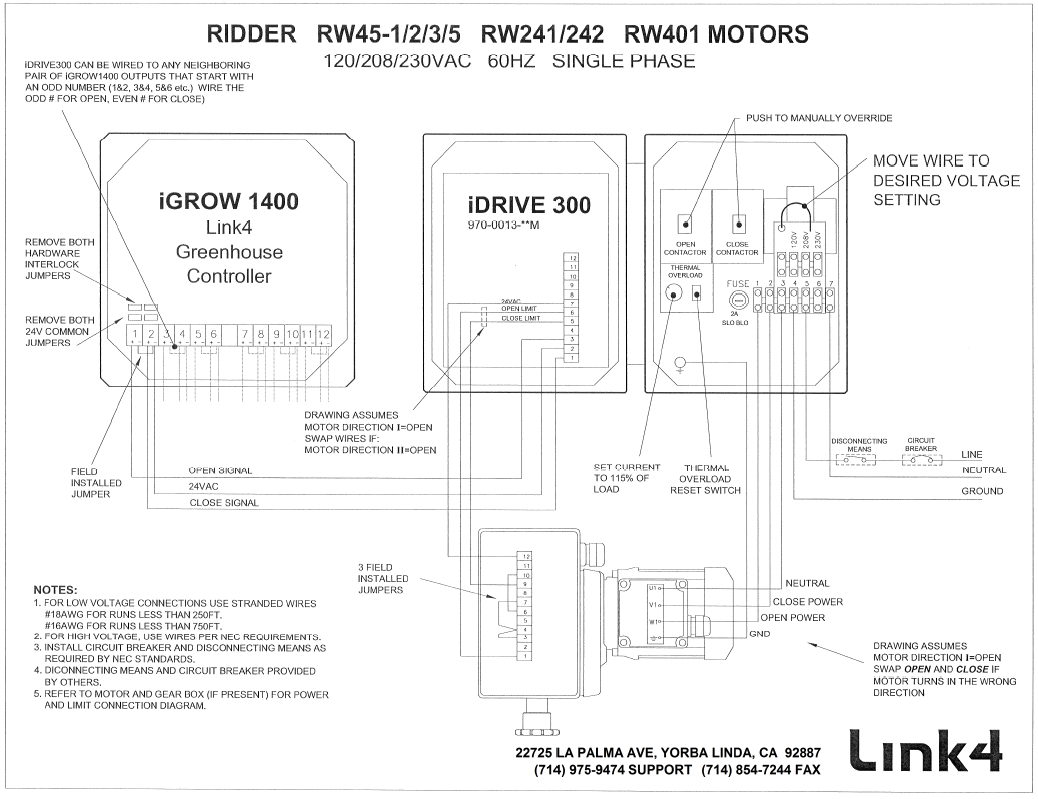

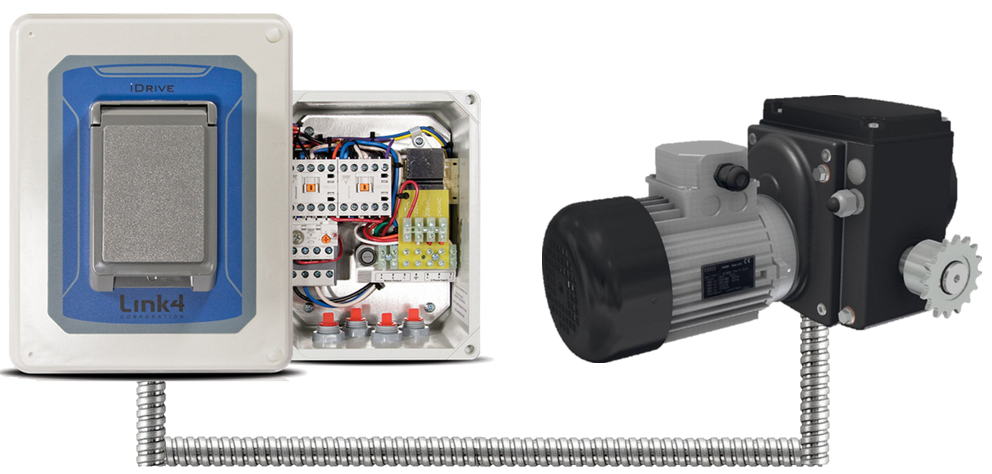

Here is the Diagram for wiring the Ridder Single Phase 3 Wire to iDrive - 970-0013-XXM
As well as Link4 YouTube Links to assist you establishing connectivity between the devices.
Ridder Motors I - Overview & Wiring a Ridder Motor
Ridder Motors II - Setting Mechanical Limits
Ridder Corp Training Video 1 Setting Mechanical Limit Switches
Related Articles

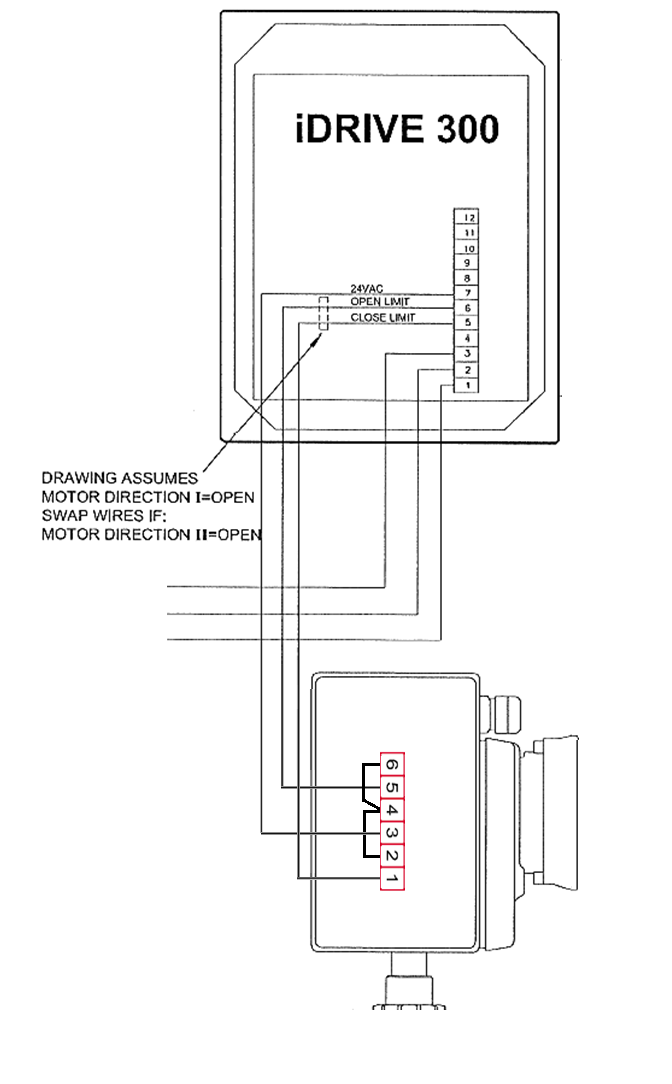

6-terminal block poly switch on the iDrive 300 Wiring diagram (single phase)
Attached is the drawing for the iDrive 300 field connection diagram for Motor Controller 970-0013-xxM, rated for 120/208/240 VAC, 50/60 Hz, single-phase.Ridder Single Phase 5 Wire 120/208/230VAC to iDrive - 970-0015-XXM
Here is the Diagram for wiring the Ridder Single Phase 5 Wire to iDrive - 970-0015-XXM As well as Link4 YouTube Links to assist you establishing connectivity between the devices. Ridder Motors I - Overview & Wiring a Ridder Motor Ridder Motors II - ...Ridder Three Phase 3 Wire 208/230VAC to iDrive - 970-0033-XXM
Here is the Diagram for wiring the Ridder Three Phase 3 Wire to iDrive - 970-0033-XXM As well as Link4 YouTube Links to assist you establishing connectivity between the devices. Ridder Motors I - Overview & Wiring a Ridder Motor Ridder Motors II - ...Ridder Three Phase 3 Wire 480VAC to iDrive - 970-4833-XXM
Here is the Diagram for wiring the Ridder Three Phase 3 Wire to iDrive - 970-0033-XXM As well as Link4 YouTube Links to assist you establishing connectivity between the devices. Ridder Motors I - Overview & Wiring a Ridder Motor Ridder Motors II - ...Wiring an iDrive to a Single Phase 3 Wire Ridder Electric Motor Will Open But Not Close
It has been brought to our attention that some of these motors may have undergone a revision which makes the drawing for the Ridder motor that the iDrive ships with incorrect. Our drawing will allow you to connect the motor and open it with an iDrive ...
