ON/OFF Equipment Programming

The Pearl supports On/Off devices with up to 6 heating and 6 cooling stages. Use 1 to turn equipment ON and 0 to turn it OFF.

Use the Right/Left keys to go from one entry to another.

Use the UP or Down keys to toggle the On/Off condition for a particular stage.

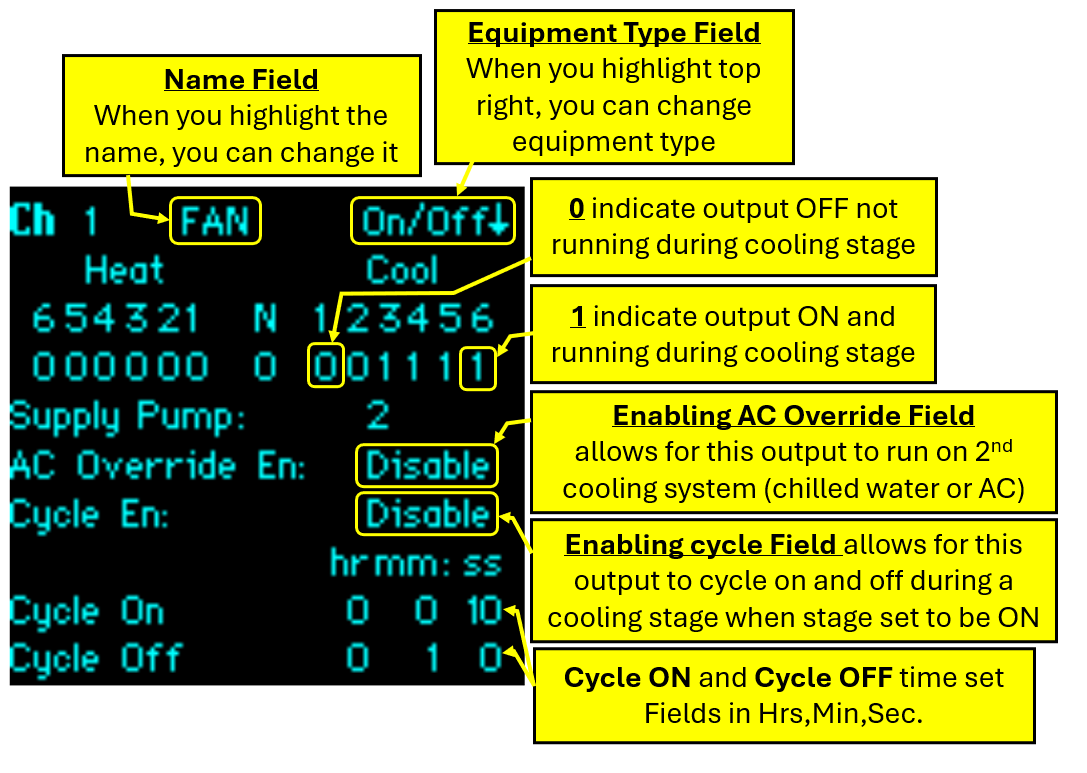

The Pearl Controller View

The Cloud View
