Mixing Valves (Proportional) - Equipment Programming

Mixing Valves (Proportional) - Equipment Programming

Note: This equipment type requires 2 consecutive channels 1&2, 3&4, 5&6, etc. The first channel (odd numbered) must be wired to OPEN the valve, and the other (even numbered) to CLOSE it.

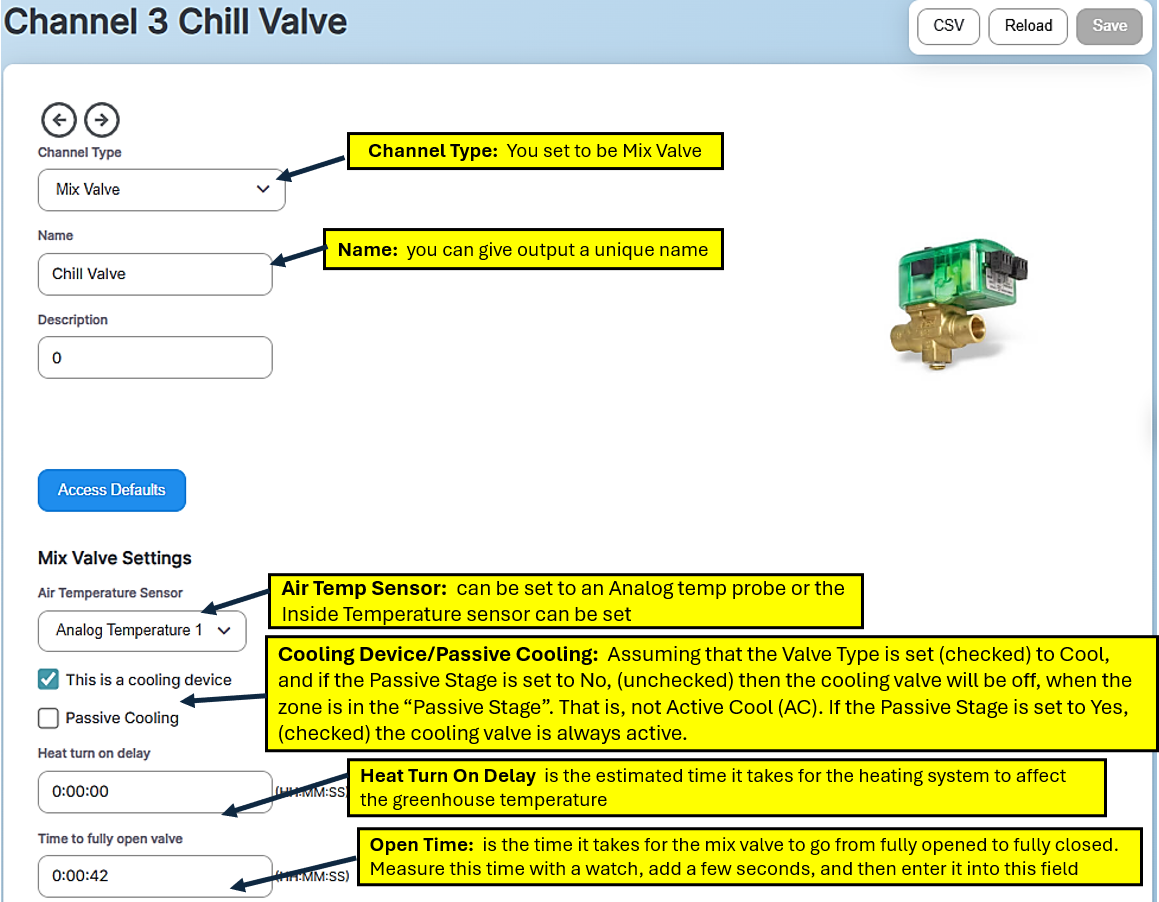

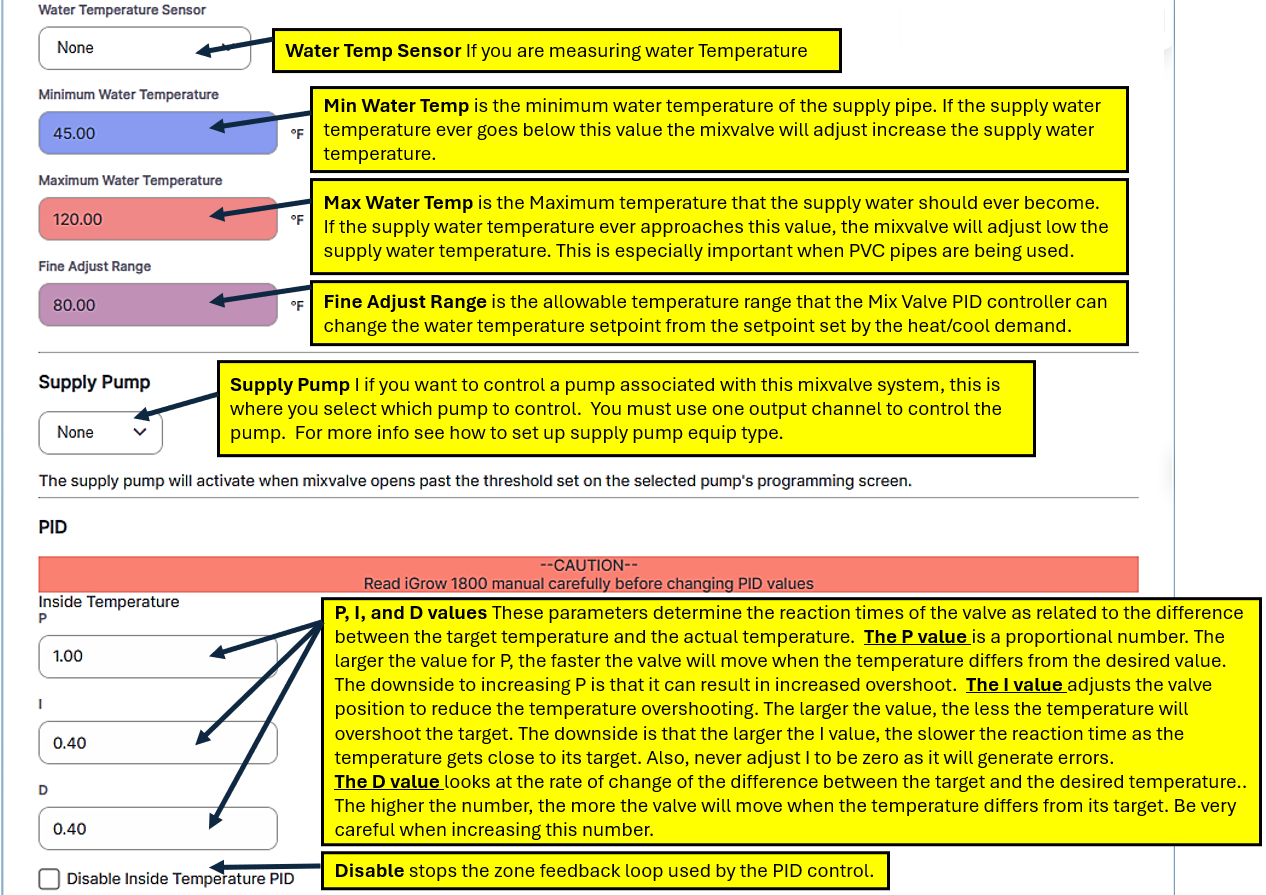

To program Mix Valve from Pearl Cloud Platform you would do the following:

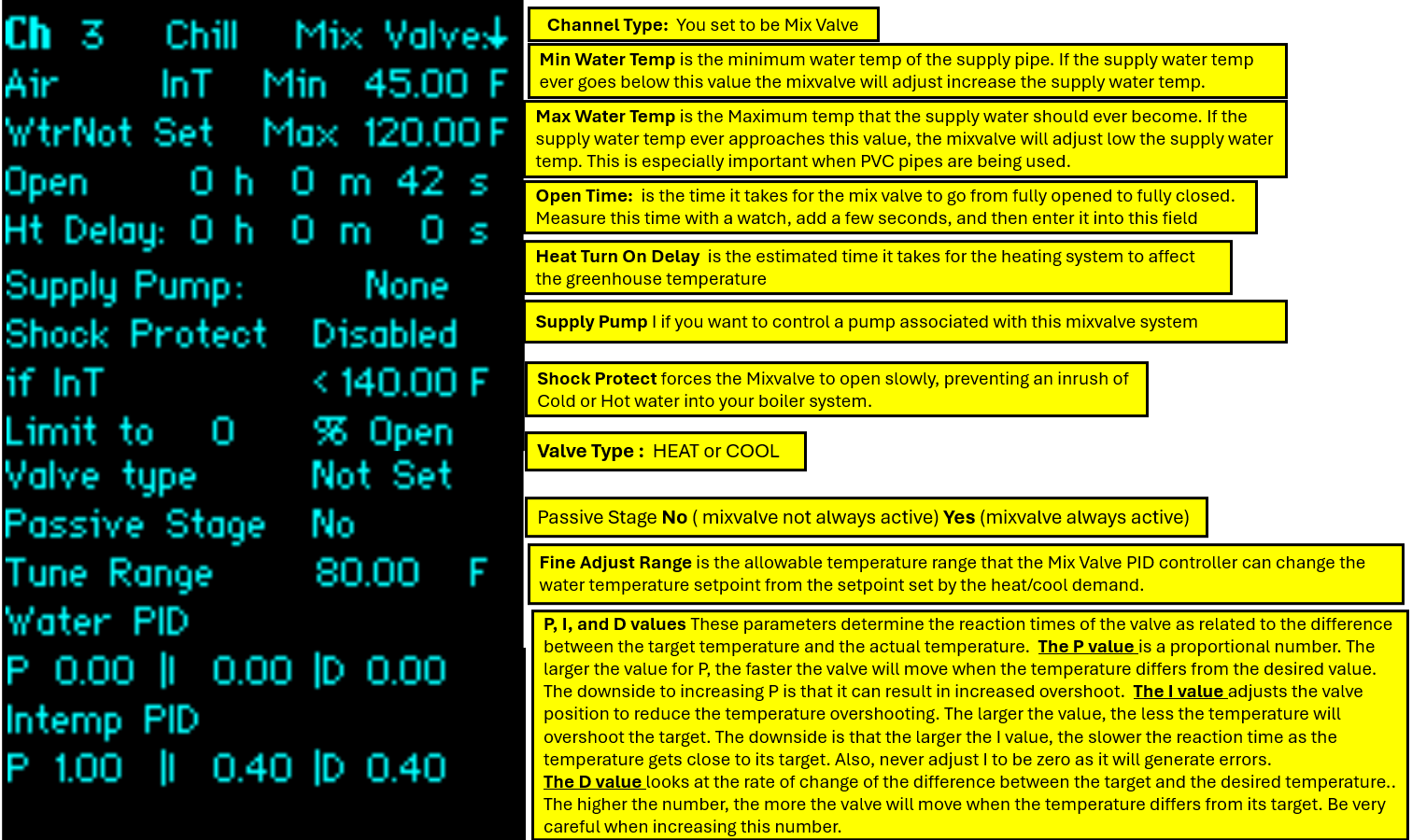

To program Mix Valve from Pearl Controller you would do the following:
