Curtain - Equipment Programming

Curtain - Equipment Programming

Note: This equipment type requires 2 consecutive channels 1&2, 3&4, 5&6, etc. The first channel (odd numbered) must be wired to OPEN the valve, and the other (even numbered) to CLOSE it.

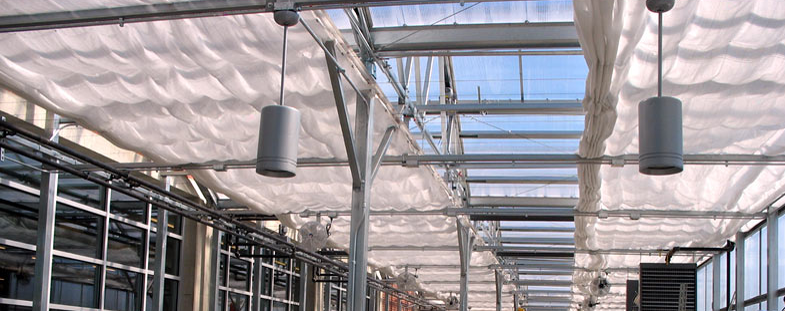

Shade Control

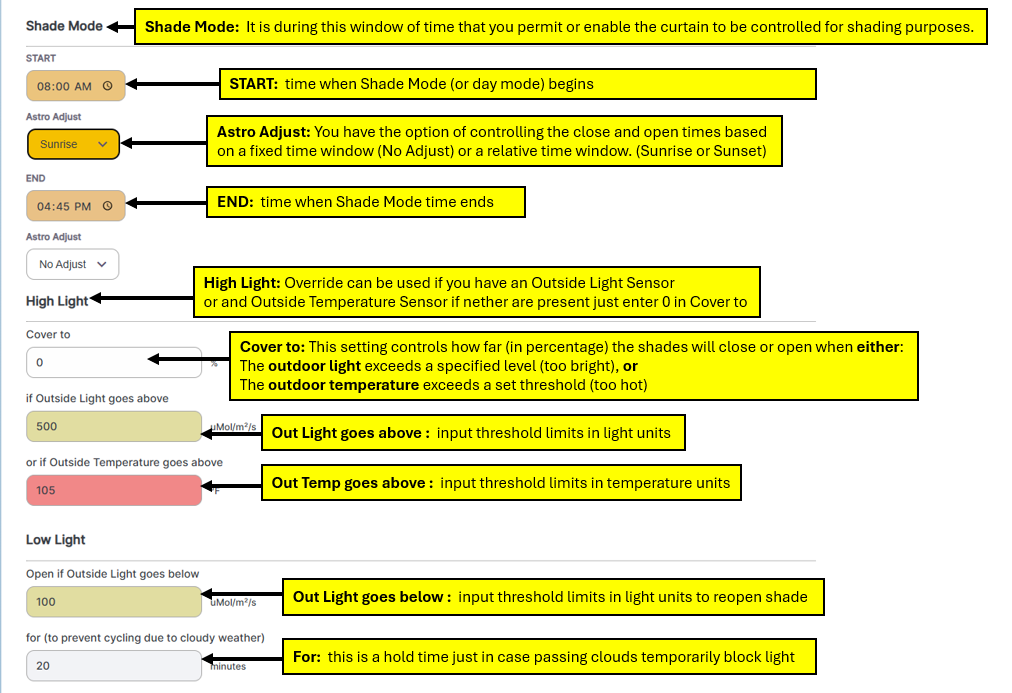

In programming your curtain for shading you will first set a close and open time. It is during this window of time that you permit or enable the curtain to be controlled for shading purposes.

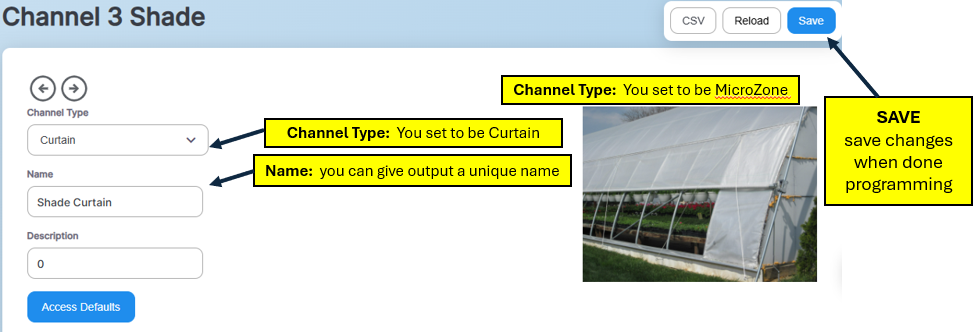

To program Curtain from Pearl Cloud Platform you would do the following:




To program Curtain from Pearl Controller you would do the following:
​
