LOCK Three Phase 240VAC Master Wiring diagram 970-1033-xxM
Connecting iDrive to Lock Motor Information
Run your Line In and Motor Out wiring as prescribed in the Link4 Shop Drawing.

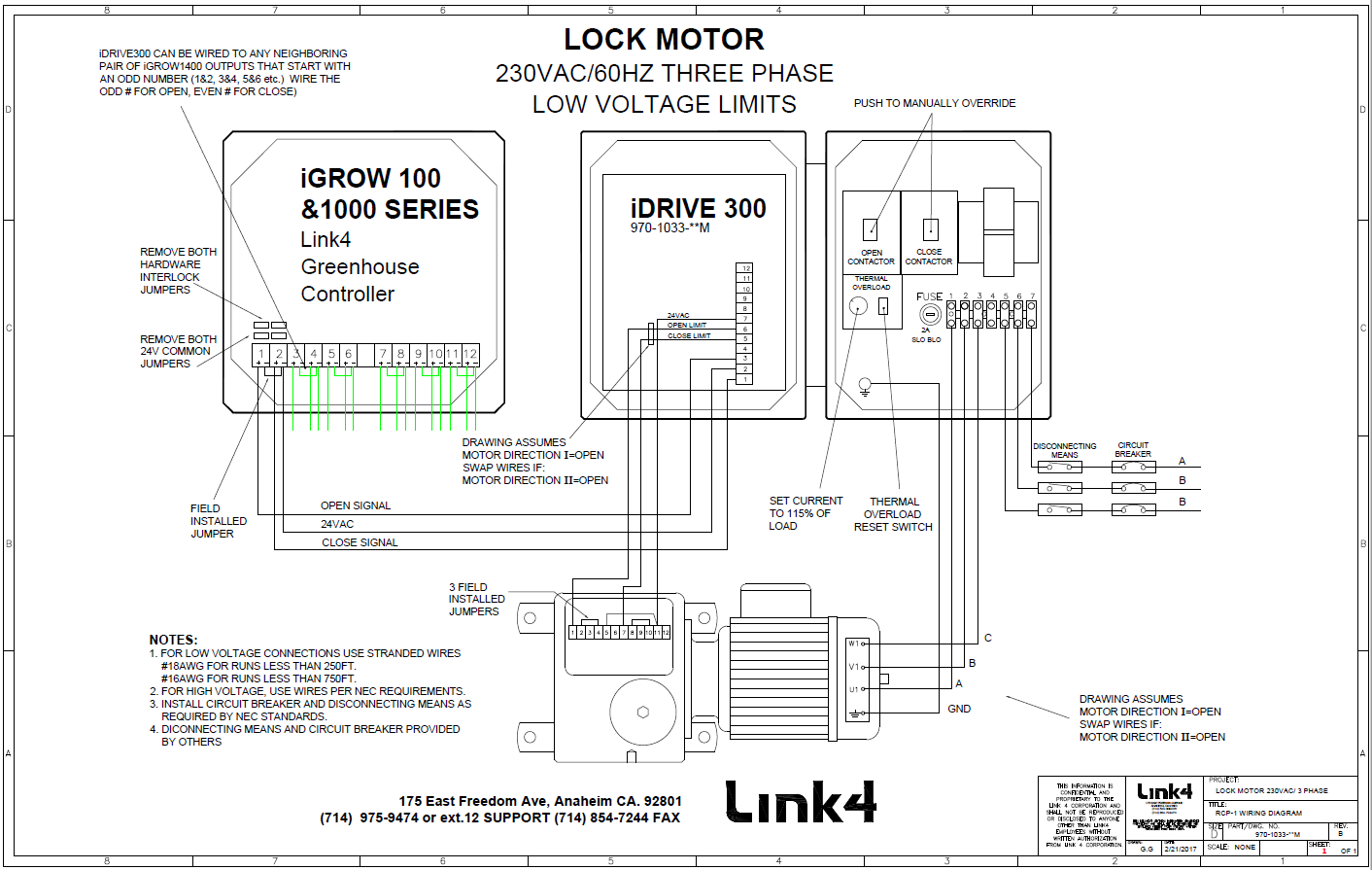

as well as your Low Voltage Limit Wiring, Here is a Wiring Diagram

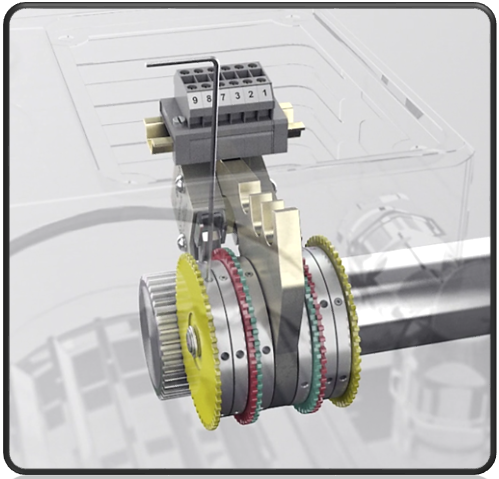

Setting the Mechanical Limits
http://www.lock.de/media/animation_endschalter/12_05_2014/Endschalter_final.mp4
If you have any more questions or if you need assistance please give us a call at (714) 975-9474 or email us at support@link4Corp.com
