LOCK Single Phase 120VAC Master Wiring diagram 970-1013-xxM

LOCK Single Phase 120VAC Master Wiring diagram 970-1013-xxM


Connecting iDrive to Lock Motor Information

Run your Line In and Motor Out wiring as prescribed in the Link4 Shop Drawing.

Regarding Limits you need to determine if it’s a single or three phase motor.  Each requires a certain procedure in setting LIMITS.

http://www.lock.de/media/animation_endschalter/12_05_2014/Endschalter_final.mp4

Single Phase 3 wire

SET MECHANICAL LIMITS ONLY

  • Do Not Run or Wire any low voltage limit wiring from iDrive J1 (7-8-9) to Lock Motor

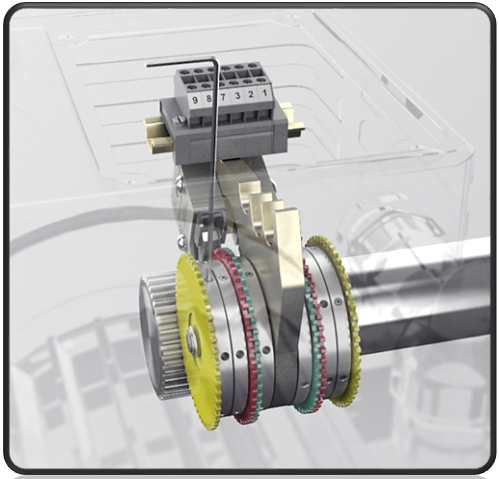

Go to LOCK website  www.lockdrives.com go to the service tab, then installation, then limit switch system to see animation.

When Installing this type Model with iDrive 970-1013-xxM you do not wire the Low Voltage Limits

You use and set the Line Voltage Limits



If you have any more questions or if you need assistance please give us a call at (714) 975-9474 or email us at support@link4Corp.com
