LIGHT Equipment Programming Scheduled

LIGHT Equipment Programming Scheduled

With Scheduled mode light program, you can have up to 3 time periods per day to program On and 3 Off Times for your lights and a 2 week lighting days schedule.

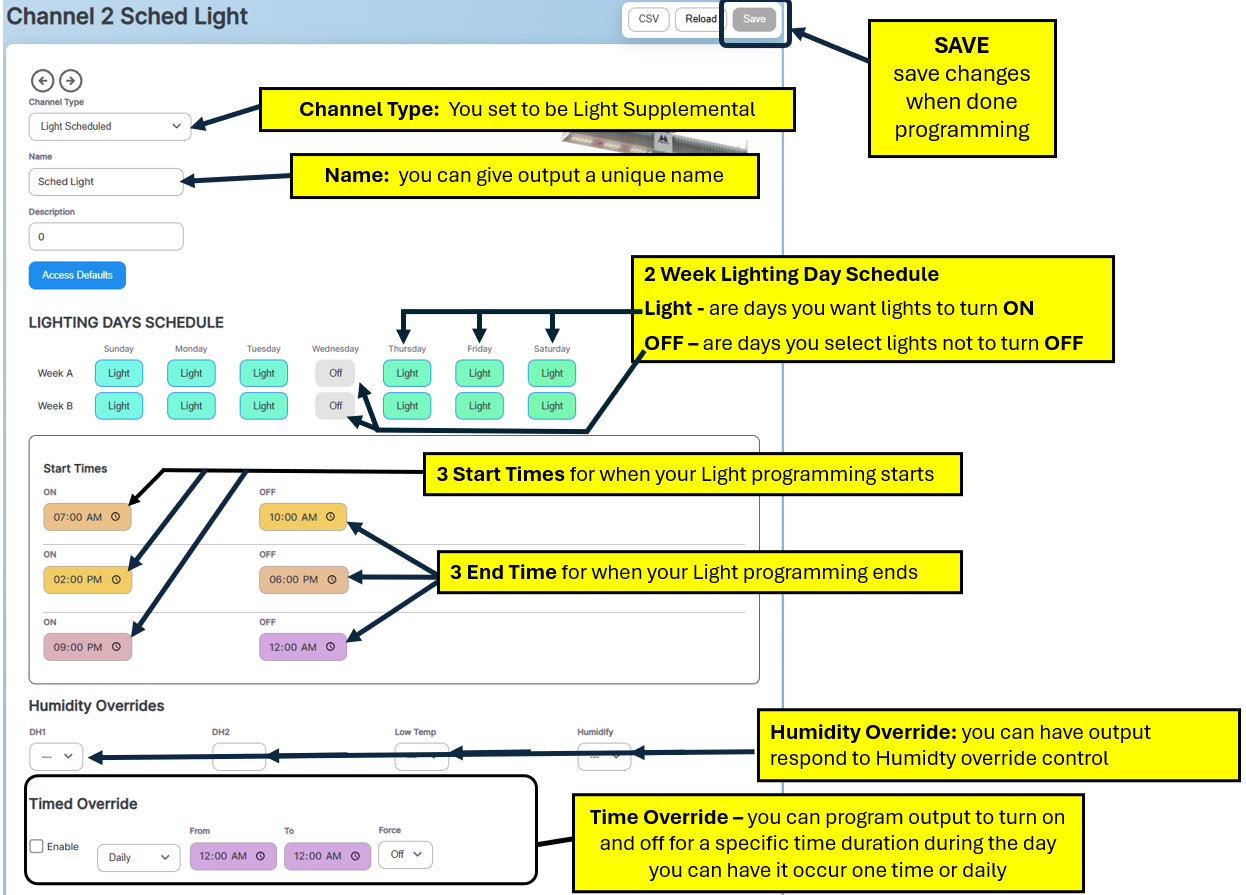

To program Scheduled light mode from Pearl Cloud Platform you would do the following:
​

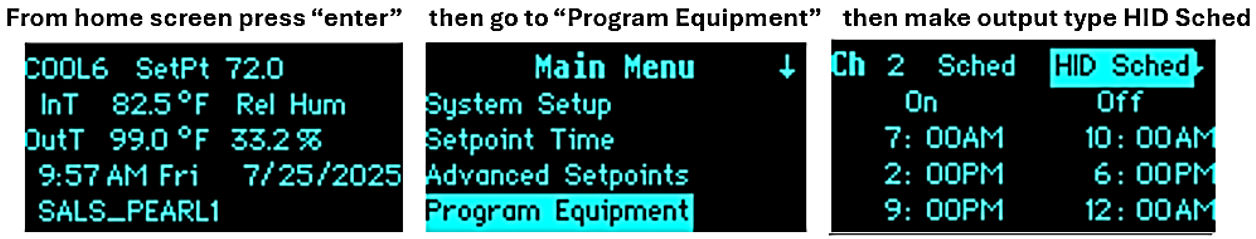

To program Scheduled light mode from Pearl Controller you would do the following:

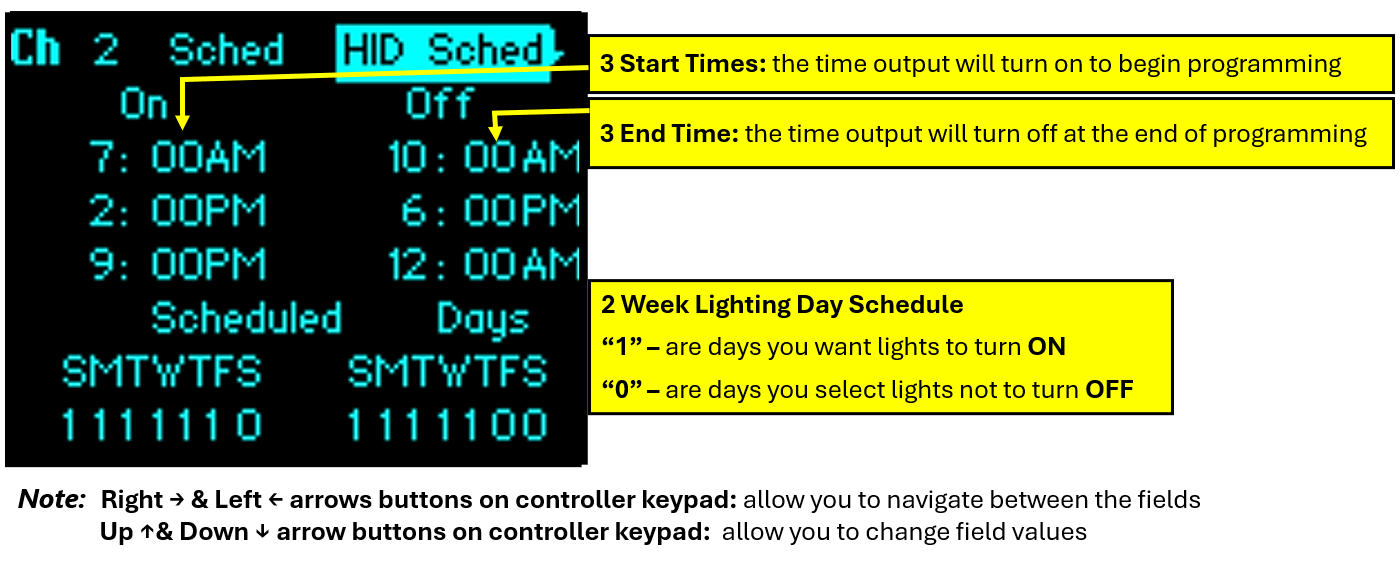

On this screen, you can see that you have up to three time periods per day to program an ON and OFF time for your lights. Just press the RIGHT or LEFT keys to navigate to the time entry you want to modify and then use the same keys to adjust the time. The next screen lets you select the days of the week for enabling your lights. This is on a two week schedule.
A “0” means the lights won’t come on for that entire day, a “1” means they will. Once you’ve pressed the Enter button, move the cursor with the RIGHT or LEFT keys. You toggle between the 0 and the 1 with the RIGHT key.
