LIGHT Equipment Programming Supplimental

LIGHT Equipment Programming Supplimental

The Pearl can be used to control lights (typically HID) in the greenhouse through Light modes found in the Menu. These are as below:
• Supplemental (HID Suppl)
• Scheduled (HID Sched)
• Cyclic (HID Cyclic)
• Daily Light Integral (HID DLI)

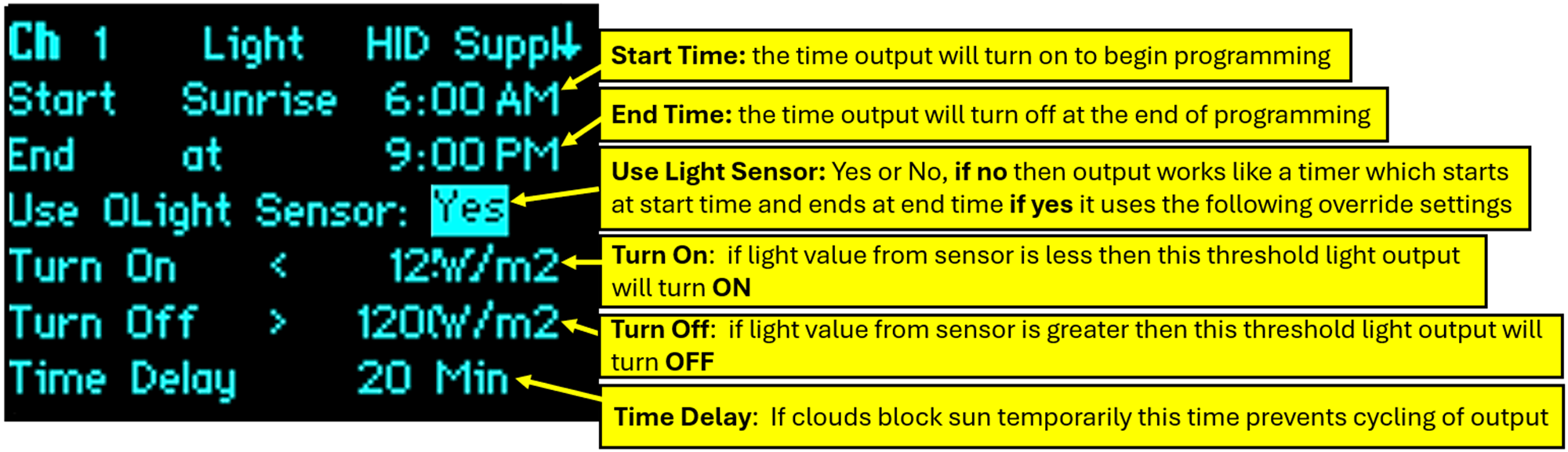

Supplemental mode is active between the Start and End times. You have the option of controlling the Start and End times based on a fixed time window or a relative time window.
If you do not have an outdoor light sensor, then the output functions as a time clock with the optional astronomical adjustment. If you do have an outdoor light sensor, you can program the Light ON/OFF/Delay overrides.


To program Suppimental Light from Pearl Cloud Platform you would do the following:

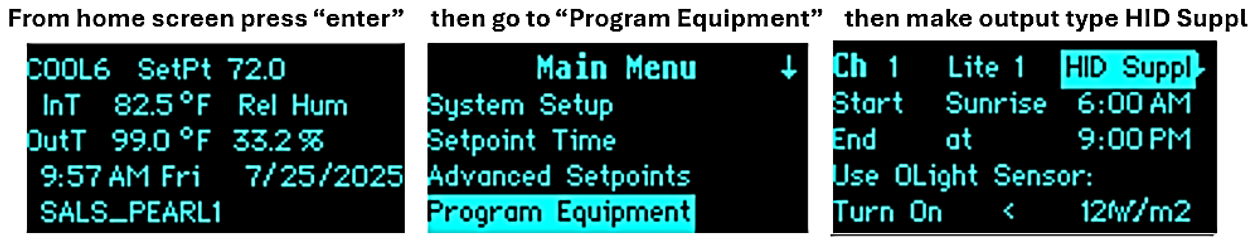

To program Suppimental Light from Pearl Controller you would do the following:
