Irrigation Programming - Scheduled Irrigation

Irrigation Programming - Scheduled Irrigation

Scheduled Irrigation mode is like a time clock where you set the start time, run time and days of the week.

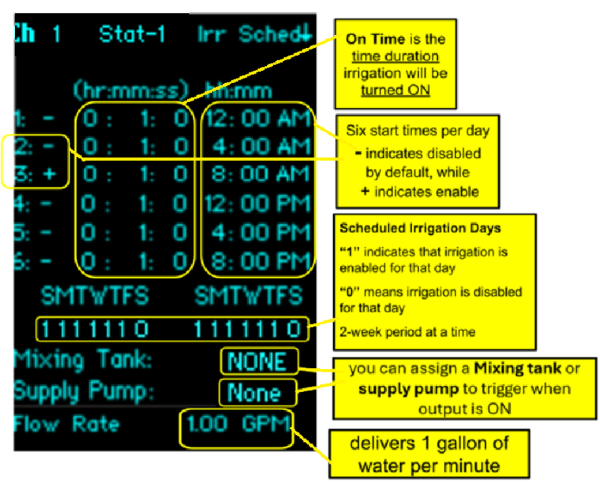

Scheduled mode allows the Hydroroot to turn the Irrigation channel on for a duration equal to OnTime at up to six start times per day. The screen allows for enabling or disabling scheduled irrigation for an entire day. A “1” indicates that irrigation is enabled for that particular day, and a “0” means irrigation is disabled for that day. Two weeks are given, so that the Hydroroot can be configured to irrigate every other day.

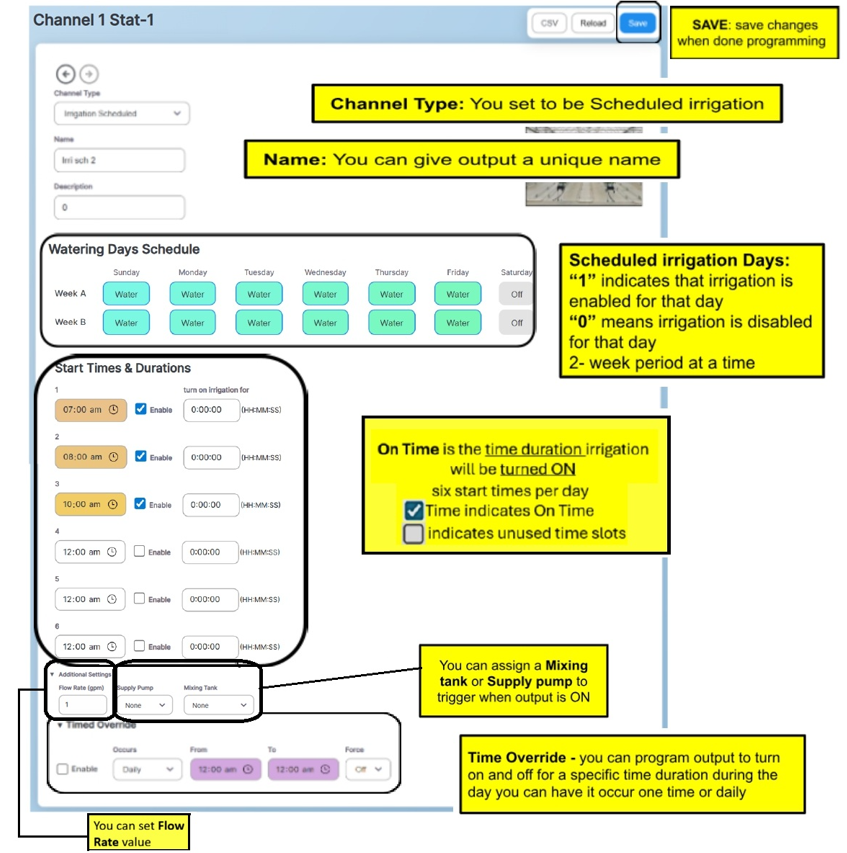

To program Scheduled Irrigation from Hydroroot Cloud Platform you would do the following:

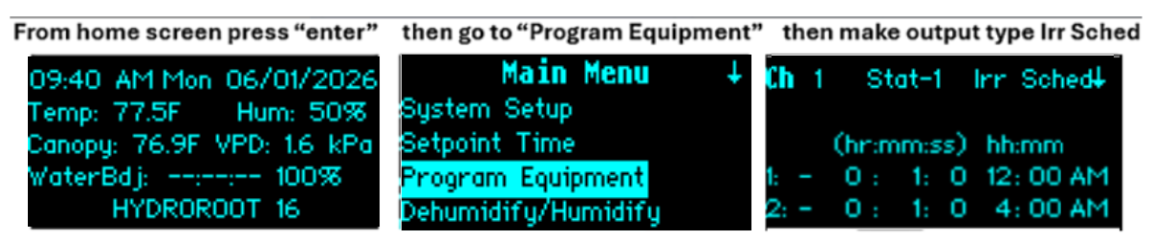

To program Scheduled Irrigation from Hydroroot Controller you would do the following:
