Irrigation Programming - Scheduled Irrigation

Irrigation Programming - Scheduled Irrigation

Scheduled Irrigation mode is like a time clock where you set the start time, run time and days of the week.

Scheduled mode allows the Pearl™ to turn the Irrigation channel on for a duration equal to OnTime at up to six start times per day. Use N:A to indicate unused time slots. The screen allows for enabling or disabling scheduled irrigation for an entire day. A “1” indicates that irrigation is enabled for that particular day, and a “0” means irrigation is disabled for that day. Two weeks are given, so that the Pearl™ can be configured to irrigate every other day.

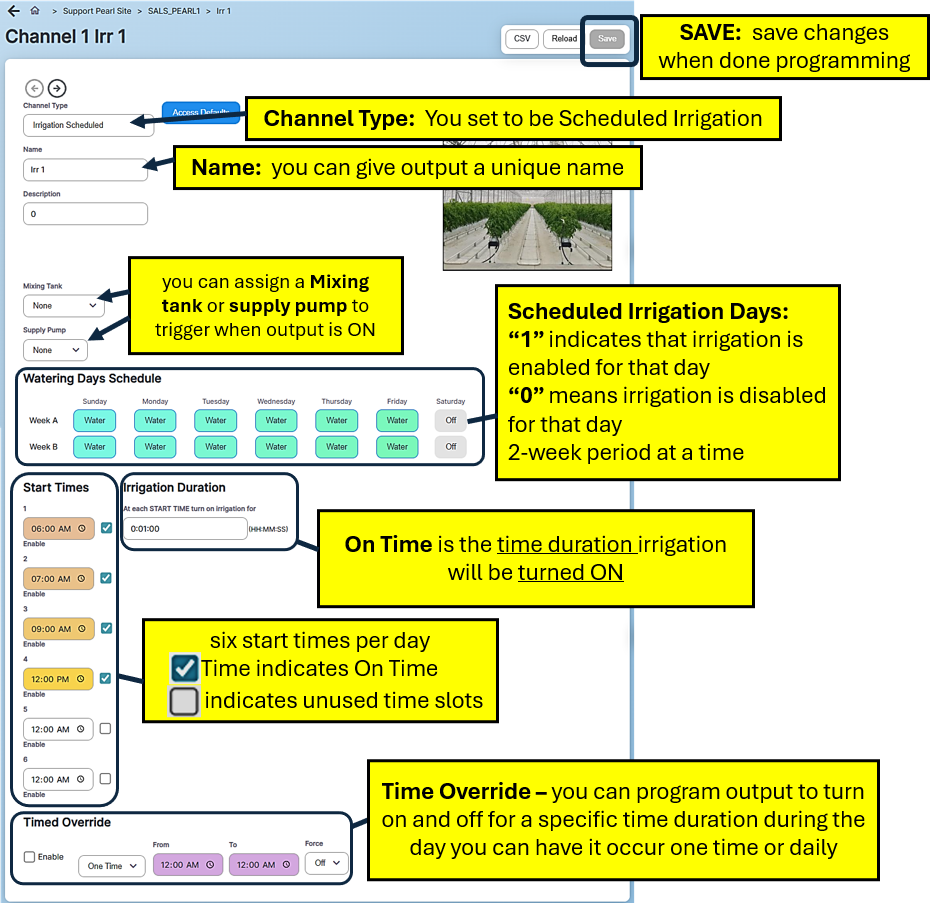

To program Scheduled Irrigation from Pearl Cloud Platform you would do the following:

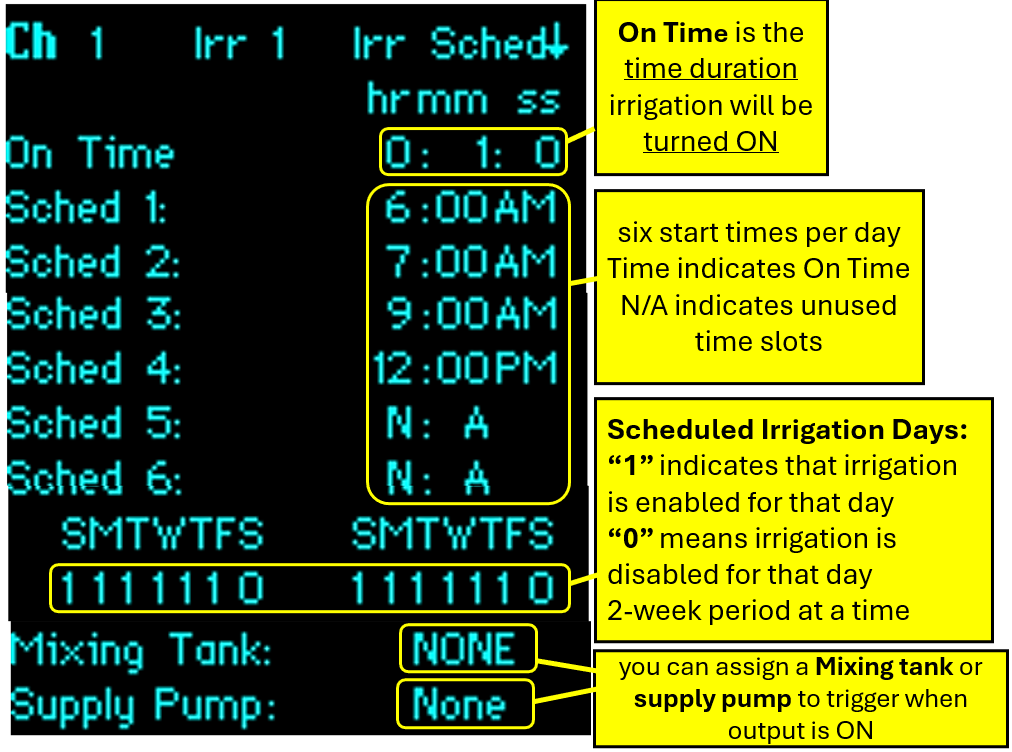

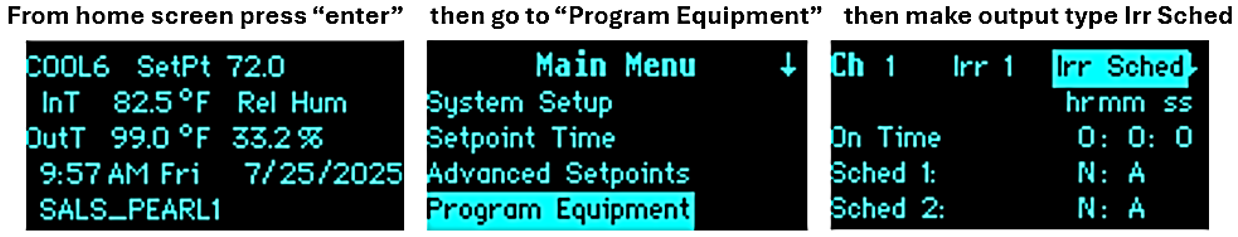

To program Scheduled Irrigation from Pearl Controller you would do the following:
