iPonic Power Issues
POWER ISSUE RESOLVE FOR IPONIC
the iPonic Controller Max Amp Load Capacity is 15 Amps
if you plan on running Hi Current draw devices you would need to use trigger boxes or think about the iPonic Commercial

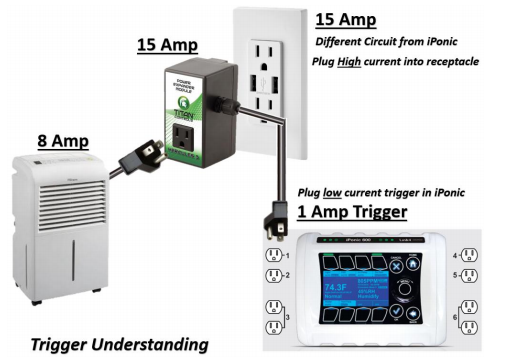

Here is an example of a trigger

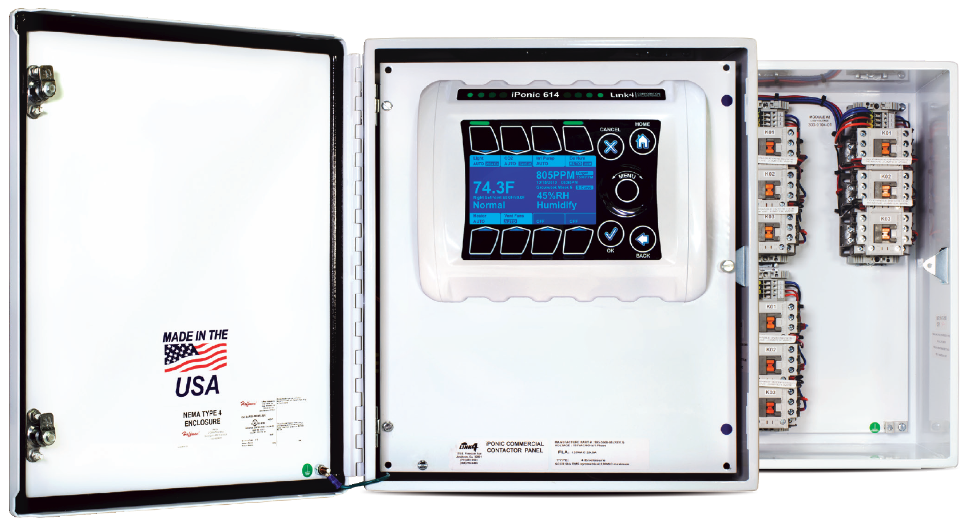

iPonic Commercial Integrated Panel

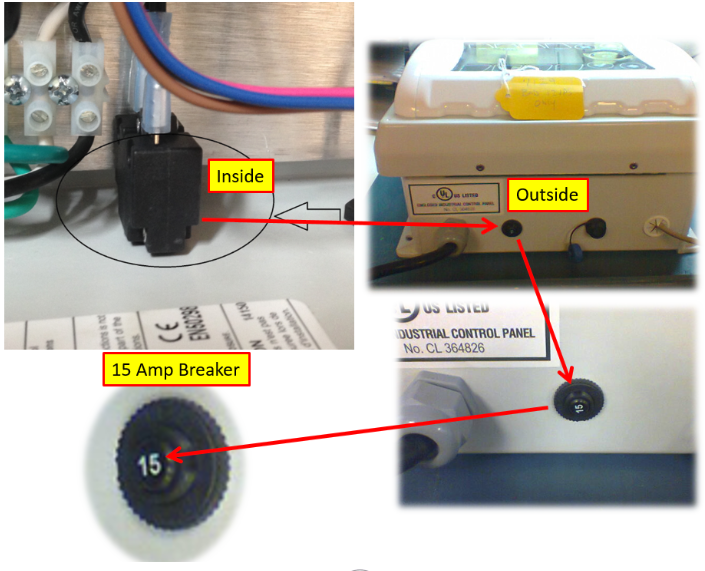

if the controller has lost its power and the LCD screen is blank, check the "15 Amp Breaker"
the push breaker to reset the controller if power goes out is located on the bottom of controller.

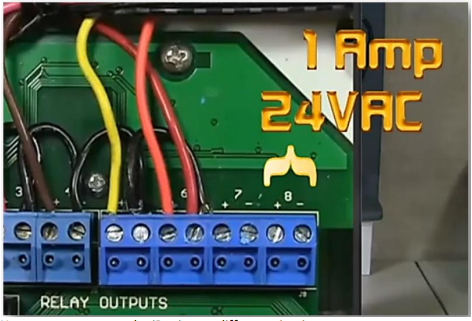

iponic 614 output 7 & 8 Dry contacts
the max that can go thru each output is 24vac / 1 Amp
