iPonic Control Strategy
It is recommended that you make copies of these sheets before using them.
They will be useful in the future should your control needs change.

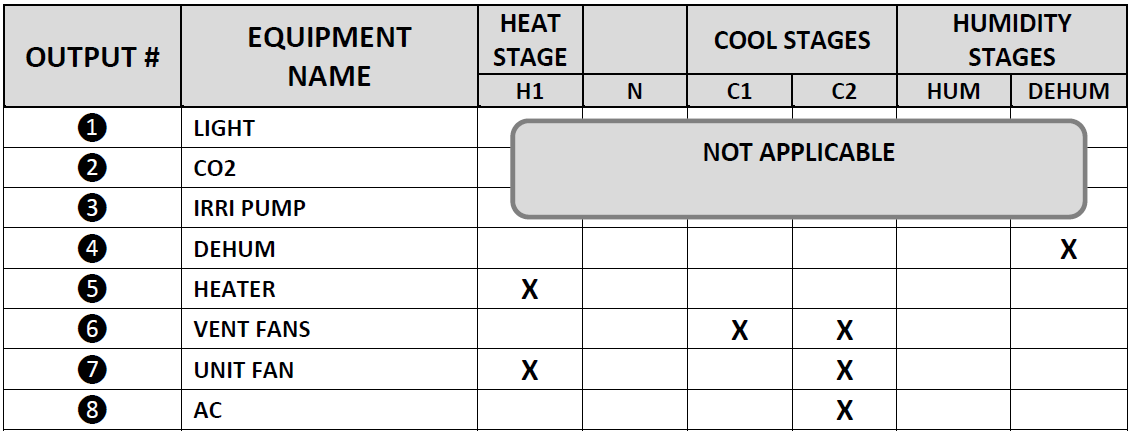

The first worksheet is for temperature and humidity controls. It should be completed as thoroughly as possible, depending on your needs.

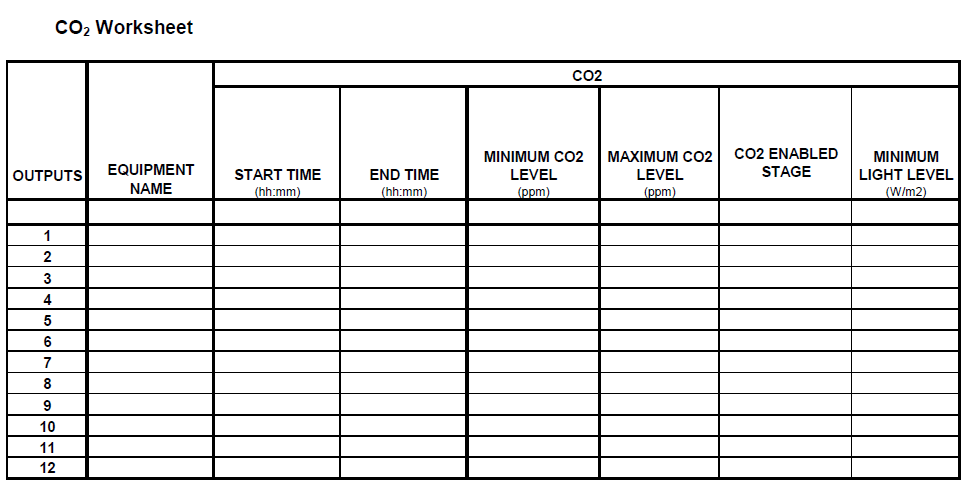

The second worksheet is for CO2 controls. Skip this worksheet if you don’t plan on regulating the amount of CO2 in your greenhouse.

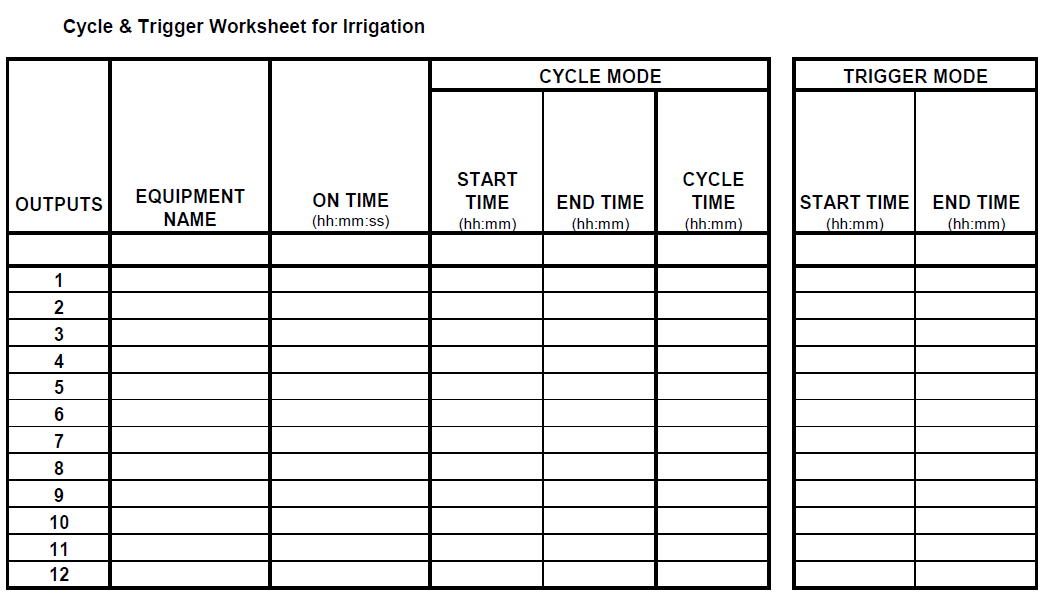

The next worksheet is for irrigation. The iPonic 614 supports 2 modes of irrigation. Please see the Programming Section of this manual for additional information on these modes. If there are no plans for irrigation or misting controls with the iPonic 614 then these worksheets can be skipped.

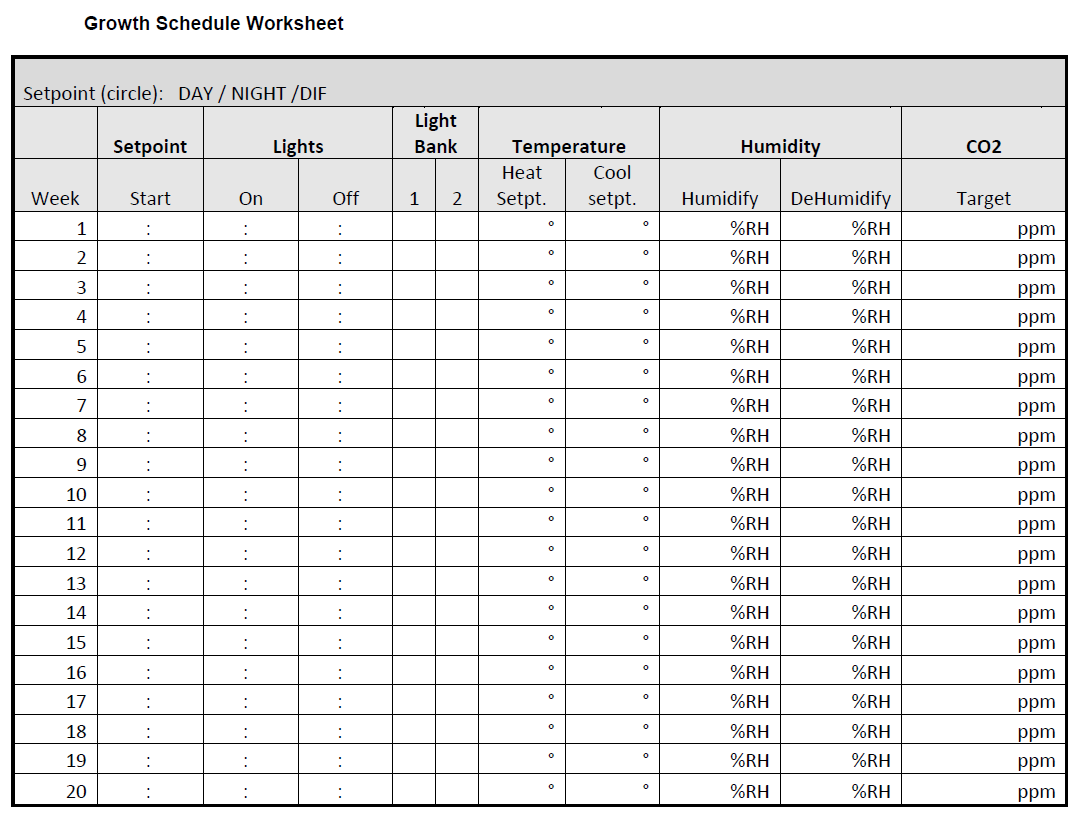

The Final Worksheet if you are going to use the iPonic 614 Growth Schedule Programming.
