iPonic 624 CO2 issues

iPonic 624 CO2 issues

THIS PRODUCT HAS BEEN DISCONTINUED AND REPLACED BY THE PEARL CONTROL SYSTEM.

https://link4controls.com/link4_controllers/

In order for us to get your CO2 working Correctly, Please view the following Video for CO2 programming and troubleshooting, and after that follow the steps provided to get your CO2 working.

IPONIC CO2 PROGRAMMING AND TROUBLESHOOTING VIDEO


Make sure 1 Channel is a LIGHT channel for effective CO2 Operation (preferably #1 default)

  • Does CO2 display AUTO “ACTIVE” (active lets you know its doing it job.)
  • What channel is his light connected to?  Can you Force on the Channel, or manualy toggle it on?
  • What channel is the CO2 on? Can you Force on the Channel, or Manually Toggle it on?

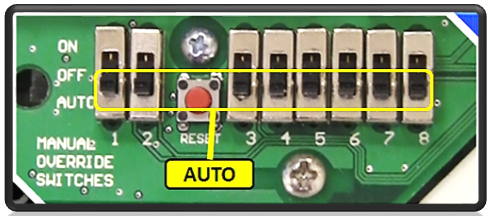

  • Make sure the Light and C02 Channel Dip Switches on back of PCB are on AUTO.
  • Make sure the Clock on the controller is set correctly?
  • Make sure the Light Settings are set to turn on with the day Set point
  • Make sure your firmware version on controller is up to date.

to check the Firmware Version of your iPonic, you would do the following on the controller.  if its not up to date please update it. please check with support with the most current version.

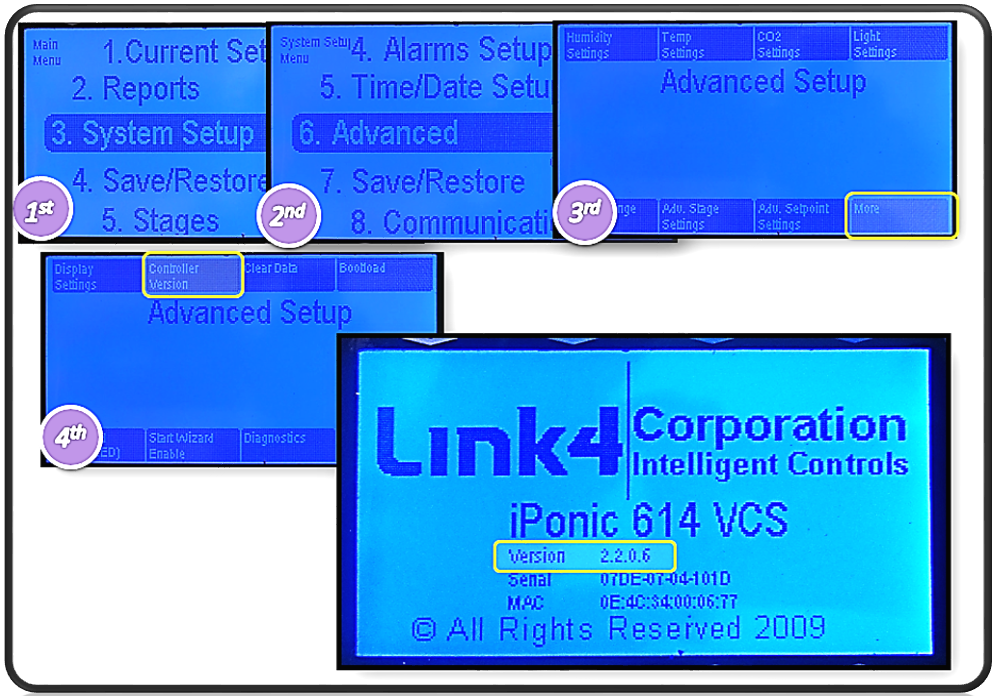

To Check Firmware

You can also send us your configuration file so we can check it on our end.

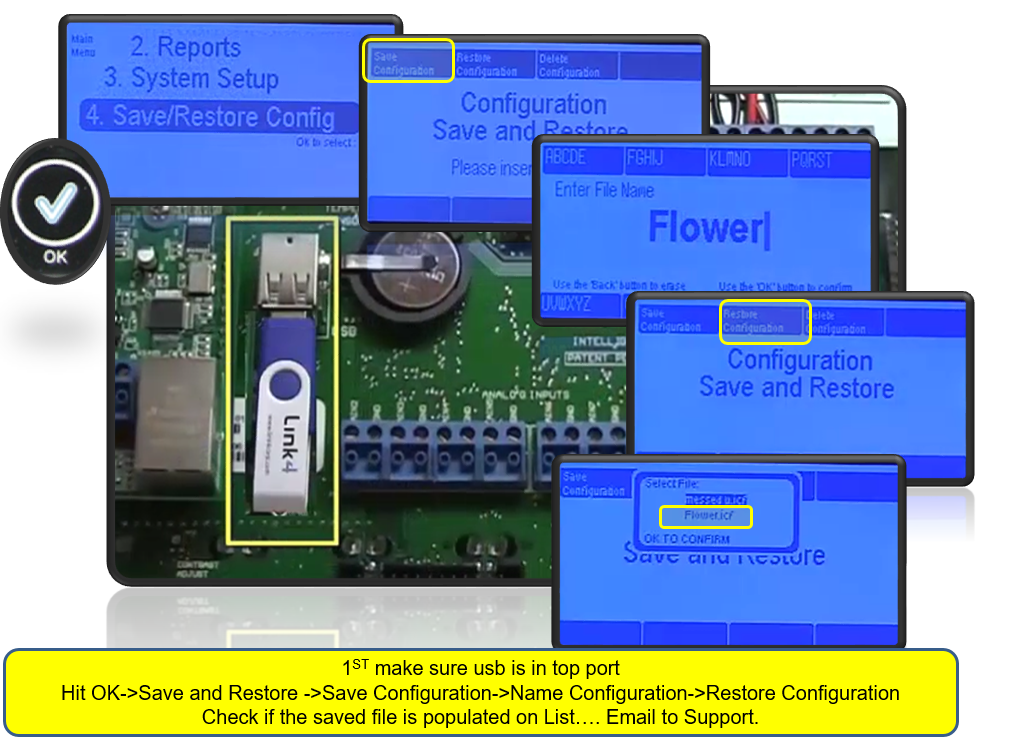

To Save Configuration or Restore Configuration



Save your configuration to a USB and then email us that file to support@link4corp.com

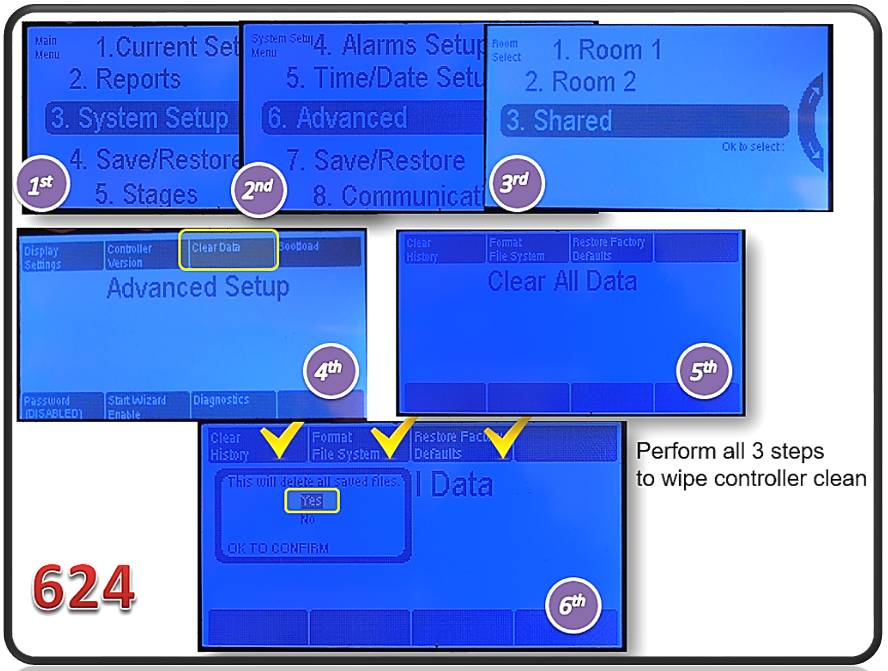

As a last resort you can always restore your controller to factory defaults to see if this resolves your issue
