iPonic 614 using Outputs 7 & 8

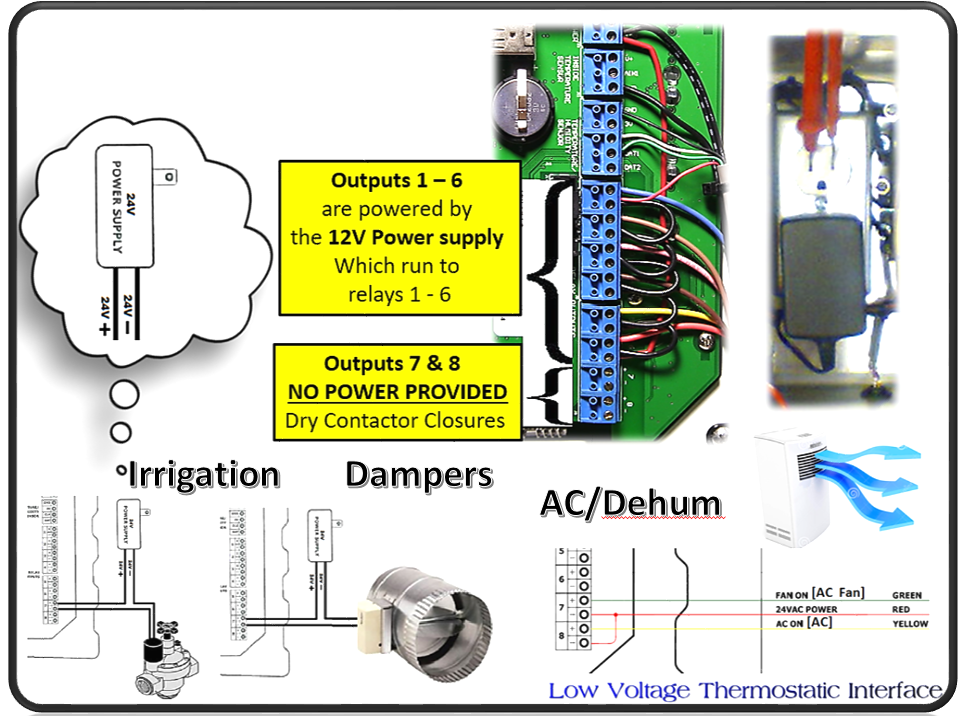

The iPonic 614 has two (outputs 7 and 8) relays that are provided as dry contacts, i.e. “switch closures. If an output is activated to ON, the switch is “closed” (shorted); and if it is activated to OFF, the switch is “open” (no continuity between the positive and negative terminals).

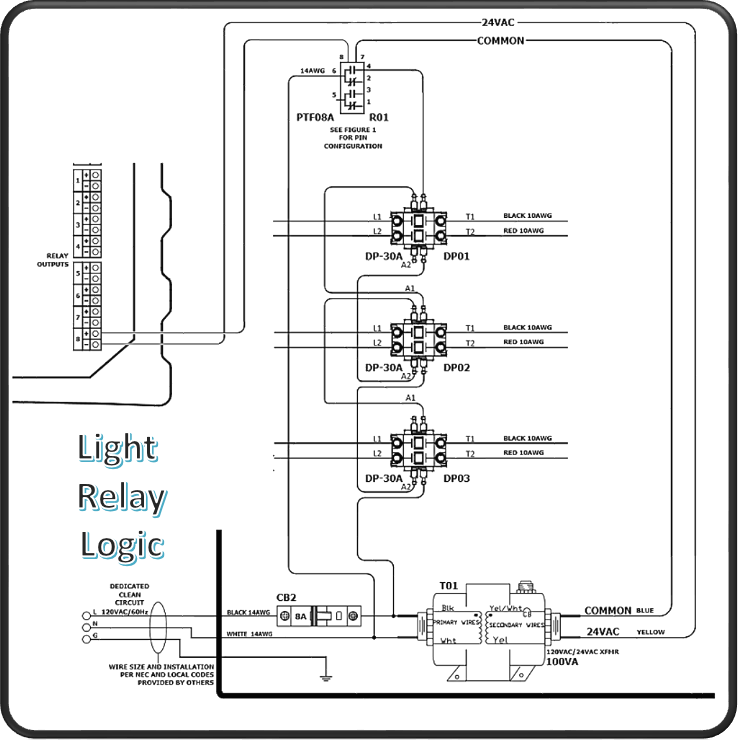

These Open outputs may be used to hard wire additional equipment just as long as you do not exceed 1 Ampere or 24 Volts for outputs 7 and 8
