Heat/Cool Setpoint Influence Factors

The Setpoint - Influence Factor is a feature designed to enable a sensor, typically outdoor temperature or light, to automatically do an adjustment of the cool temperature or heat temperature setpoint. For example, if the outdoor temperature falls below x ºF, you may want to boost the heat temp setpoint by y degrees.

Here is a video:

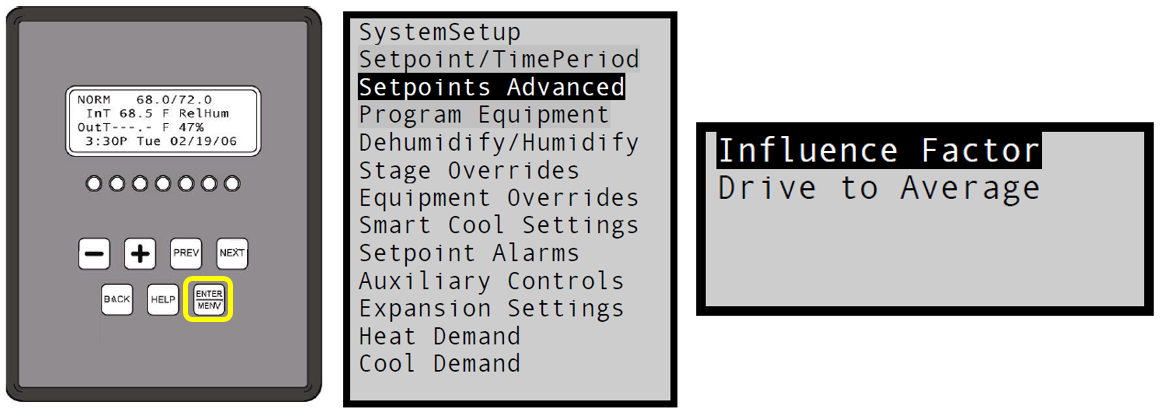

To program hit Enter/Menu-> then highlight Setpoints Advance hit Enter/Menu -> then highlight Influence Factors and hit Enter/Menu.

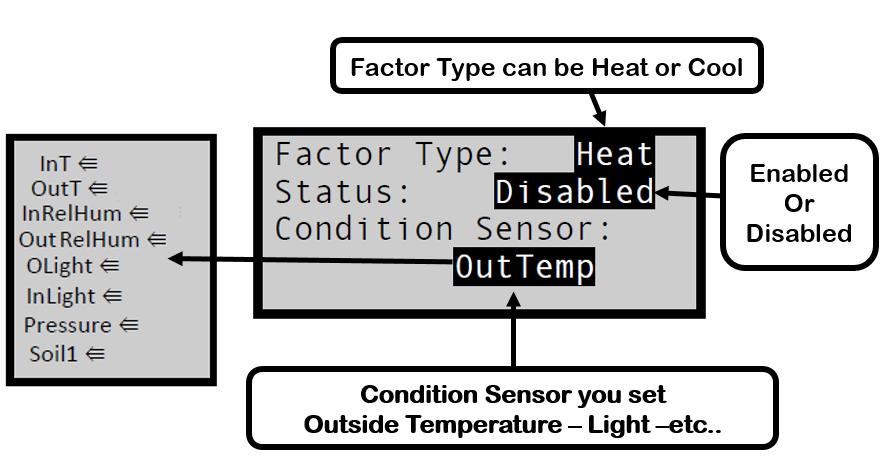

Factor Type: Select Heat or Cool Setpoints that are to be influenced
Status: Either Enable the influence or Disable it
Condition Sensor: Select which sensor that you want to drive the influence

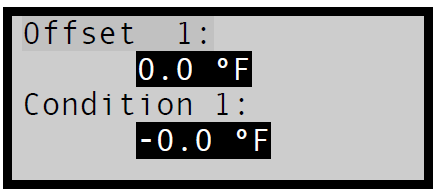

now in the final 2 programming screens you have Offset 1 & 2

Offset 1 is the setpoint adjustment if the influence sensor reading is greater than the Condition 1

Offset 2 is the setpoint adjustment if the influence sensor reading is less that Condition 2.

Here is a view of Setpoint Advance Influence Factors Programming with LinkConn 1800 Software which provides a more simpler control view.
