iGrow1400 - ON/OFF Equipment Type Programming

iGrow1400 - ON/OFF Equipment Type Programming

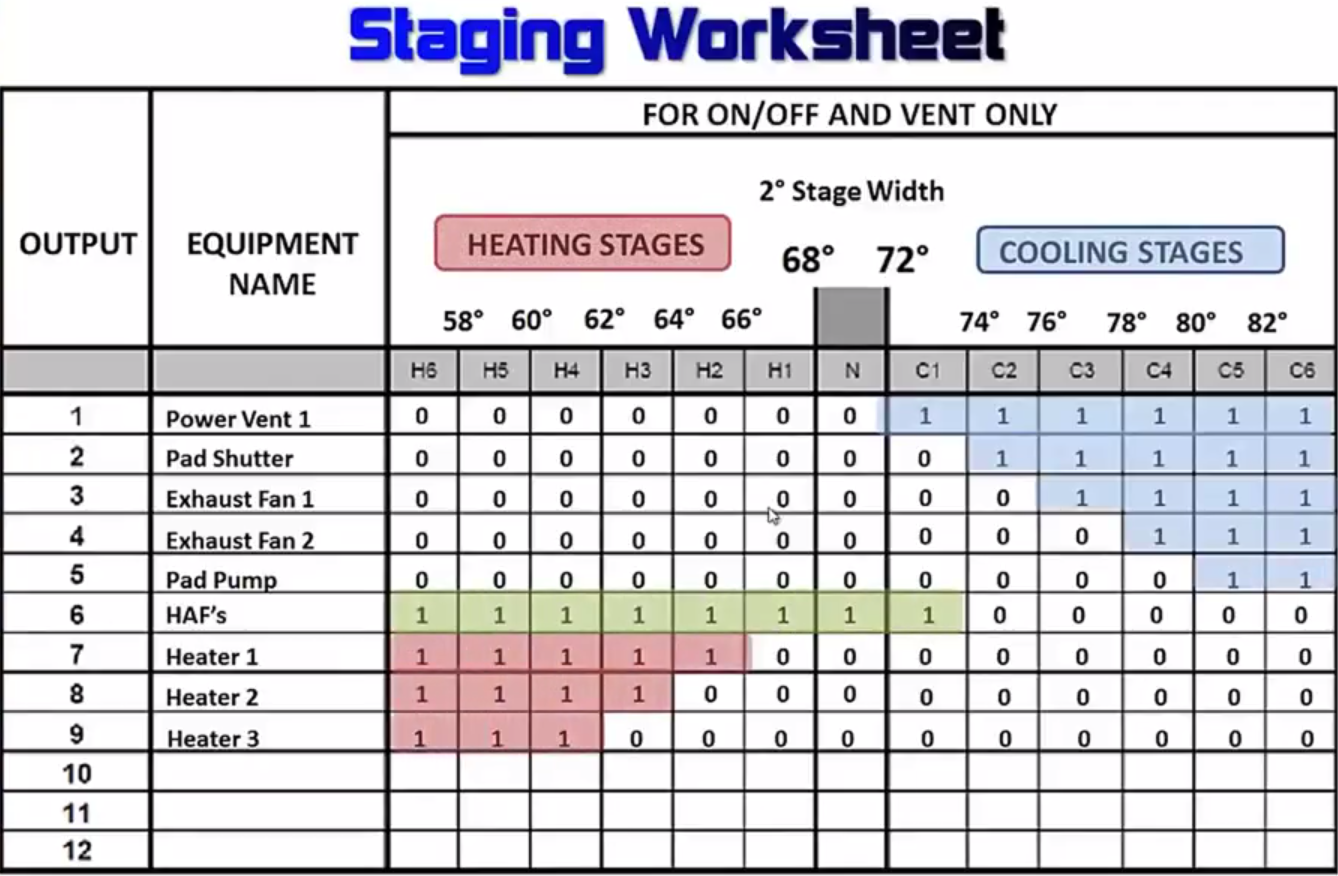

The iGrow 1400™ supports On/Off devices with up to 6 heating and 6 cooling  stages.



Here is video providing a step by step process in programming ON / OFF Equipment type devices.

iGrow 1400 ON/OFF Equipment Type Programming

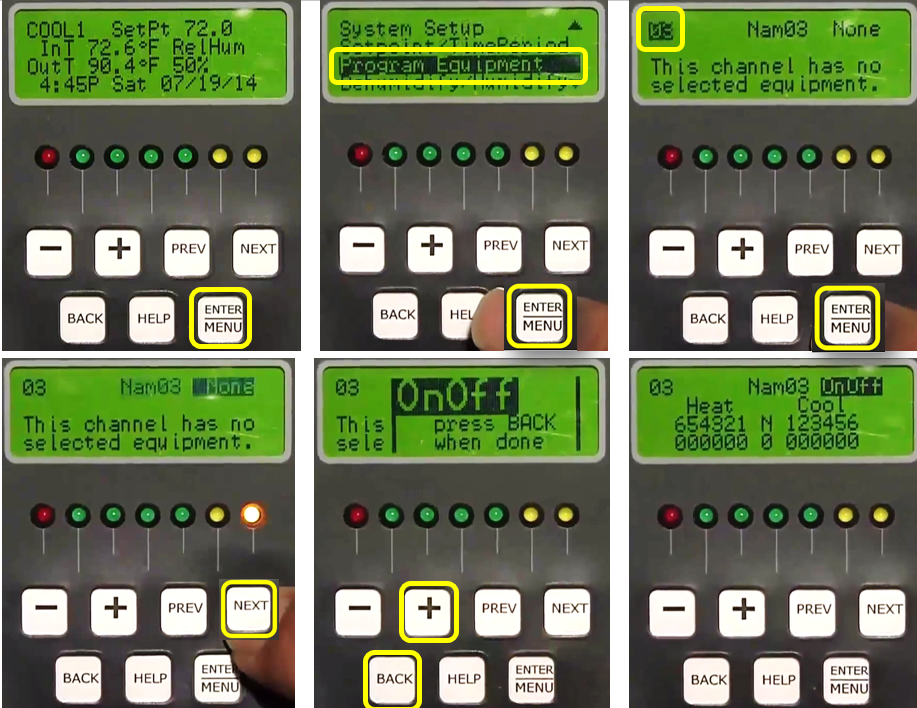

To Program your On/Off Devices from home screen hit Enter/Menu

Scroll and highlight Program Equipment hit Enter/Menu

Once in equipment programming screen hit Enter/Menu to highlight output #in left Corner

** Note + & - allows you to navigate thru the outputs 1 thru 12 **

Once you have your output # highlighted that you want to program hit NEXT to high light the NONE

Hit + to expand the NONE and + till you have OnOFF highlighted->then hit BACK button.




PREV and NEXT allows you to navigate within the programming screen + or 1 allows you to change the values within the highlighted fields

1 to turn equipment ON and 0 to turn it OFF.  Use the + or –  keys to toggle the On/Off condition for a particular stage.


 Once you have set your values hit the BACK button 3 times to save your changes.

Your ultimate objective is to decrease or increase the temperature back within the setpoints.

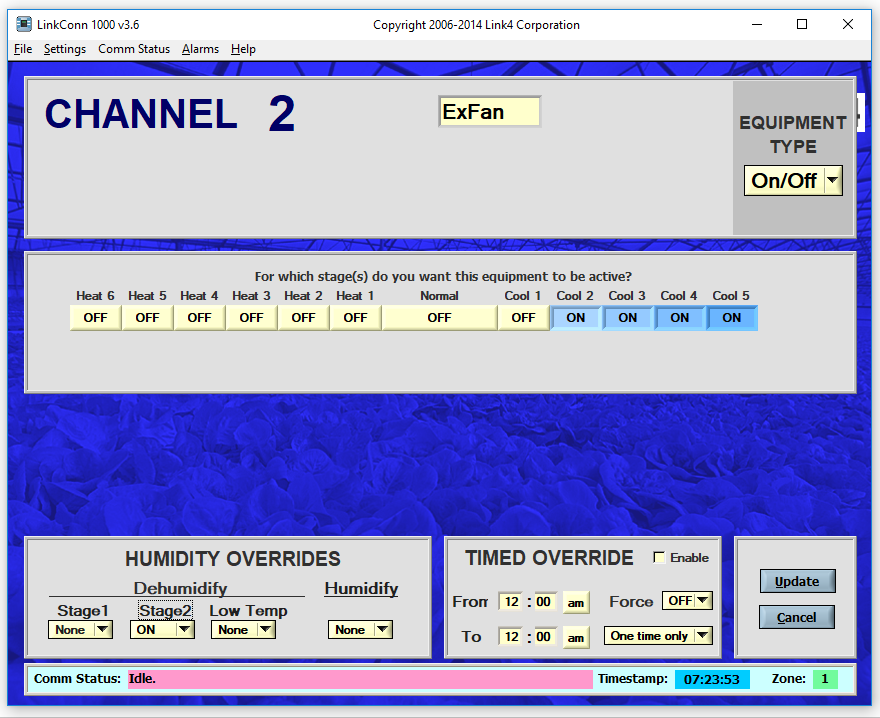

Here is a LinkConn 1000 View of your ON-OFF Equipment Type Programming Screen which provides a more simple control view.
