iGrow1400 - Cycle Temp Irrigation programming

iGrow1400 - Cycle Temp Irrigation programming

Cycle Temp Irrigation allows you to cycle your irrigation based on a temperature thresholds that triggers the cycling you set.Cycle_Temp_7.png

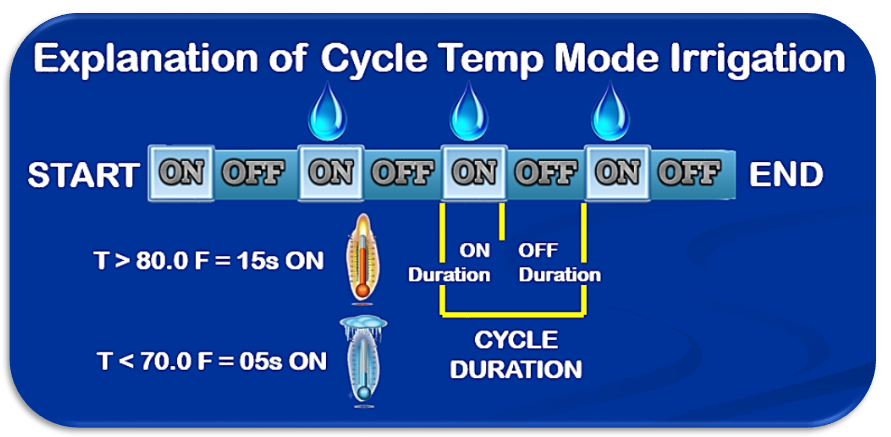

This mode still follows the cycle irrigation parameters, it has a cycle on Time, off Time , and duration time, but in addition, it gives you 2 cycle Duration Times based on 2 Temperature thresholds.


To program simply hit Enter/Menu -> Program Equipment -> Hit Enter/Menu to highlight Output -> NEXT to scroll over to Equipment type field -> hit + till you display IRR then hit Back.  Hit NEXT to highlight the MODE -> hit + till you highlight Cycle Temp.

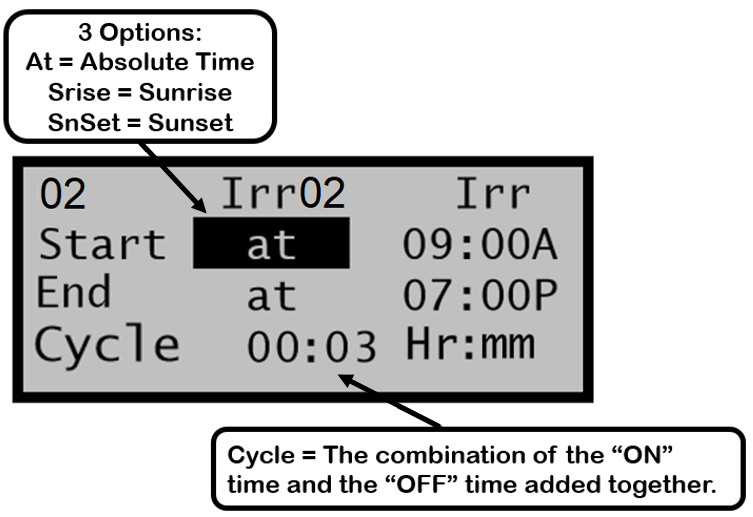

The following screen is where you set your Start Time and your End Time,  these times can be Astronomically adjusted or Absolute.  The Cycle Duration Time, is the combined ON and OFF times together.

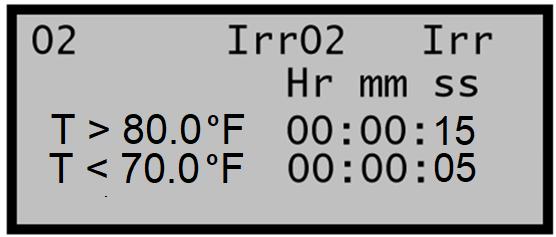

The next screen is where you set your Temperature thresholds and the On times above and below the thresholds.


If the temperature is between the thresholds, the controller uses its logic to determine the ON Time In-between the 2 setpoint values.
  • For example, if the temp is at 75 amd the cycle begins, the ON time will be 10 Sec. T=75F 00:00:10
Here is a LinkConn 1000 View of your Cycle Temp Irrigation Programming  Screen which provides a more simpler control view.
