iGrow1400 - Cycle Irrigation Programming

iGrow1400 - Cycle Irrigation Programming

With the iGrow1400 you can Program Cycle Irrigation and have your Irrigation Valves Turn on and off within a specific time window.


Here is a video, IGrow1400 programming Cycle Irrigation


To program simply hit Enter/Menu -> Program Equipment -> Hit Enter/Menu to highlight Output -> NEXT to scroll over to Equipment type field -> hit + till you display IRR then hit Back.  Hit NEXT to highlight the MODE -> hit + till you highlight Cycle.

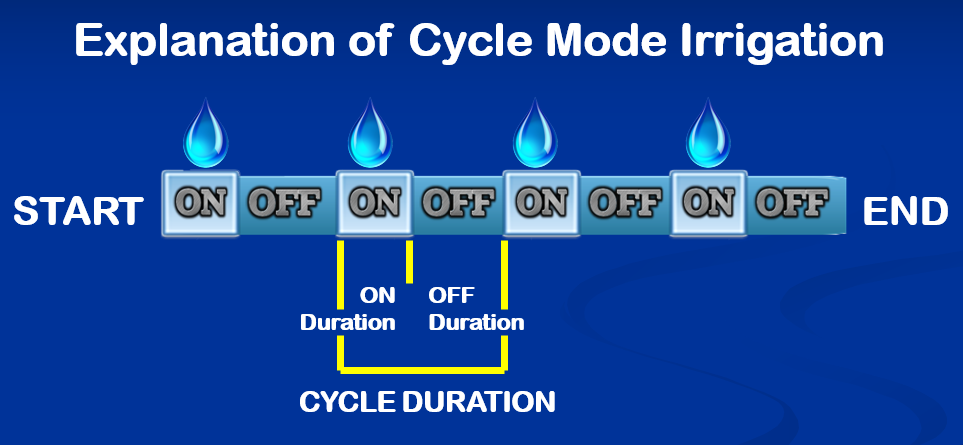

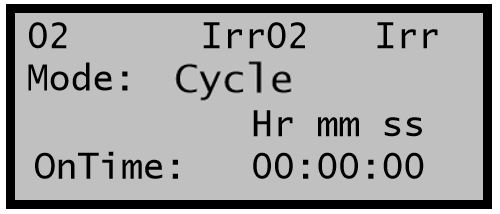

When you select this option you will get the following screen: The cycling option is for turning on and off a valve at some repetition rate during a time window.  As with the other options, your first entry is the OnTime for the valve.

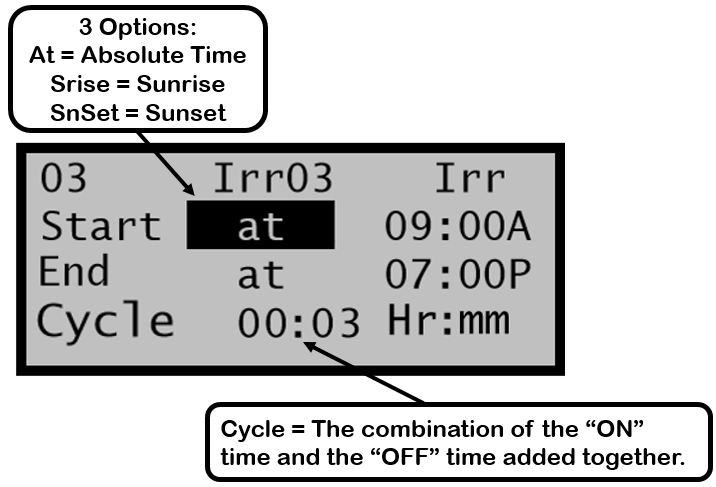

In the second screen you will set the time window with Start and End times.  The start and end times can be fixed or they can be related to Sunrise or Sunset, if you like.  You can cycle through the three options by pressing the + key when the cursor is over the at.

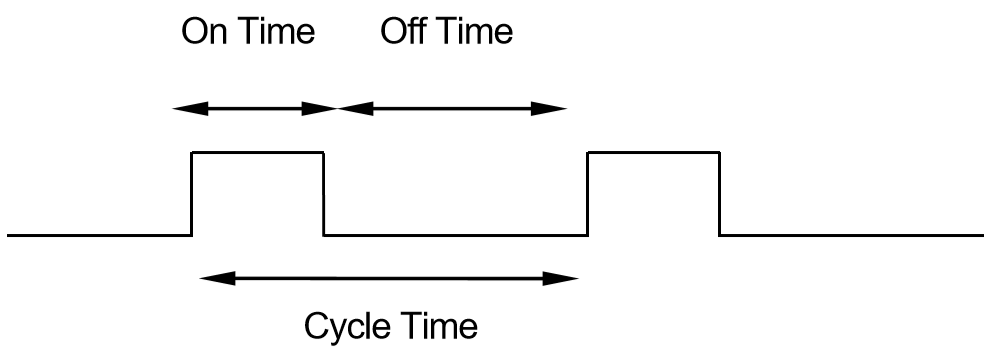

The Cycle Time is the combination of the On time and the Off time added together.

Here is a LinkConn 1000 View of your Cycle Irrigation Programming  Screen which a provides a more simpler control view.
