iGrow 800 - Staging Equipment - for Temp & Humidity

iGrow 800 - Staging Equipment - for Temp & Humidity

With The iGrow 800, you can Assign Temperature and Relative Humidity Stages for your equipment to control your environment.


Click below for a tutorial on staging iGrow 100 equipment for temperature and humidity.

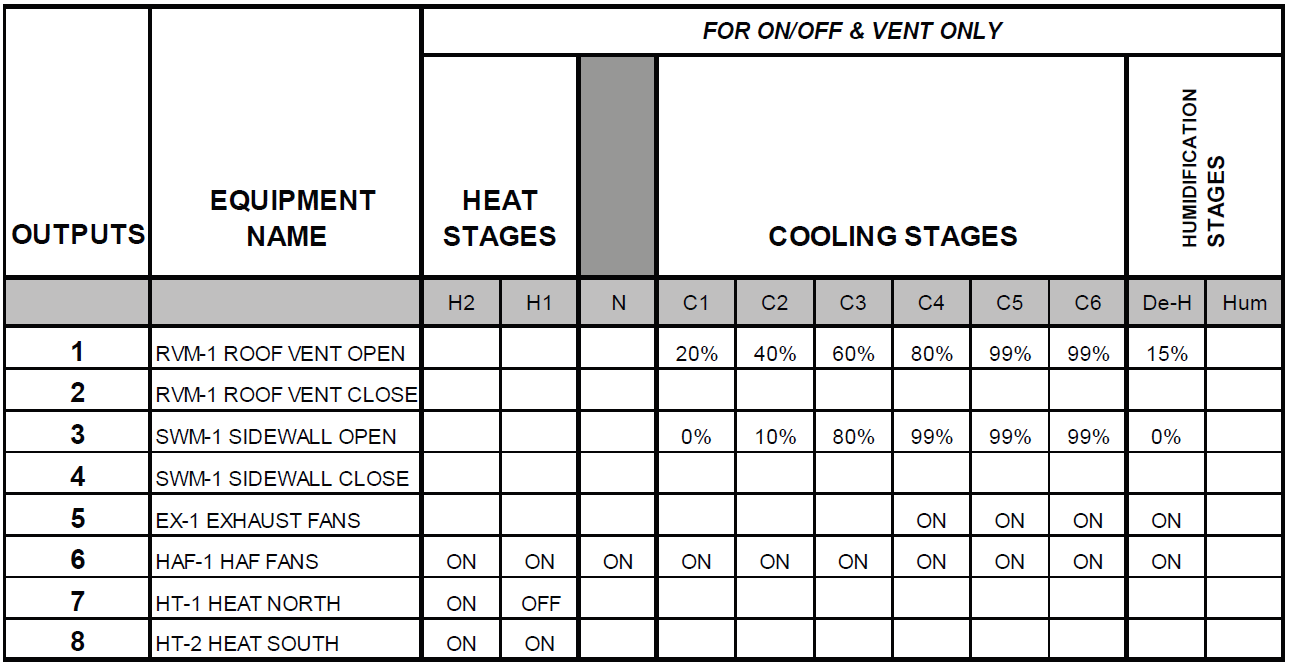

 There are 9 temperature stages and 4 humidity stages.

• Temp Stages

There are 2 heating (H1, H2) and 6 cooling (C1, C2, C3, C4, C5, C6) stages.
The normal stage(N) is when neither heating nor cooling is required. C1 is the lowest stage
of cooling and C6 the highest while H1 is the lowest heating stage and H2 is the highest.

• Humidity stages

There are 4 stages: Normal, Humidify, Dehumidify, and Cold Dehumidify.

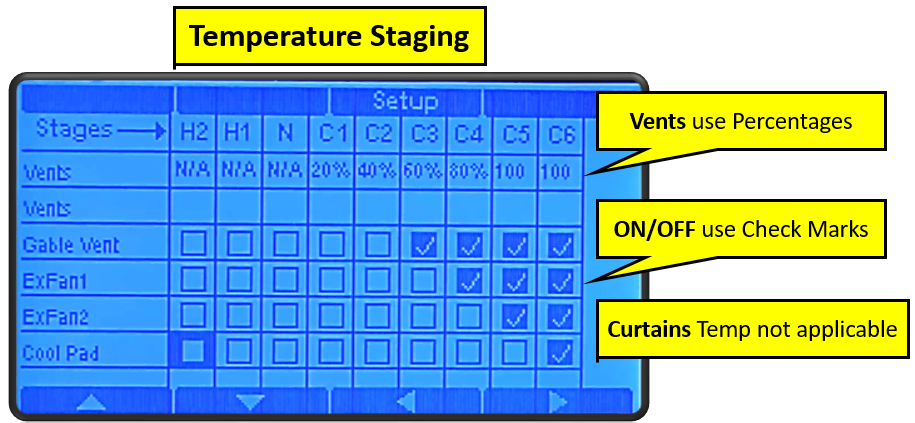

 TEMPERATURE

For On/Off Devices: Unchecked Boxes: Means device is off for that stage
Checked Boxes: Means device is on for that stage
For Vents: 0%: indicates that vent is closed for that stage
99%: indicates the vent is fully open for that stage

For Curtains: The temperature stages are not applicable.

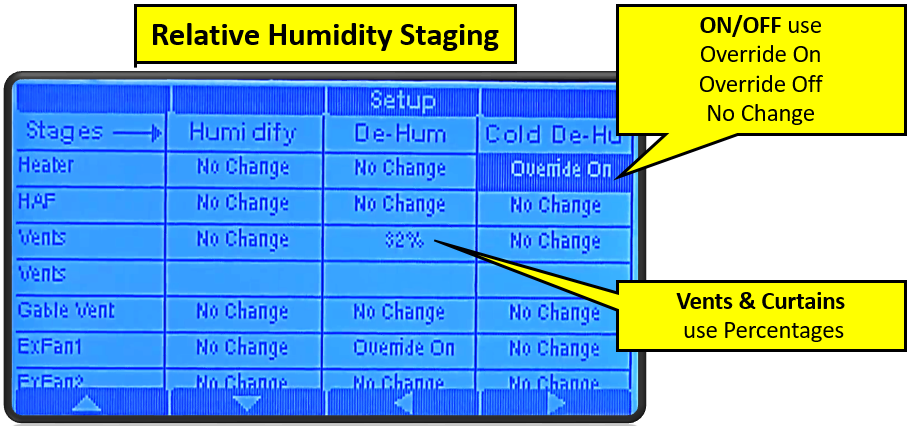

RELATIVE HUMIDITY

For On/Off Devices: your options are either Override ON, Override OFF, or NO CHANGE (which is you are not using this device for this particular stage)

For Vents: 0%: indicates that vent is closed for that stage
99%: indicates the vent is fully open for that stage

For Curtains: 0% indicates that Curtain is Open (Un-Covered) for that stage                                     99%: indicates that the curtain is full closed (Covered) for that stage

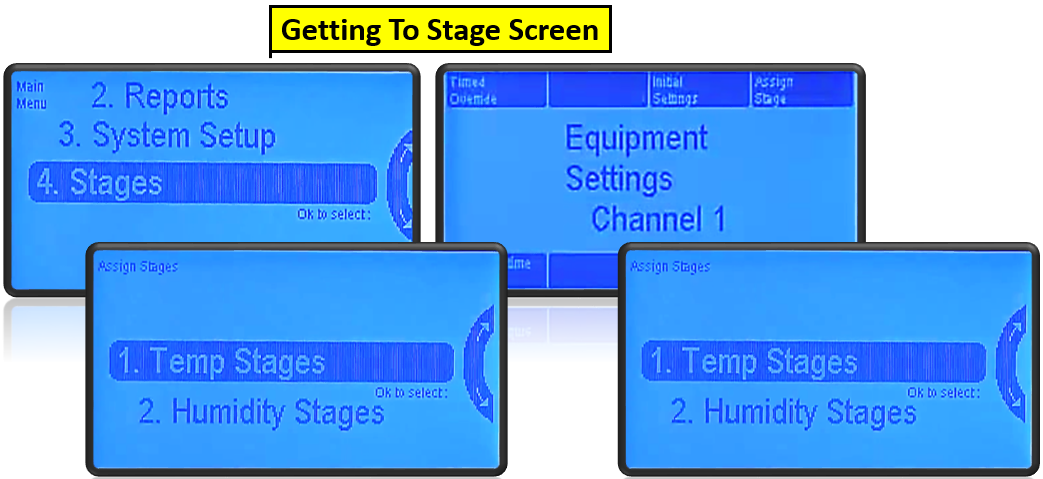

You can Assign Stages on the Main Setup Screen or you can Assign Stages on the Equipment Settings Screen
