iGrow 800 - Integrated Panel Understanding

iGrow 800 - Integrated Panel Understanding

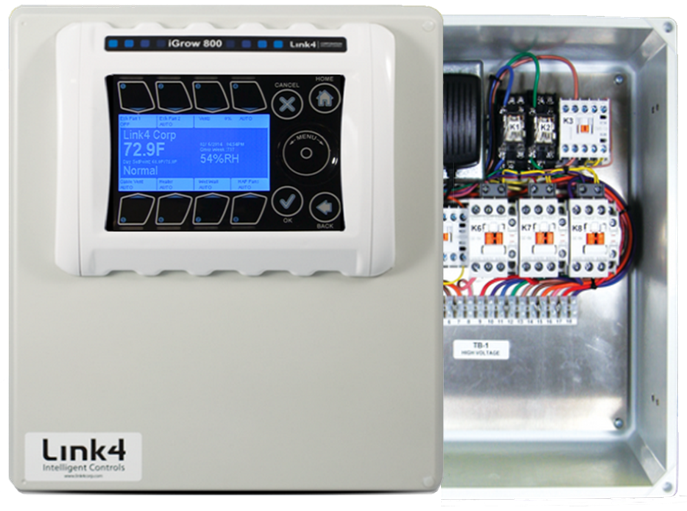

Here some information to give you some assistance with your iGrow 800 Integrated panel wiring


Here is a quick video Link on the iGrow 800 Series Integrated Panel Overview

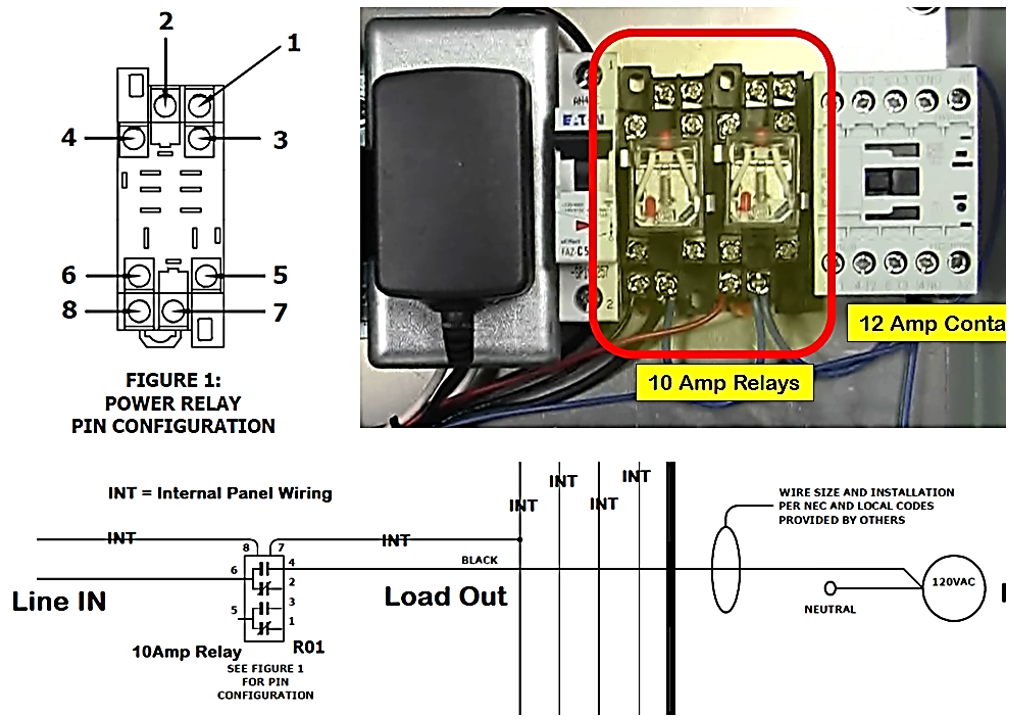

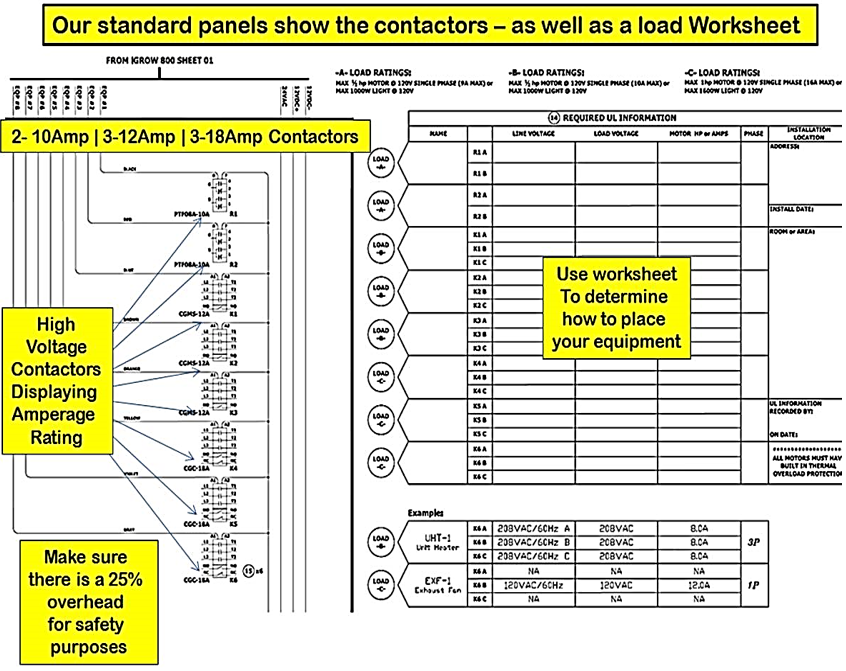

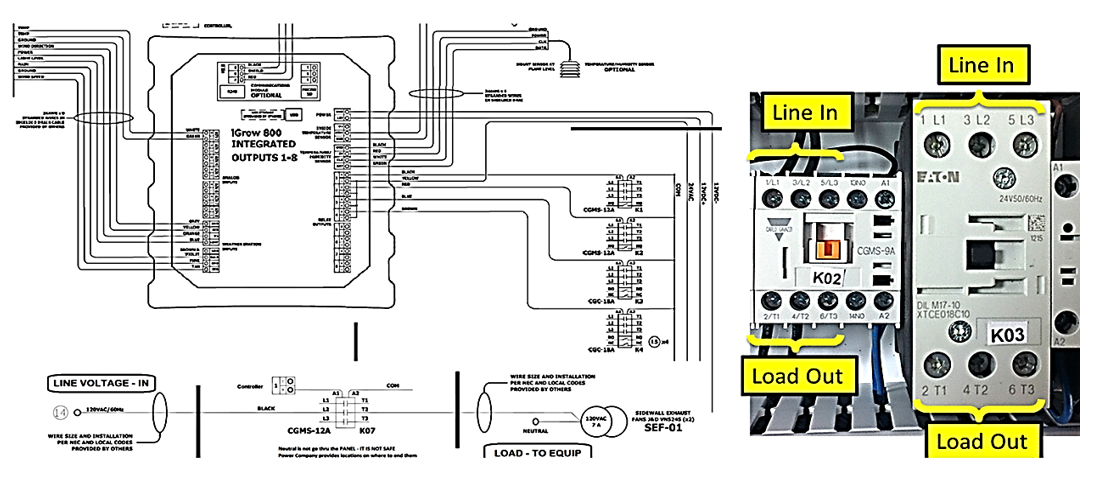

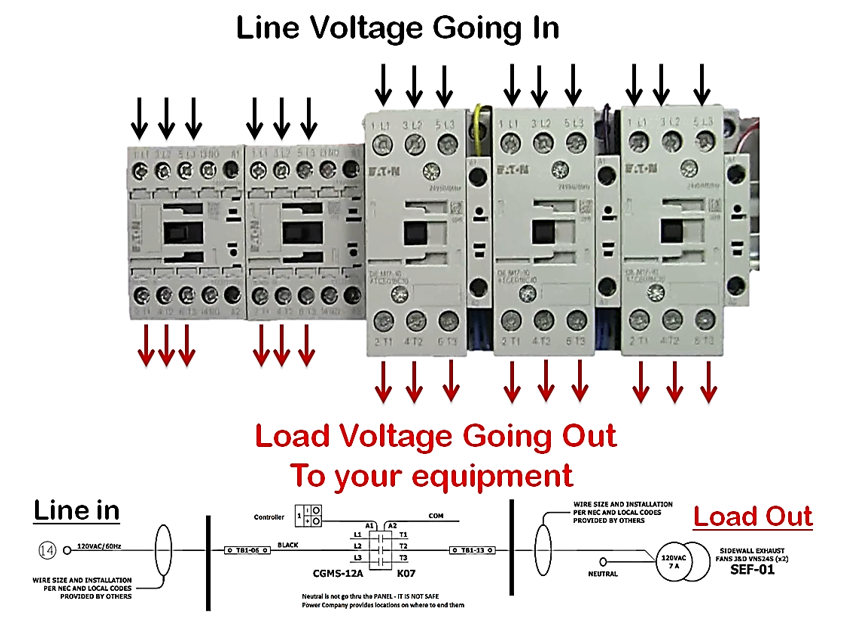

All of our contactors and Relays on our standard panels you would Line and Load your Power, everything else is integrated.

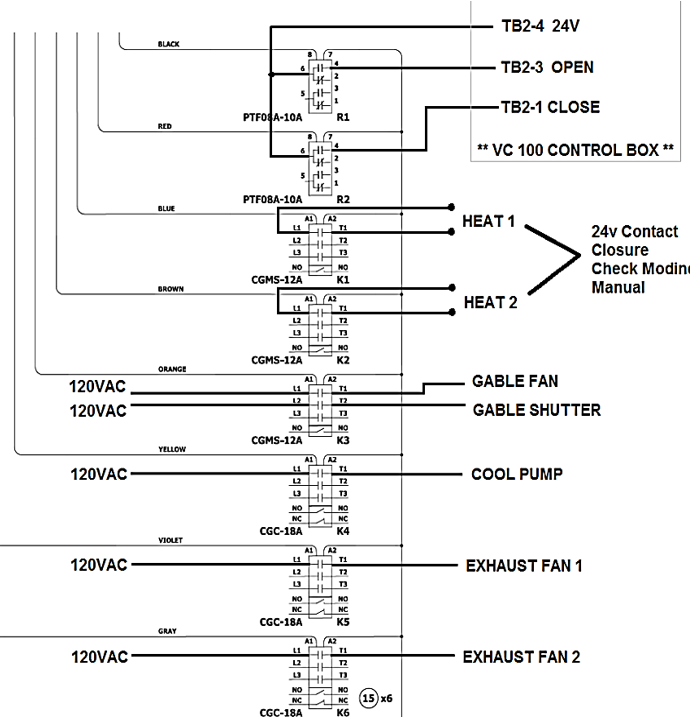

Here is an example of equipment tied wired to the Panel
