iGrow 800 - Integrated Panel Overview

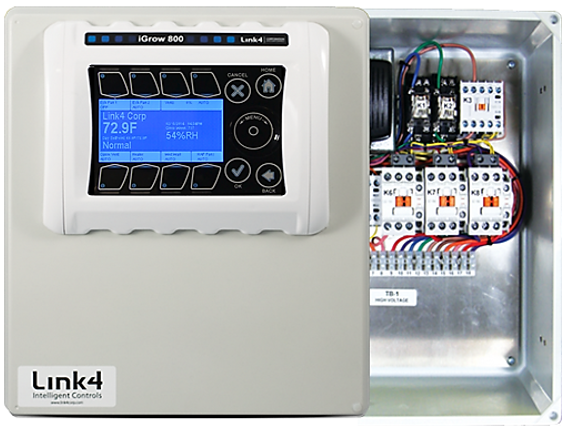

The iGrow 800 Integrated Contactor Panel is a UL approved greenhouse contactor panel and an iGrow 800 controller, conveniently pre-mounted on the door for ease of installation. There's no need to mount two separate boxes with conduits in between. Pre-wiring between the controller and the high voltage contactors further reduces installation time.
Here is a Video Overview of the iGrow 800 Series Integrated Panel Overview

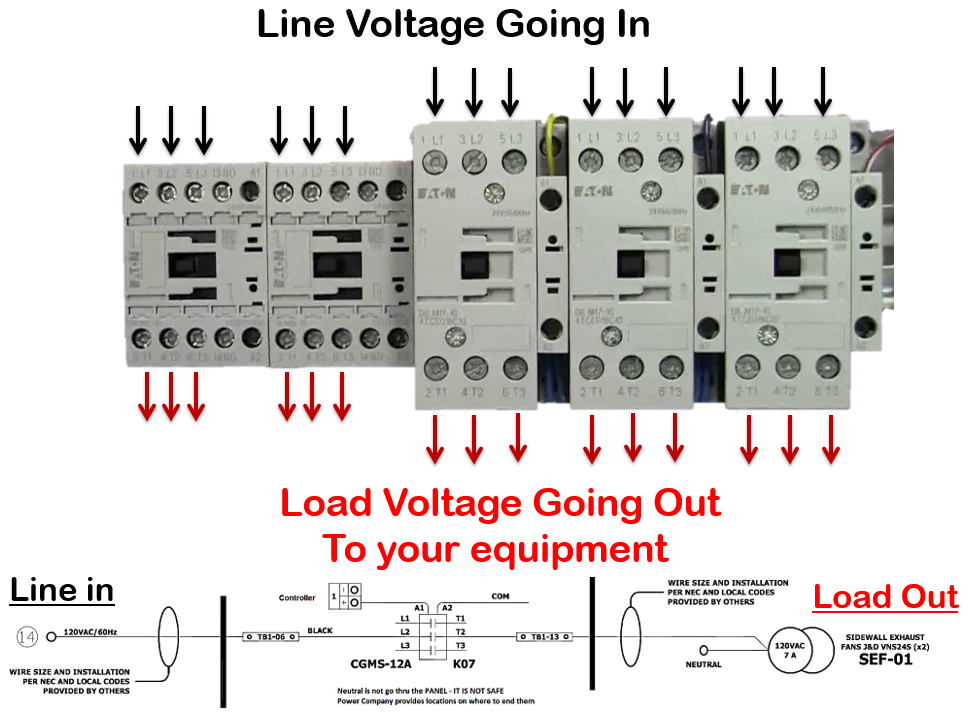

Once you have your Dedicated Circuit powering the panel, all you have to do is line and load your Equipment, Test the equipment's operation with manual dip switch on back of controller, and then its ready for programming.
Each Integrated Panel comes with a Contactor layout sheet as well as a Load Worksheet
