iGrow 1400 - Scheduled Irrigation Programming

iGrow 1400 - Scheduled Irrigation Programming

With the iGrow1400 you can Program Scheduled Irrigation to turn the Irrigation channel on for a duration equal to OnTime at up to six start times per day. and have your Irrigation Valves Turn on and off within a specific time window.

Here is a video link - iGrow 1400 Scheduled Irrigation Programming

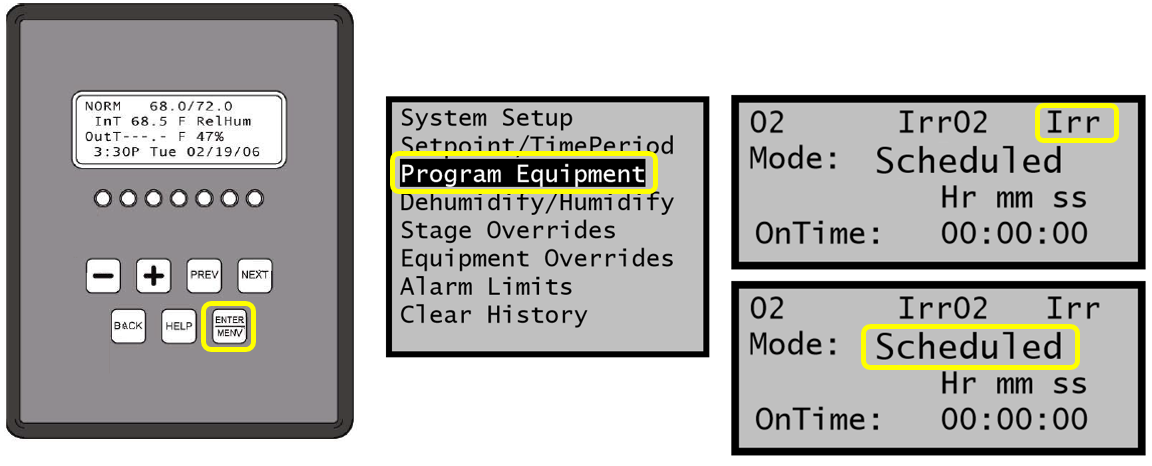

To program simply hit Enter/Menu -> Program Equipment -> Hit Enter/Menu to highlight Output -> NEXT to scroll over to Equipment type field -> hit + till you display IRR then hit Back.  Hit NEXT to highlight the MODE -> hit + till you highlight Scheduled.

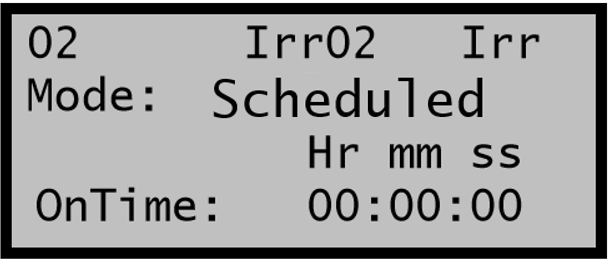

on the 1st screen you program the OnTime which would be your watering duration time.


On the 2nd screen you would use set your irrigation times.  you would use PREV or NEXT to navigate between fields and + or - to change the time values. you can have up to 6 watering times within a 24hour period, NA is a  time slot that  is not being used.

NOTE:  These times are not astronomically Adjustable.



The 3rd screen allows for enabling or disabling scheduled irrigation for an entire day.  A “1” indicates that irrigation is enabled for that particular day, and a “0” means irrigation is disabled for that day.  Two weeks are given, so that the iGrow 1400™ can be configured to irrigate every other day.
Here is a LinkConn 1000 View of your Cycle Light Irrigation Programming  Screen which a provides a more simpler control view.
