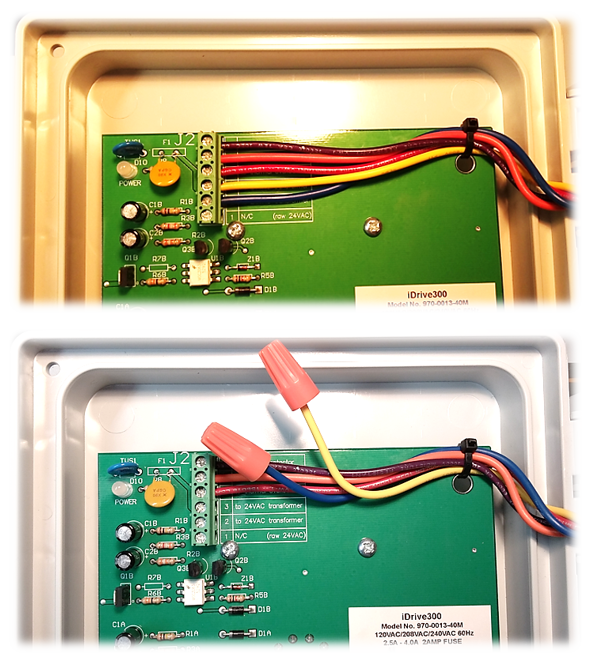

To convert your Master IDrive into a Slave iDrive you would open the iDrive Door and on the backside of the Door on the J2 Portion of the PCB on the top left corner, you would pull the Yellow and Blue wire and cap independently
