iDoser - Setting Up EC/PH Sensors

iDoser - Setting Up EC/PH Sensors

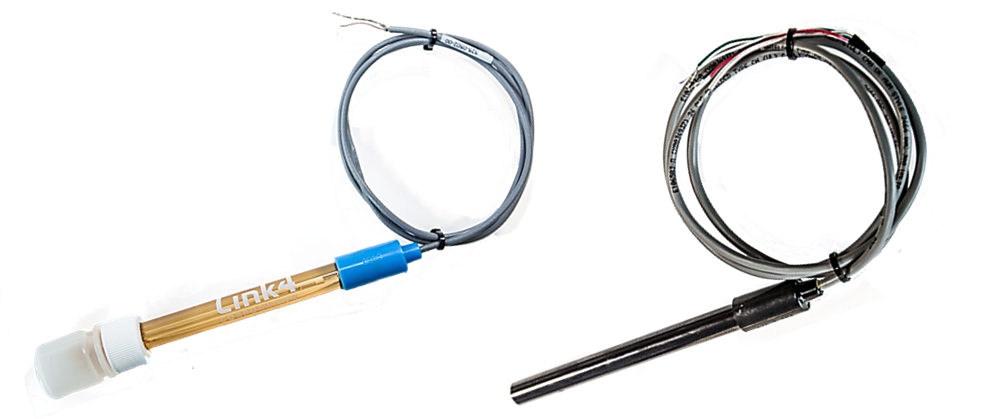

Once you have your EC/pH Transmitter board installed, you need to set up your EC & PH Sensors



Here is a video -

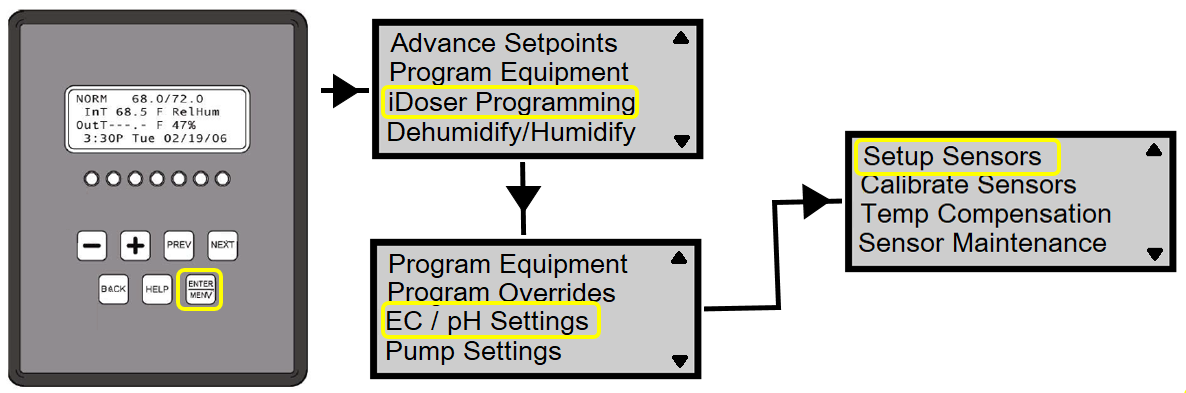

To Program, hit Enter/Menu-> iDoser Programming -> EC / pH Settings -> Setup Sensors ->

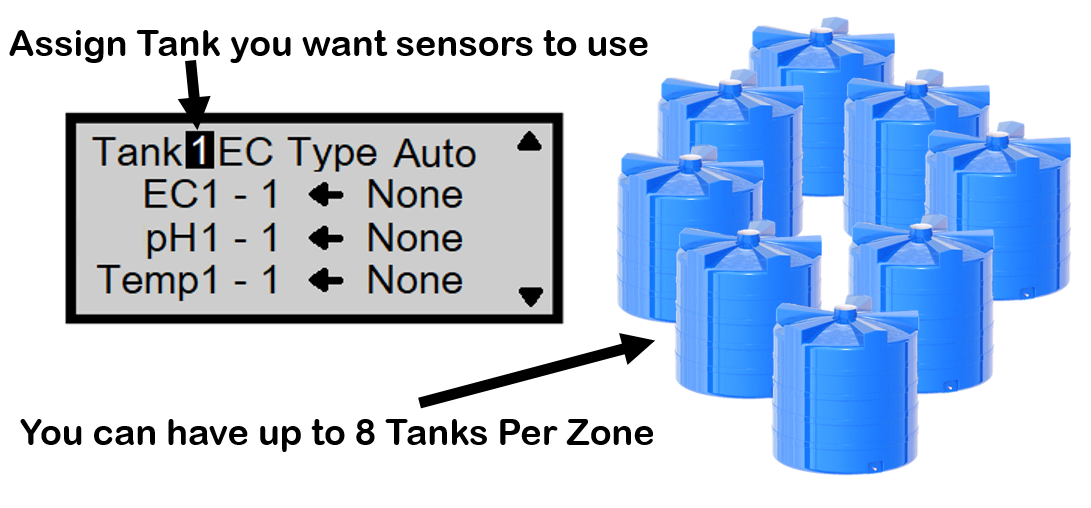

Now in the Sensor Setup Menu, the first option you have is to assign the Tank you wish the sensors to use.

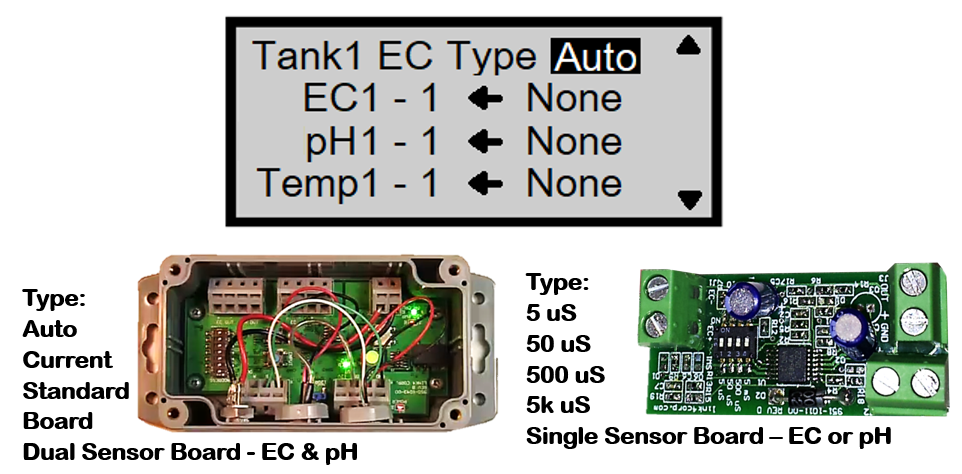

2nd option is TYPE - Auto is for our current standard EC/pH Board, other options are for our older models stand alone boards, but for now leave your choice to be Auto.
Now on following 3 mapping options

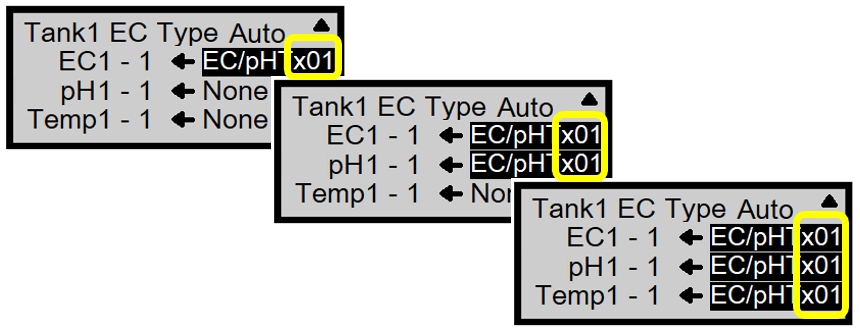

EC1 - 1 / pH1 - 1 / Temp -1, we need to reference the ASSIGNED NUMBER in expansion board setup.

Note the EC probe has a temp sensor built right in and can be used for temperature compensation.

Now to get to the Assigned Number you would do the following.

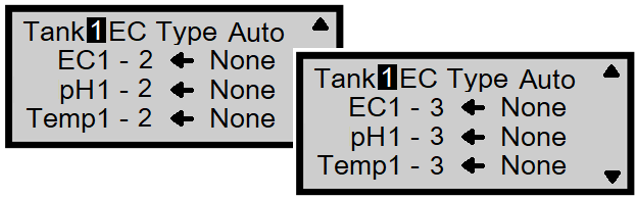

If you have additional boards on tank 1 that need setting up hitting next brings you to there screens
Note:  you can have 3 boards per Tank.

When finished hit back to the home screen to save your settings.

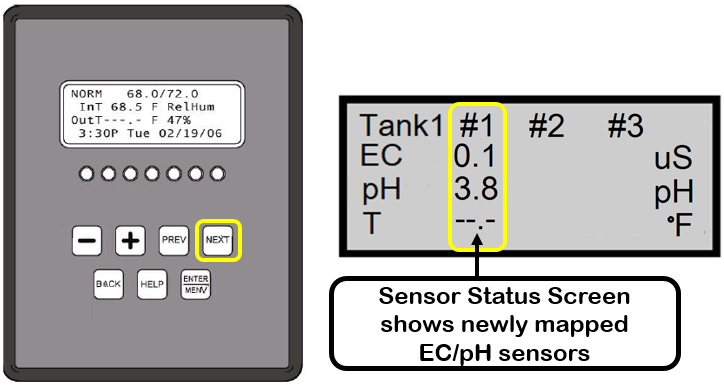

At the Home Screen, if you hit Next you can see your newly mapped EC/pH Sensors.

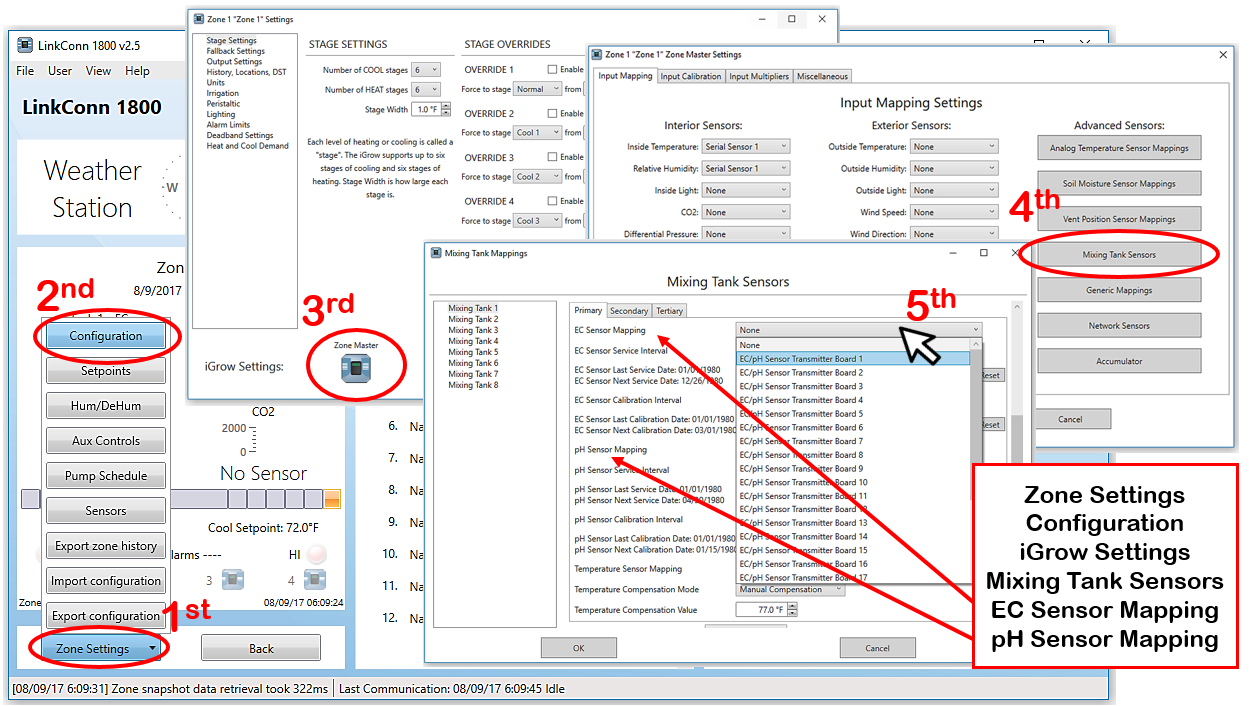

Here is a view of how you would set up your EC/pH Sensors with LinkConn 1800 Software which provides a simpler control view.
