iDoser - EC/PH Transmitter Board Installation Overview

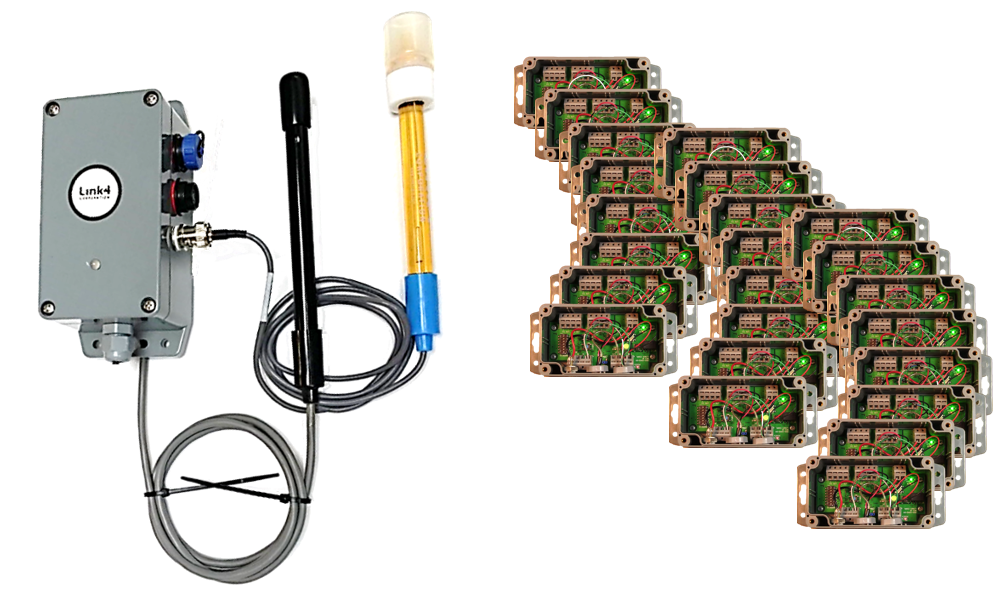

With the iDoser, you can have up to 24 Transmitter Boards interlinked, monitoring and injecting nutrients within your Fertigation system
To install the EC/PH Transmitter board you must first power down the controller.

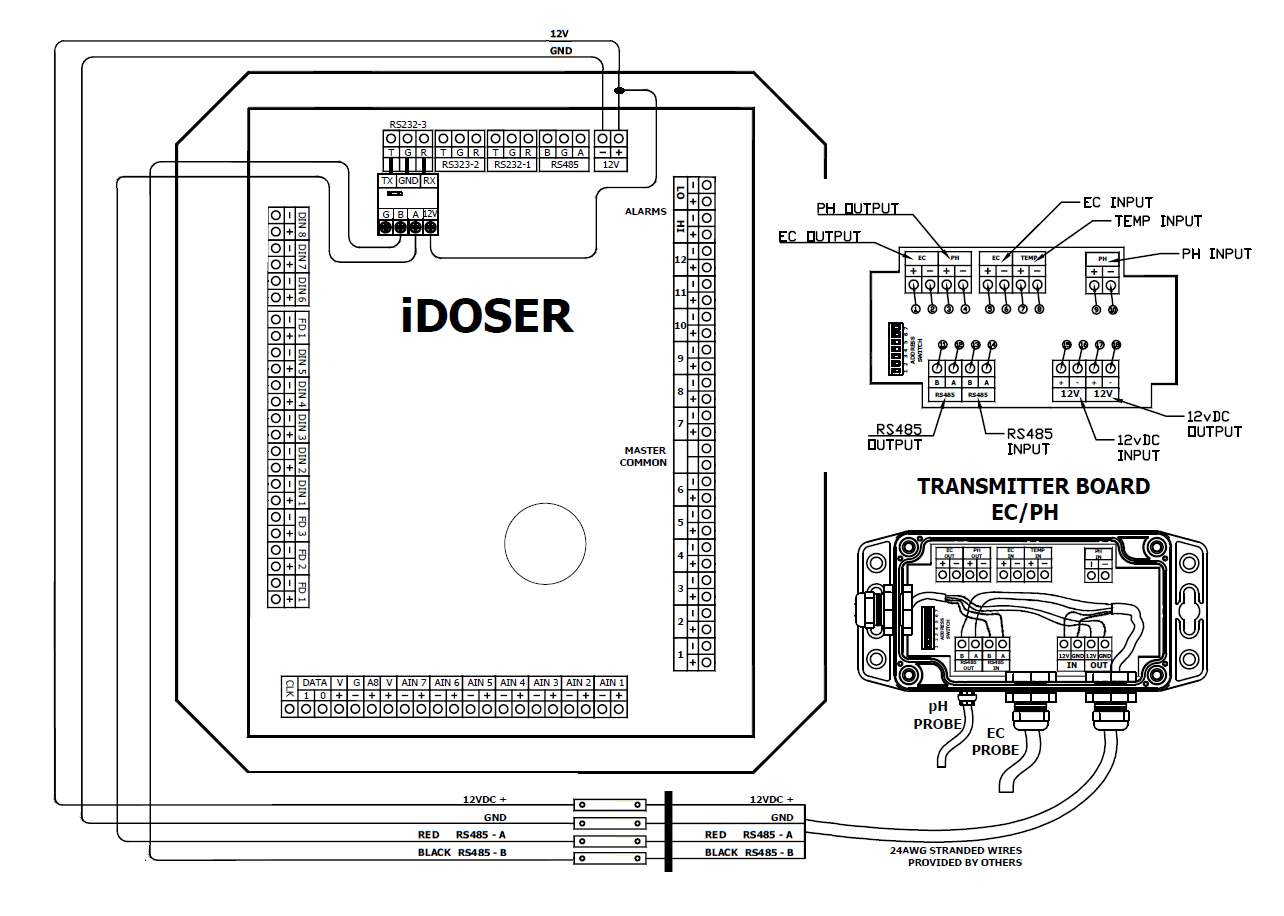

After that you need to run your wiring as follows:
Once you have wired up your Transmitter board, it is time to enable it within the controllers programming screens
ENABLING your EC/pH Transmitter Board
To program, simply hit Enter/Menu -> Expansion Settings -> Expansion Setup

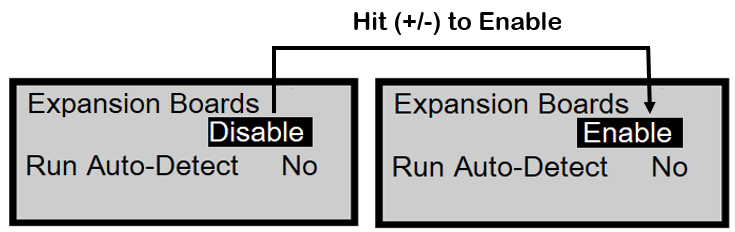

On the following screen, Disable should be highlighted, hit (+) or (-) to enable the board, then hit next till you get to next screen
On the following screen the Highlighted field next to Expansion Board can be changed by hitting (+) or (-). you want to make the type an EC/pH, and the address for board 1 leave it at 0.

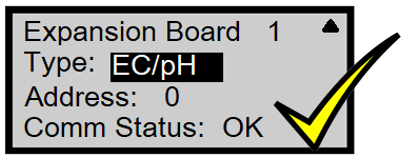

You next want to hit the BACK button 3 times to save changes, after that hit Enter/Menu 3 times to get you back to the following screen and make sure the Comm Status is OK.
