Expansion Settings

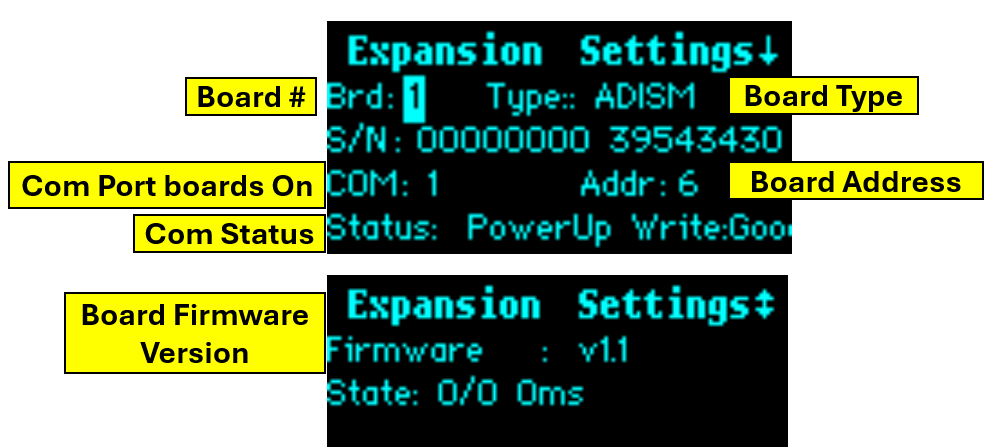

This screen shows the number of expansion boards that have scanned or addressed properly and are recognized by the Pearl control module.
There is one group of parameters for every expansion board, starting with Board 1.
Press Enter to go into edit mode. The edit cursor will be shown. Up and Down arrows will change to the different board #"s that are attached and allow them for viewing..
