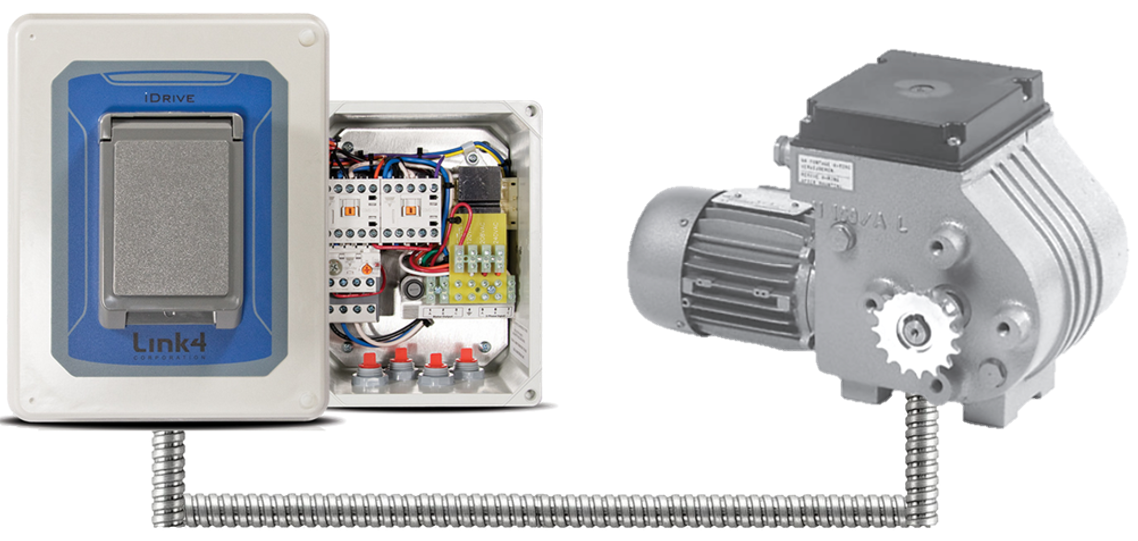

DeGier Single Phase 4 Wire 230VAC to iDrive 970-2314-xxM

DeGier Single Phase 4 Wire 230VAC to iDrive 970-2314-xxM

Attached is Motor controller diagram for De Gier Motors 230VAC single phase.

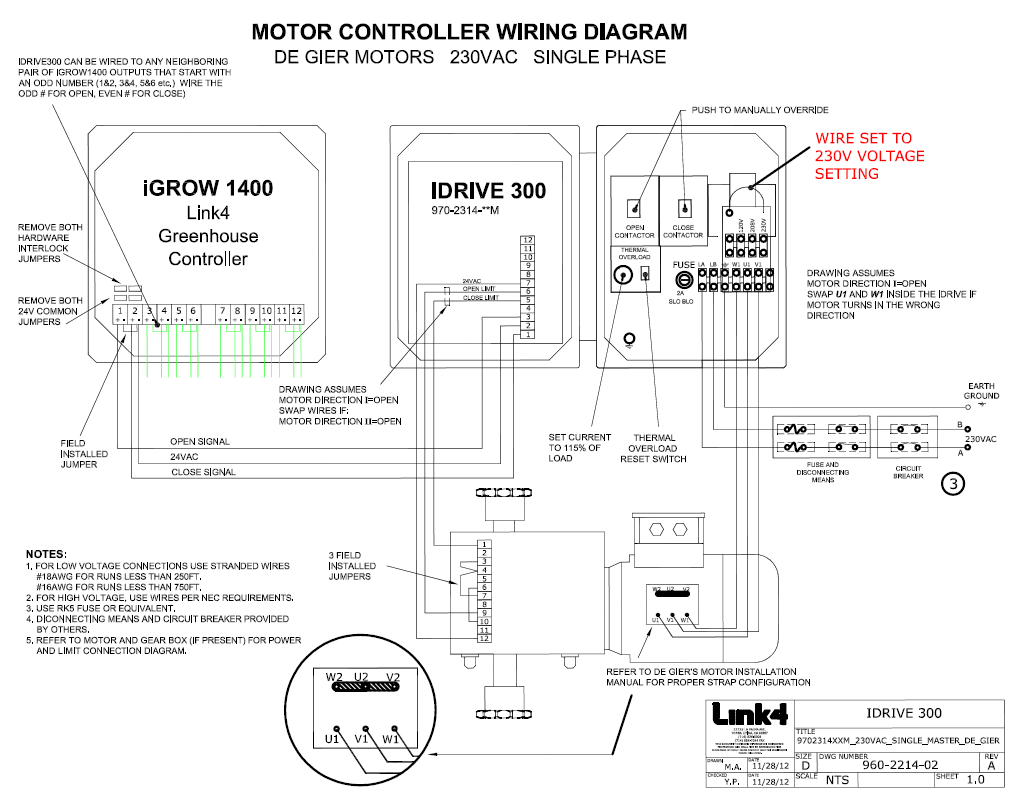

Here is the Diagram for wiring the Degier Single Phase 4 Wire to iDrive - 970-1214-XXM

As well as Link4 YouTube Links to assist you establishing connectivity between the devices.

Ridder Motors and Degier Motors use the same Limit switch setting process.

 Ridder Motors I - Overview & Wiring a Ridder Motor


Ridder Motors II - Setting Mechanical Limits


Ridder Corp Training Video 1 Setting Mechanical Limit Switches
