CO2 Equipment Programming

CO2 Equipment Programming

The Pearl™ can also be used to regulate the amount of CO 2 inside the greenhouse by controlling CO 2 pumps or injectors.
This mode is active between the Start and End times.

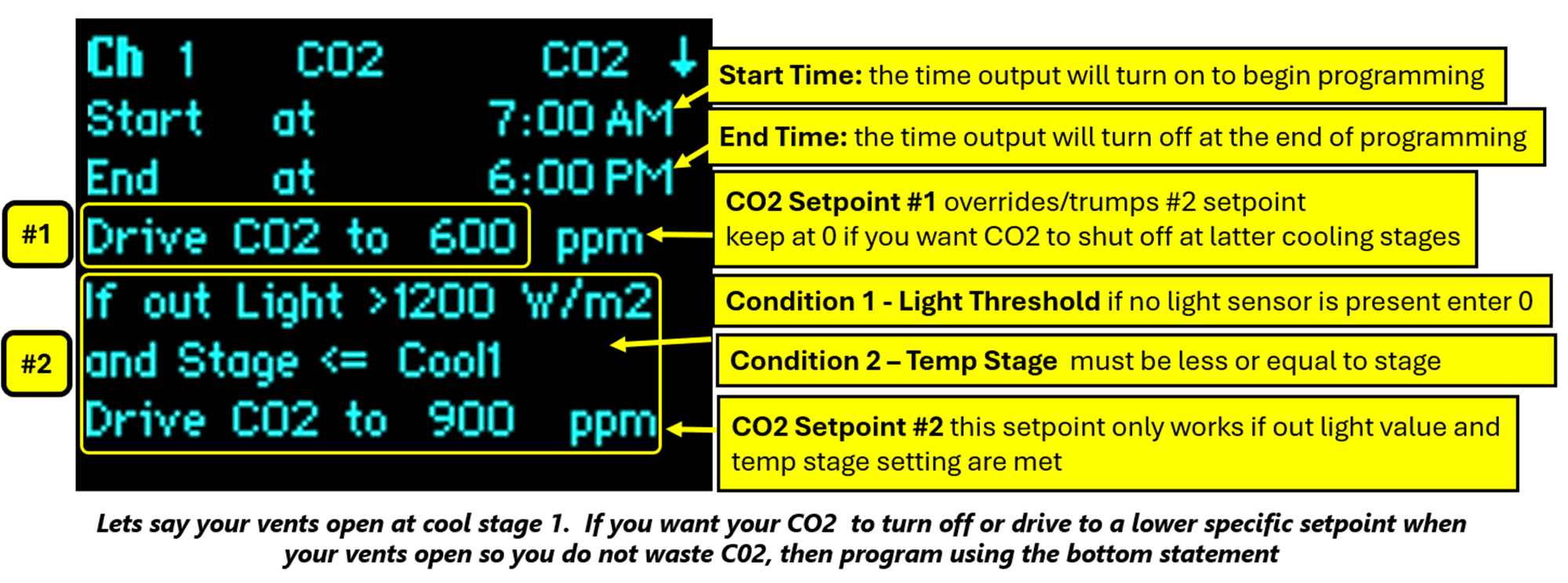

Co2 programming has 2 Setpoints,
Setpoint 1:  Drives the C02 levels to a specific threshold regardless if your vents are wide open and the light bright and above a certain value
Setpoint 2:  is a conditional statement that allows you to force the level to a certain level if the outside light is above a set threshold and the temperature stage is greater than or equal to
a preset level.

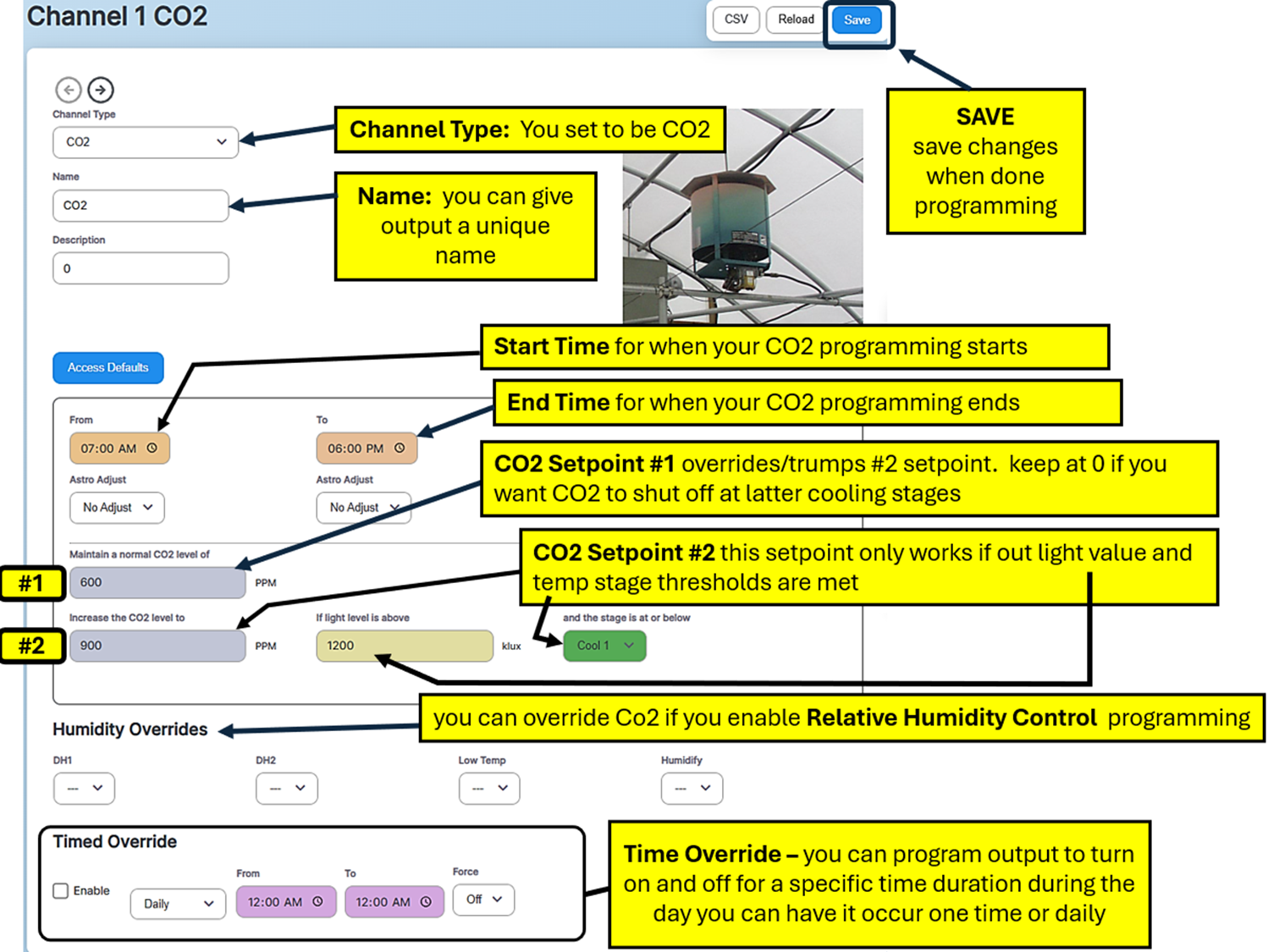

To program CO2 from Pearl Cloud Platform you would do the following:

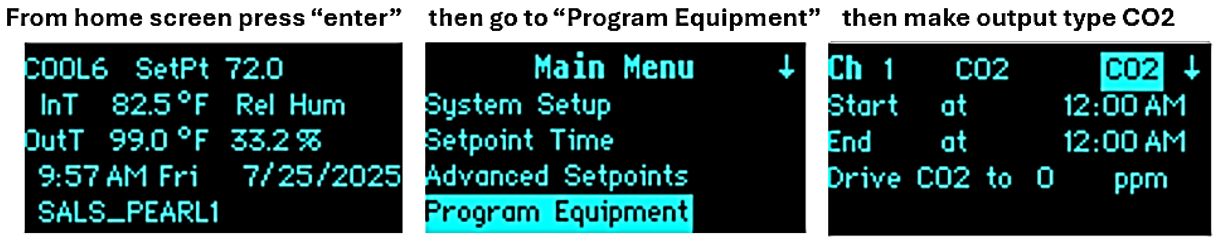

To program CO2 from Pearl Controller you would do the following:
